Clark S20 D - Page 83

Operator Controls 3-45
Section 3. Operator Compartment and Controls
4) Control Function
1. Forward / Reverse Switch (optional)
2. Horn Button
3. Auxiliary Function (optional)
- Vertical Mast Control Button
4. Auxiliary Function (optional)
- Clamp Lever Lock Button
(or Push Button)
5. Auxiliary Function (optional)
- Clamp Lever Lock Button (or Push Button)
(1) Vertical Mast Control Function (optional)
When pressing this button, and operating the tilt control lever, the
mast will be stop when at vertical position (90 degrees).
(2) Clamp Lever Lock Function (optional)
When not pressing this button and pushing the lever, the clamp is not
released.
When pressing this button and pushing the lever, the clamp is
released.

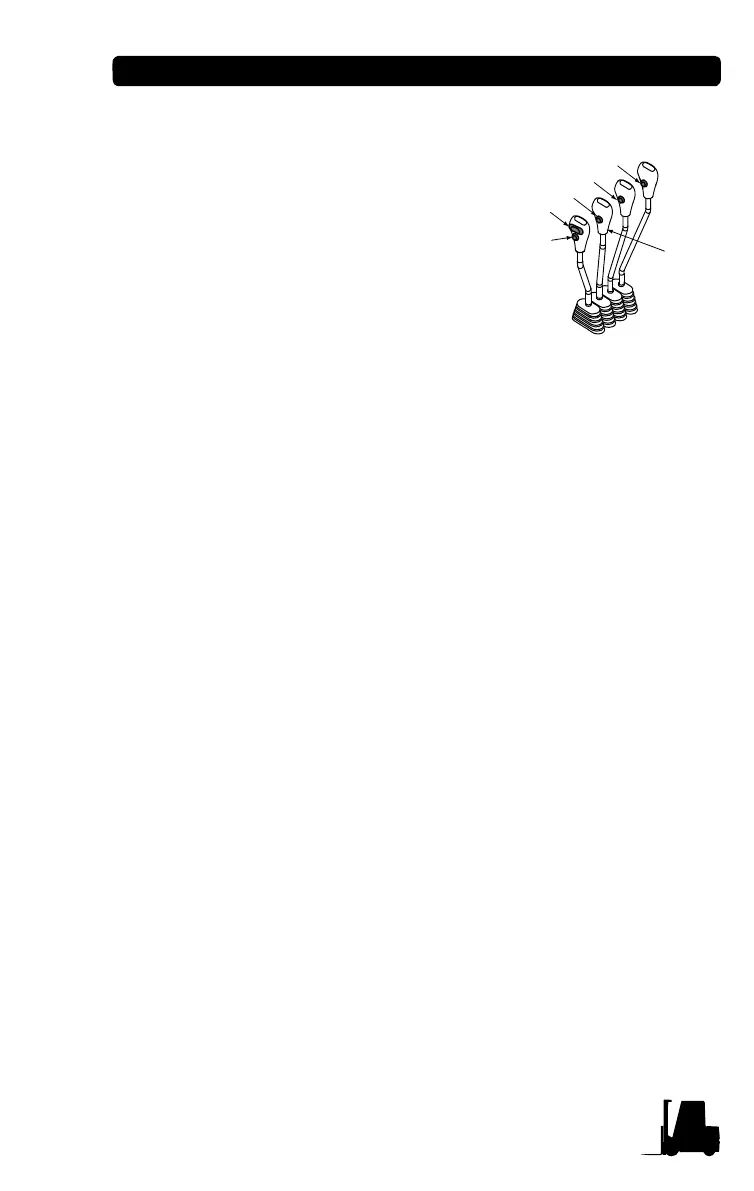

3
1
2
5
4
Tilt
control
lever
S20330277e
