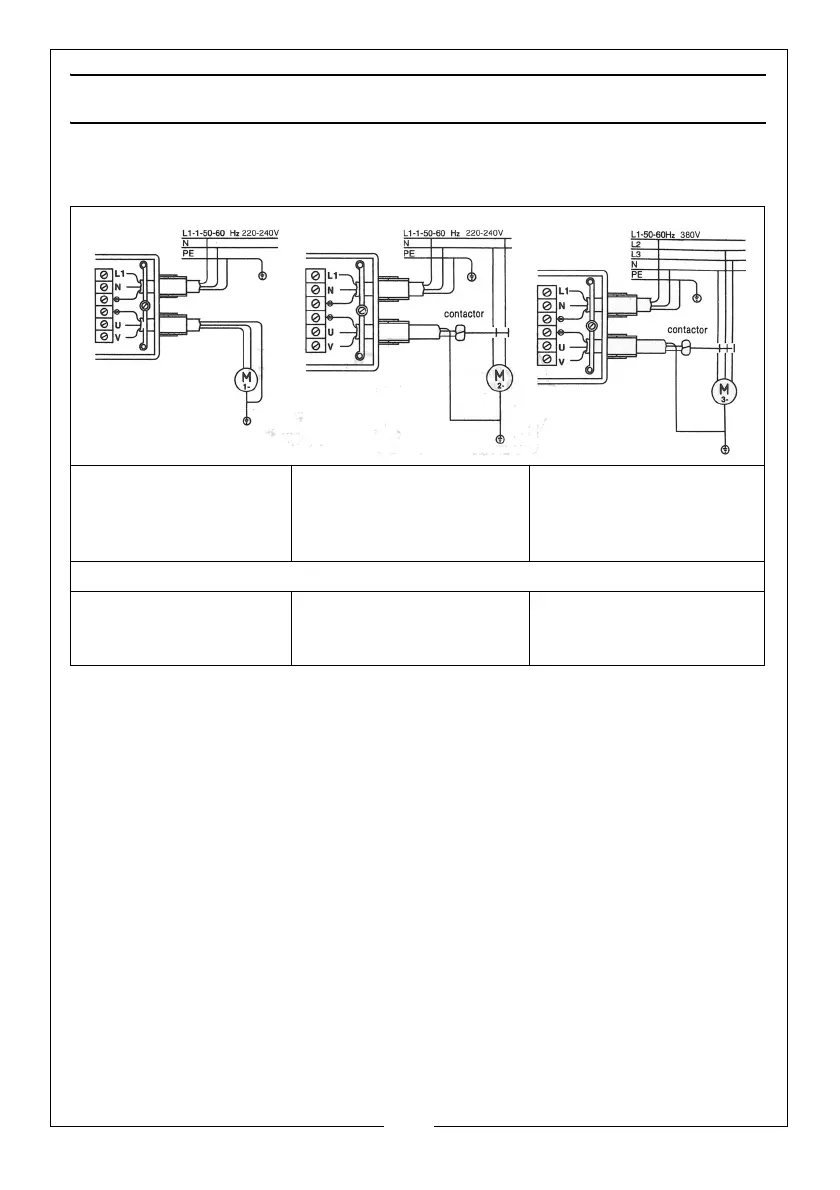

WIRING DIAGRAMS
FOR CONNECTING THE EPC800 TO DIFFERENT KINDS OF PUMPS MOTORS
Connection of single
phase 220V pumps
(up to 1.1 Kw).
Connection of single
phase 220V pumps over
1.1 Kw through a remote
control switch.
Connection of three
phase 380V pumps
through a remote control
switch.
SPECIFICATIONS FOR REMOTE CONTROL SWITCH
N/A
Minimum contacts
capacity of 4 Kw or 5.5 HP
approx. 220V
Minimum contacts
capacity of 4 Kw or 5.5
HP approx. 220V
