18

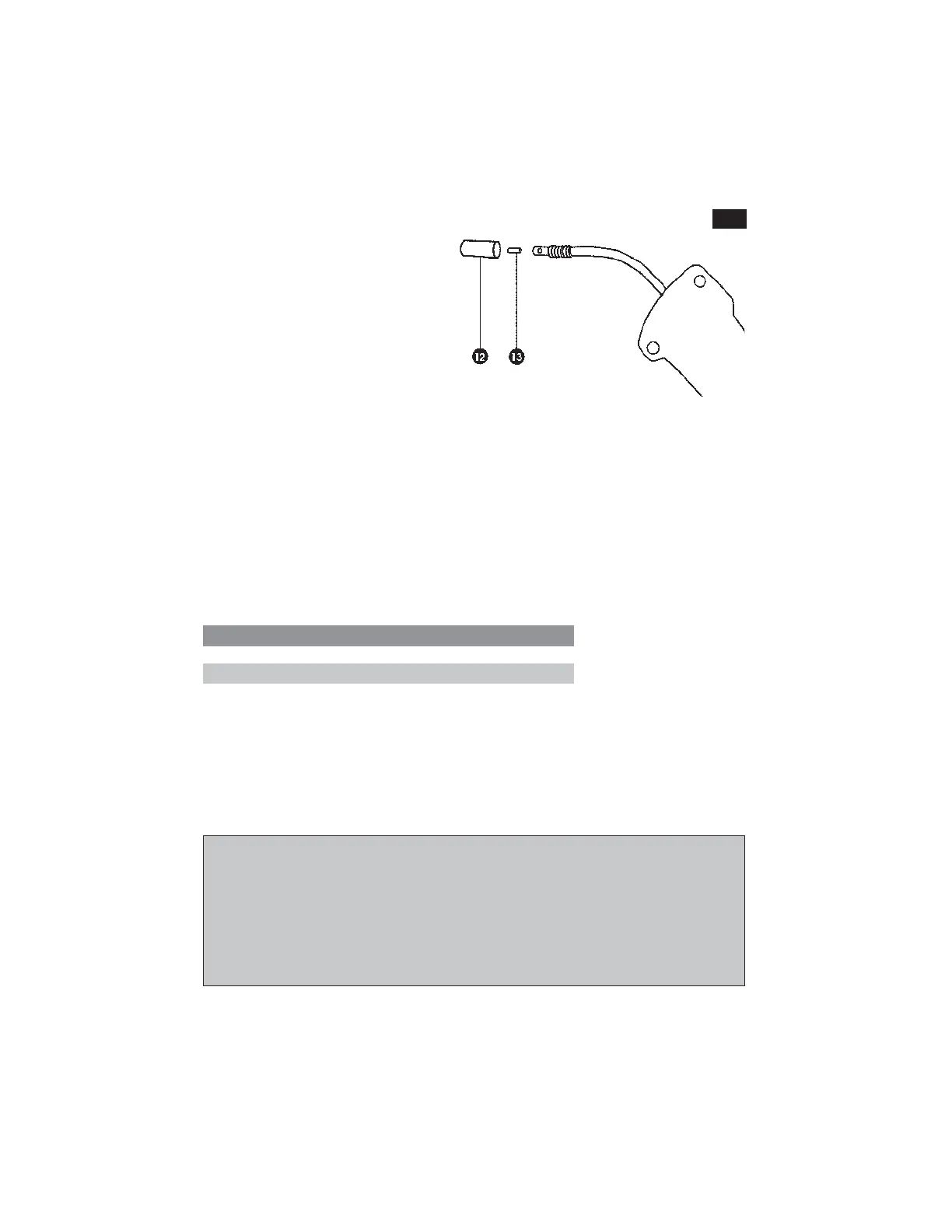

8. (Ref. Fig 4)
Unscrew and pull off the torch
shroud (12) by twisting it anti
clockwise, then unscrew the
contact tip (13).
Should any wire protrude from
the tip....pull it out completely
and discard.
Close the side panel of the
machine, plug into a 230V, 50HZ
outlet (or switch on isolator),
switch on the machine and
press the trigger.
The wire will feed through the hose and when it appears at the torch end,
release the trigger, switch off the machine and disconnect the machine from
the mains supply. Replace the contact tip and the torch shroud.
IMPORTANT:
Ensure the hose is kept straight during this operation, to assist the wire as it
is fed through to the wire liner and contact tip.
Fig.4
D. The Gas Supply
MIG 110E, 135TE and 151TE ONLY
NOTES:
These models require the gas bottle and regulator, to be fitted.
A mini gas bottle complete with gas regulator is provided. Should you prefer to use
larger gas cylinders, the appropriate gas regulator and fittings need to be
acquired. Your Clarke dealer will be happy to advise in this regard.
Always use the appropriate gas for the material being welded. Three types are
provided by Clarke International, as follows:
Carbon Dioxide (CO
2
) ......... For Mild Steel .................... Part No. 6000642
Argon .................................... For Aluminium ................... Part No. 6000661
CO2/Argon Mix .................... For Thin Sheet metal
Mild Steel/ Stainless ......... Part No. 6000660
Additionally a larger CO2 bottle is available ............... Part No. 6000643
Replacement Gas Regulator........................................... Part No. 8132000
