MYTHOS - MYTHOS
2
TECHNICAL INFORMATION

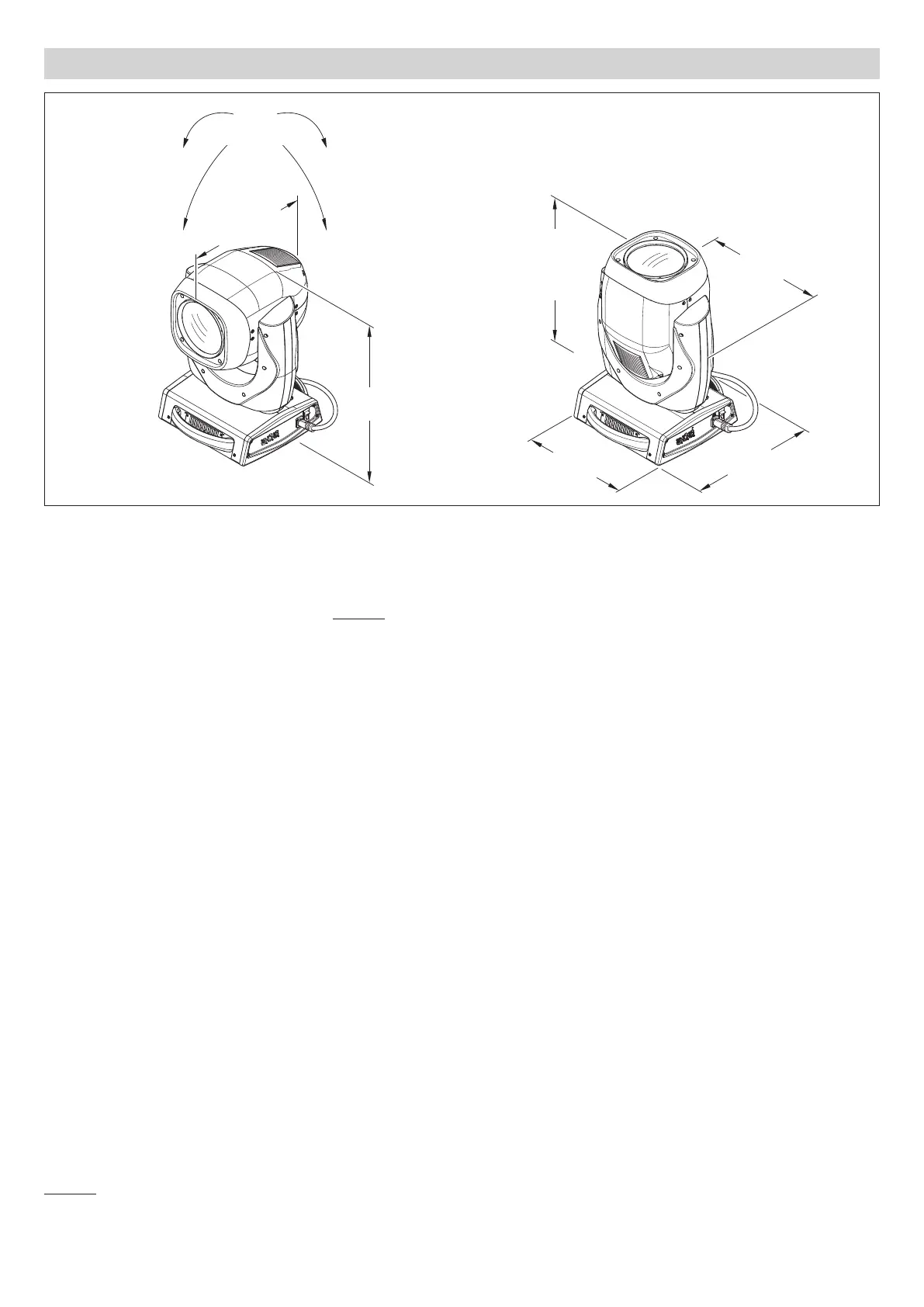

380
(14.96")
4
20
(
16.53")
396
(15.59")
L
ens IN
6
11 (24.05")
Lens OUT
628 (24.72")
5
70
(
22.44")
Lens OUT
427 (16.81")
Lens IN
408 (16.06")
L
ens IN&OUT
4
55 (17.91")
Power supplies
• 115/230V 50/60 Hz
• Automatic Power supply switching
Input power
700VA at 230V 50Hz
Total lumen output
Max 24.000 lumens
Light source Mythos
470W discharge lamp
- Type: Philips MSD Platinum 20RB - LAM00K
- Life: 1,500hrs
- Luminoux flux: 23.000 lm
- Cap by faston TM 250 (6.35 mm)
Light source Mythos2
440W discharge lamp
- Type: Osram SIRIUS HRI® 440W - LAM00J
- Life: 1,500hrs
- Luminoux flux: 23.000 lm
- Cap by faston Tyco 187 (4,8 mm)
Motors
20 stepper motors, operating with microsteps,
totally microprocessor controlled.
Channels
30/34 control channels.
Inputs
• DMX 512
• Ethernet
Moving body
Automatic repositioning of PAN and TILT after
accidental movement not controlled by control unit.
PAN
• Angle Rotation: 540°
• Fast speed: 3.517 sec
• Normal Speed: 4.038 sec
• Resolution PAN: 2.11°
• Resolution PAN FINE: 0.008°
Accuracy:
Resolution ± 0,3° (Range 0,6°)
TILT
• Angle Rotation: 244°
• Fast speed: 2.180 sec
• Normal Speed: 2.274 sec
• Resolution TILT: 0.96°
• Resolution TILT FINE: 0.004°
Accuracy:
Resolution ± 0,3° (Range 0,6°)
Noise level
50 dBA
Weight
32 Kg (70.54 lbs)
IP rating
• IP20
• Protected against the entry of solid bodies
larger than 12mm (0.47”).
• No protection against the entry of liquids.
Safety devices
• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of
overheating or failed operation of cooling
system.
Cooling
Forced ventilation with fans.
Body
• Aluminium structure with plastic cover.
• Two side handles for transportation.
• Device locking PAN and TILT mechanisms for
transportation and maintenance.
Working position
• Any Working Position
• Hanging system: with fast-lock omega clamps
(1/4 turn) on the base
Optics
• 157mm diam. front lens
• Electronic focusing for a perfectly sharp light
beam along its entire length
• Zoom ranging from 4,5° to 30,8° for fixed
gobos sharp focusing
• Zoom range from 6,5° to 47,3° for rotating
gobos sharp focusing
• BEAM mode with 2,5° aperture and “pipe” effect
Color system
• CMY color system based on 3 gradually fading
color wheels
• 11 color filters on three wheels
• 2 CT0 filters (3,200K and 2,500K) + 1 CTB filter
Effects section
• 2 gobo wheels
• Wheel with 6 HQ dichroic, indexable and
interchangeable rotating gobos.
• Interchangeable and variable rotation wheel
with 18+1 fixed metal gobos (including 6 beam
reducers).
• Selectable gobo-shake function
• Advanced Visual Effect Disc (Animation disc)
• 2 indexable and interchangeable rotating
prisms (8-facet and linear prism)
• Frost unit to soften the beam edge
• 0-100% Mechanical dimmer
• Mechanical shutter and adjustable speed
strobe effect
Control and programming
• 30/34 DMX 512 control channels
• DMX protocol signal: USITT DMX 512
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Gobo Indexing Resolution: 16 bit
• Focus Indexing Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input
and output
• Software upload through DMX input
Electronics
• Long life self-charging buffer battery.
• Pre-set macros.
• Function reset from control unit
• ON/OFF lamp control from the lighting desk.
• Function reset from the lighting desk.
• "AUTOTEST" function from menù
• ETHERNET Ready.
• Electronic monitoring with status error
• Cooling system monitoring
• DMX level monitoring on all channels
• Internal data transmission diagnostics
• Firmware Upgrade with no power
• Firmware upload from another fixture
