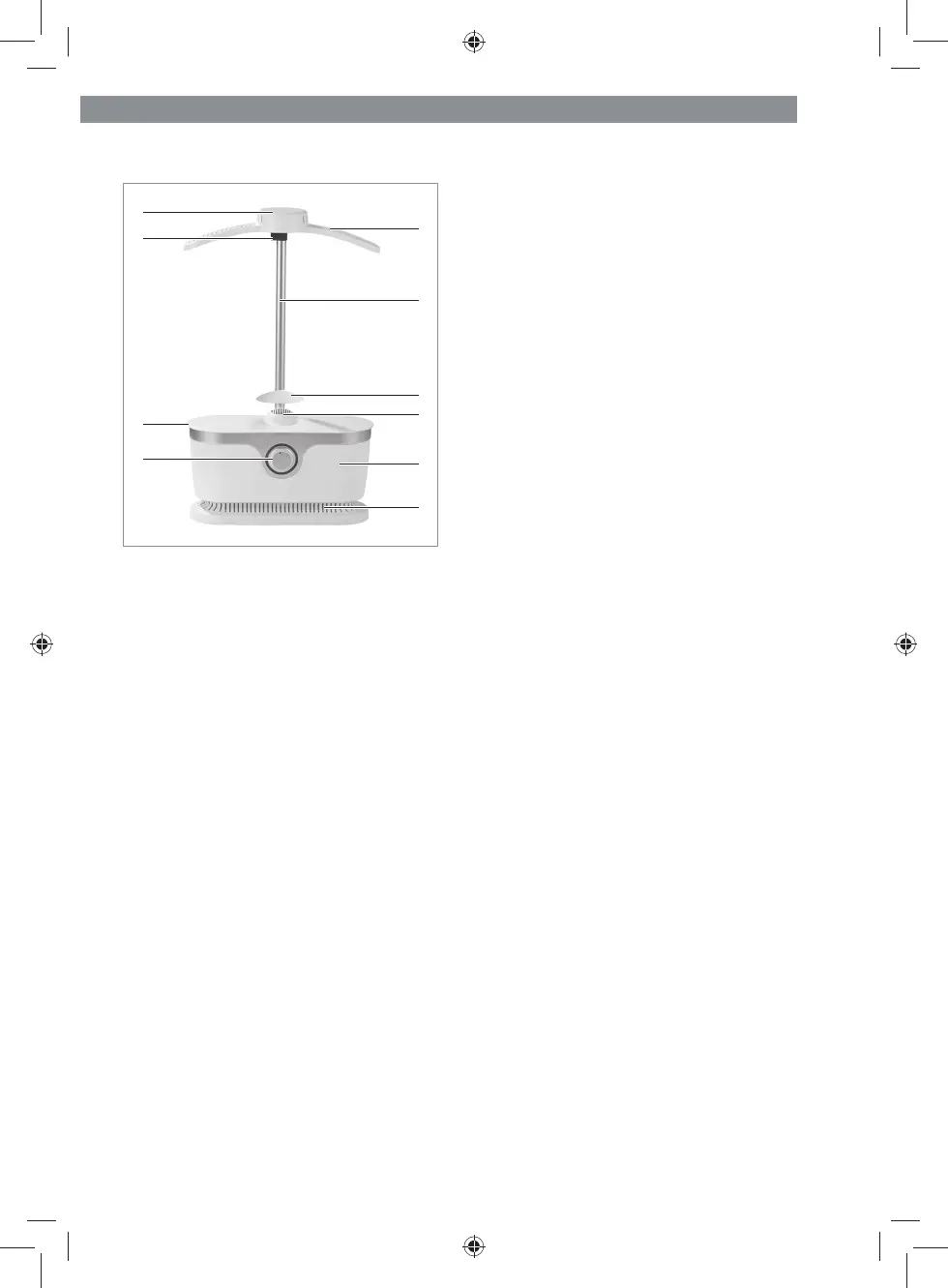

Device Overview
1 Hanger
2 Telescopic rod
3 Drip protection (premounted on the
telescopic rod)
4 Fan
5 Motor unit
6 Ventilation slots
7 Timer (5 – 30 minutes)
8 Mounting fl ange
9 Clip (for adjusting the height)
10 Collar section
Assembly
1. Plug the telescopic rod (2) into the recess on the top of the motor unit (5).
2. Place the hanger (1) onto the telescopic rod (2). When you do this, make sure that the
slight bend in the hanger (1) points forwards. The drip protection (3) must be located
directly above the fan (4). It prevents any water that may drip down from being able
to get into the fan (4).
3. Attach the nylon balloon:
– Pull it over the hanger (1). When you do this, make sure that the side with the hole
line points forwards.
– Pull the small elastic cord at the top over the collar section (10) on the hanger (1).
– Pull the large elastic cord at the bottom over the mounting fl ange (8).
The device is disassembled in the reverse order.
