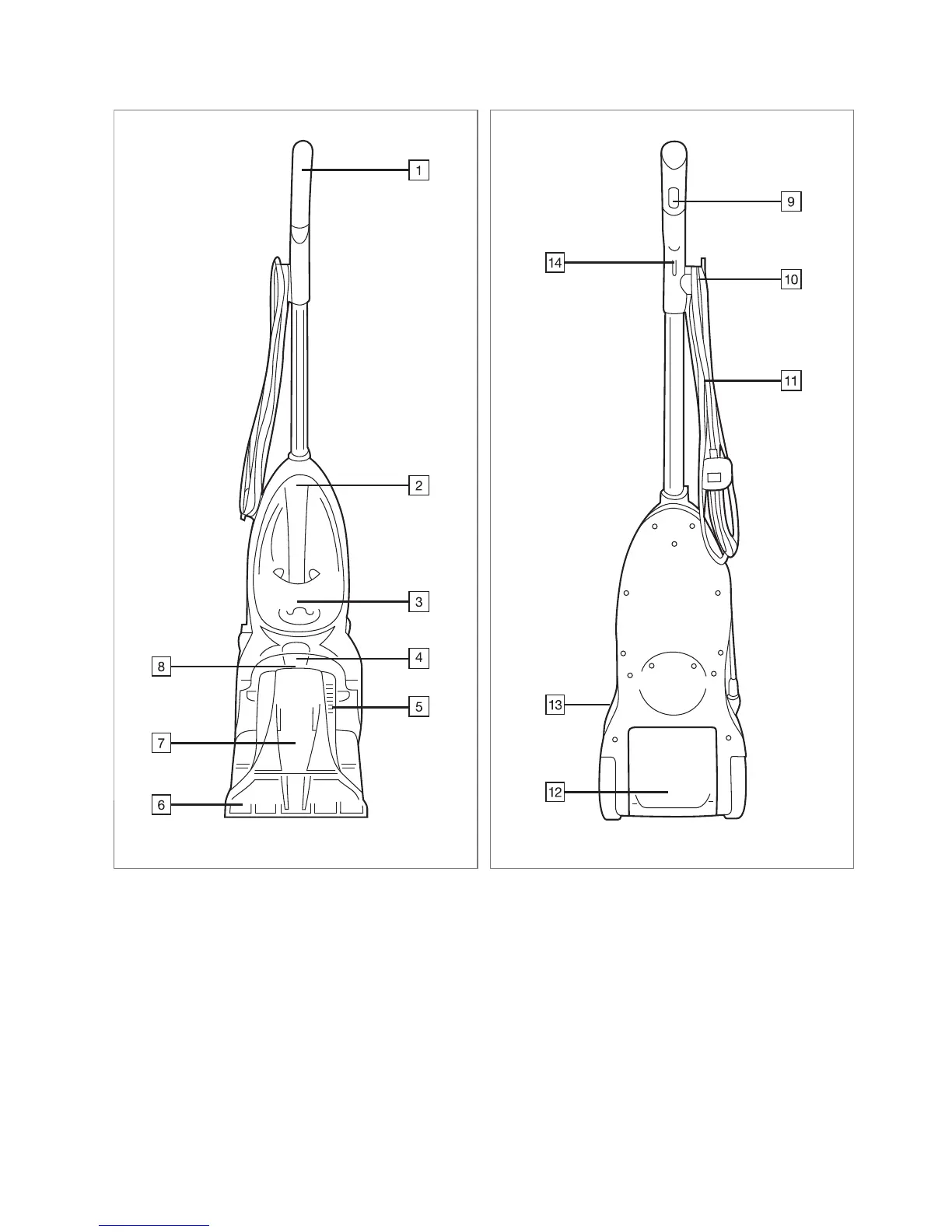

Device overview
Front side Back side
1. Handle
2. Release button for the
fresh water tank
3. Fresh water tank
4. Release button for the dirty water tank
5. Exhaust fi lter
6. Suction nozzle and brush (behind it)
7. Dirty water tank
8. Handle of the dirty water tank
9. Button for emitting water and/or cleaning
solution
10. Hook for winding up the cord
11. Mains cord
12. Pedal for tilting the handle
13. On/Off Switch
14. Cord holder
