Section A – Specifications

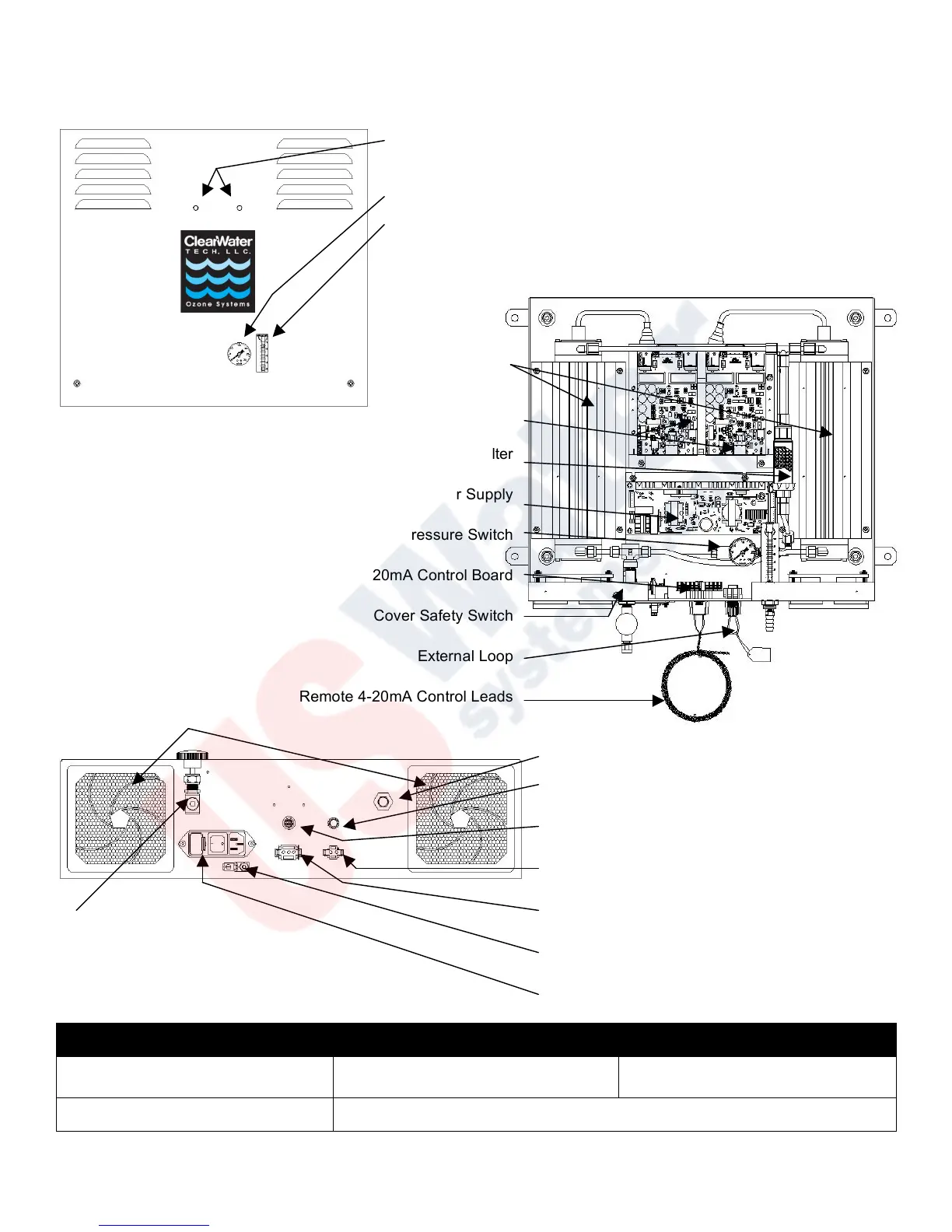

Shown: ClearWater Tech CD2000P Ozone Generator
23” h x 20.25” w x 5.5” d, 49 lbs
26.5g/h, 6% @ 12 scfh, 10PSI
PSA Oxygen
Mounting Hole Measurement
Reaction Chambers
Drive Board and
Drive Transformer - XFMR (under boards)
Inline Particulate Filter
Power Supply
Pressure Switch
4-20mA Control Board
Cover Safety Switch
External Loop
Remote 4-20mA Control Leads
Air Prep Inlet
Manual Ozone Output Adjustment Knob
Main Power Light
External Loop Connector
Remote 4-20mA Connector
Bonding/Ground Lug
Power Entry Module – OFF/ON
Switch, Cord Input, Fuse Carrier
Ozone Outlet Needle Valve
Ozone Output LED’s
Pressure Gauge
CFH Gauge
