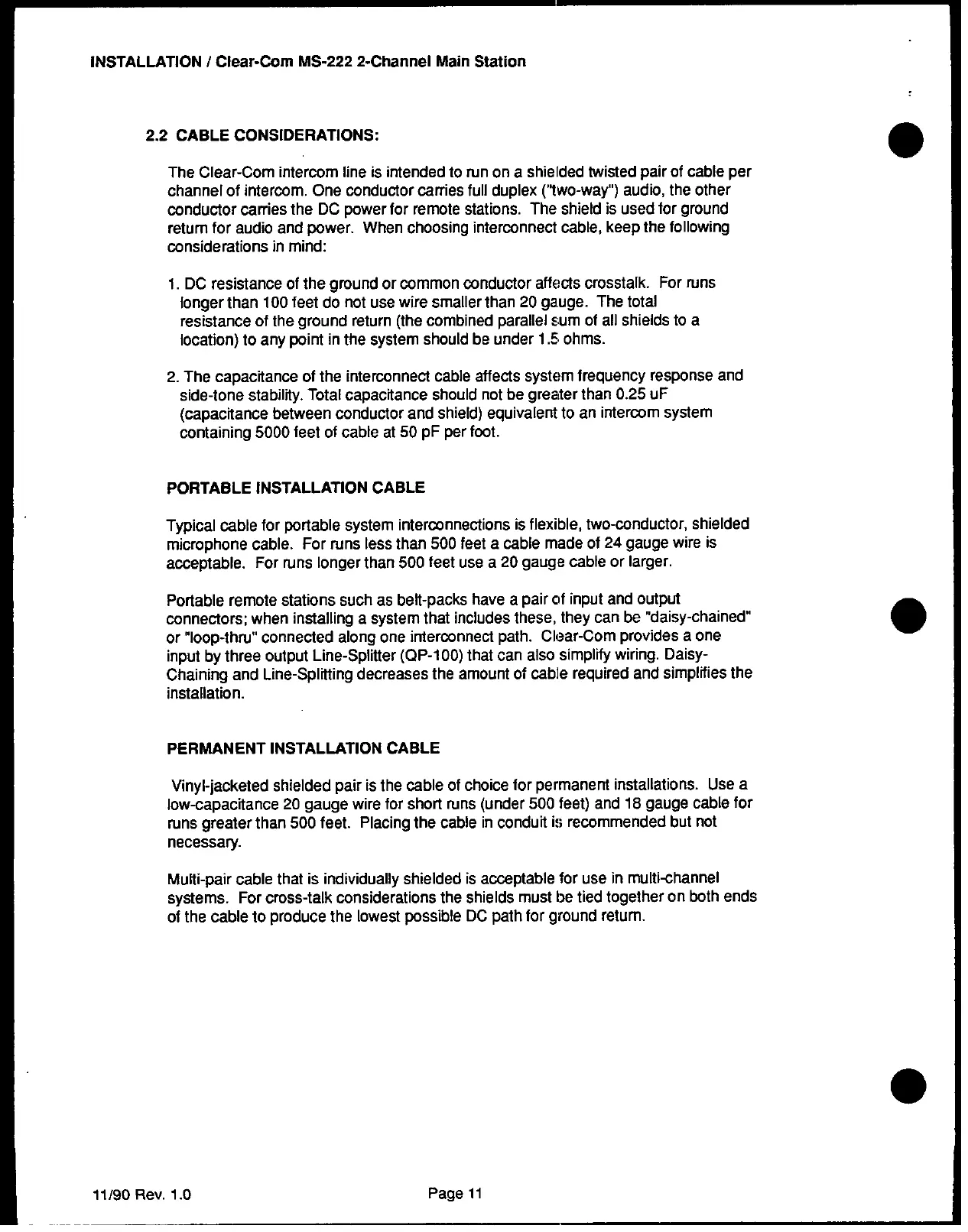

INSTALLATION
/
Clear-Com
MS-222
2-Channel
Main
Station
2.2
CABLE
CONSIDERATIONS:
The
Clear-Com
intercom
line
is
intended
to
run
on
a
shielded twisted
pair
of
cable
per
channel
of
intercom. One
conductor
carries
full
duplex
("two-way")
audio,
the
other
conductor
carries
the
DC
power
for
remote
stations.
The
shield
is
used
for
ground
return
for
audio
and
power.
When
choosing
interconnect
cable,
keep
the
following
considerations
in
mind:
1.
DC
resistance
of
the
ground
or
common
conductor
affects
crosstalk.
For
runs
longer
than
1
00
feet
do
not
use
wire
smaller
than
20
gauge.
The
total
resistance
of
the
ground
return
(the
combined
parallel
sum
of
all
shields
to
a
location)
to
any
point
in
the
system
should
be
under
1.5
ohms.
2.
The
capacitance
of
the interconnect
cable
affects
system
frequency
response
and
side-tone
stability.
Total
capacitance
should
not
be
greater
than
0.25
uF
(capacitance
between
conductor
and
shield)
equivalent
to
an
intercom
system
containing
5000
feet
of
cable
at
50
pF per
foot.
PORTABLE
INSTALLATION
CABLE
Typical
cable
for
portable
system
interconnections
is
flexible,
two-conductor,
shielded
microphone
cable.
For
runs
less
than
500
feet
a
cable
made
of
24
gauge
wire
is
acceptable.
For
runs
longer
than
500
feet
use
a
20
gauge
cable or
larger.
Portable
remote
stations
such
as
belt-packs
have
a
pair
of input
and
output
connectors;
when
installing
a
system
that
includes
these,
they
can
be
"daisy-chained"
or
"loop-thru"
connected
along
one
interconnect
path.
Clear-Com provides
a
one
input
by
three
output
Line-Splitter
(OP-1
00)
that
can also
simplify wiring.
Daisy-
Chaining
and
Line-Splitting
decreases
the
amount
of
cable
required
and
simplifies
the
installation.
PERMANENT
INSTALLATION
CABLE
Vinyl-jacketed
shielded
pair
is
the
cable
of
choice
for
permanent
installations.
Use
a
low-capacitance
20
gauge
wire
for
short
runs (under 500
feet)
and
1
8
gauge
cable
for
runs
greater
than
500
feet.
Placing
the
cable
in
conduit
is
recommended
but
not
necessary.
Multi-pair
cable
that
is
individually
shielded
is
acceptable for
use
in
multi-channel
systems.
For
cross-talk considerations
the
shields
must
be
tied
together
on
both
ends
of
the
cable to
produce
the
lowest
possible
DC
path
for
ground
return.
11/90
Rev.
1.0
Page
11
