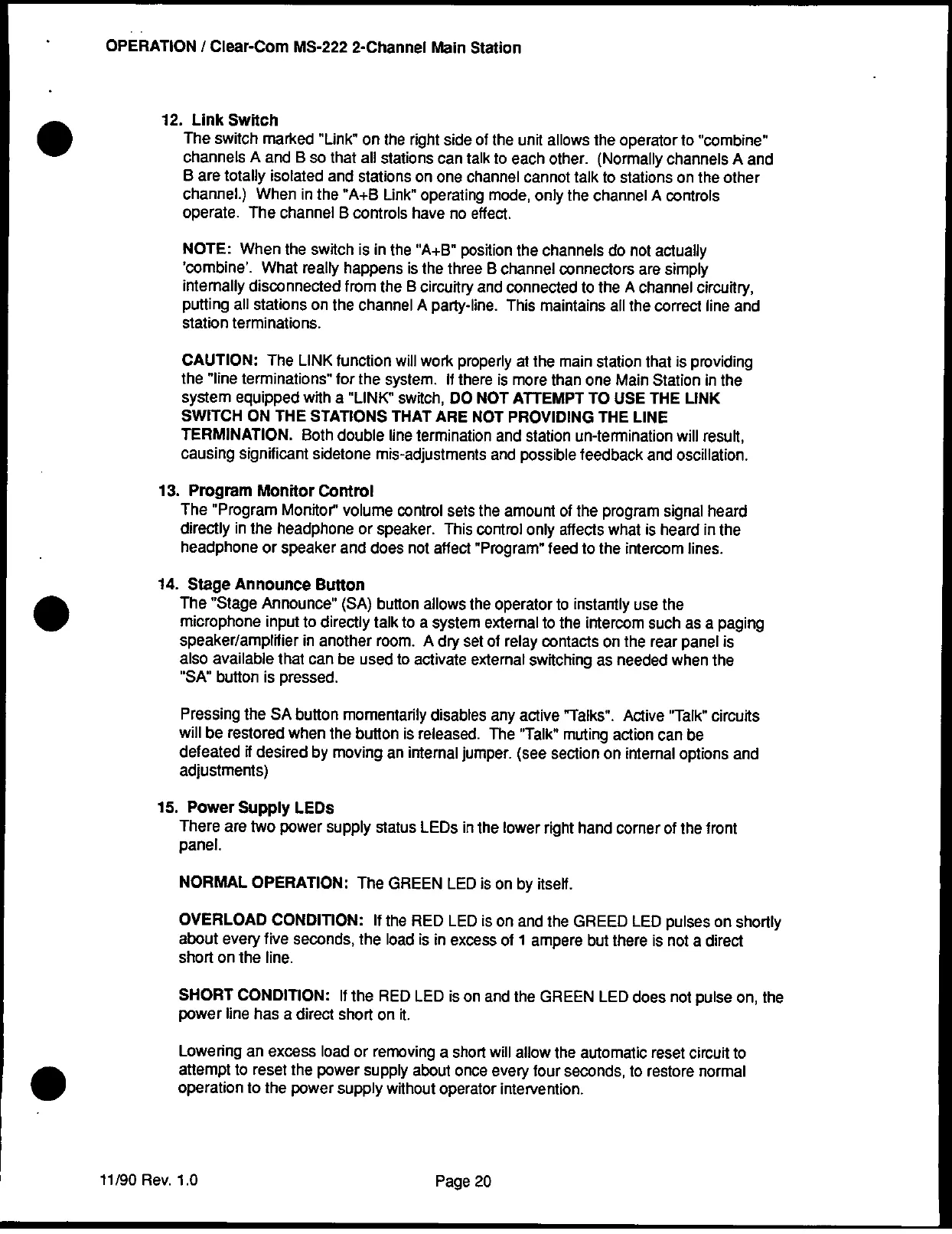

OPERATION
/
Clear-Com
MS-222
2-Channel
Main
Station
12.
Link
Switch
The
switch
marked
"Link"
on
the right
side
of
the
unit
allows
the
operator
to
"combine"
channels
A
and
B
so
that
all
stations
can
talk
to
each
other.
(Normally
channels
A
and
B
are
totally
isolated
and
stations
on
one
channel
cannot
talk
to
stations
on
the
other
channel.)
When
in
the
"A+B
Link"
operating
mode,
only
the
channel
A
controls
operate.
The
channel
B
controls
have
no effect.
NOTE:
When
the
switch
is
in
the
"A+B"
position
the
channels
do
not
actually
'combine'.
What
really
happens
is
the
three
B
channel
connectors
are
simply
internally
disconnected
from
the
B
circuitry
and
connected
to
the
A
channel
circuitry,
putting
all
stations
on
the
channel
A
party-line.
This
maintains
all
the correct
line
and
station
terminations.
CAUTION:
The
LINK
function
will
work
properly
at
the
main
station
that
is
providing
the
"line
terminations"
for
the
system.
If
there
is
more
than
one
Main
Station
in
the
system
equipped
with
a
"LINK"
switch,
DO
NOT
ATTEMPT
TO
USE
THE
LINK
SWITCH
ON
THE
STATIONS
THAT
ARE
NOT
PROVIDING
THE
LINE
TERMINATION.
Both
double
line
termination
and
station
un-termination
will
result,
causing
significant
sidetone
mis-adjustments
and
possible
feedback
and
oscillation.
13.
Program
Monitor
Control
The
"Program
Monitor"
volume
control
sets
the
amount
of
the
program
signal
heard
directly
in
the headphone
or
speaker.
This
control
only
affects
what
is
heard
in
the
headphone
or speaker
and
does
not
affect
"Program"
feed
to
the
intercom
lines.
14.
Stage
Announce
Button
The
"Stage
Announce"
(SA)
button
allows
the
operator
to
instantly
use
the
microphone
input
to
directly
talk
to
a
system
external
to
the
intercom
such
as
a
paging
speaker/amplifier
in
another
room.
A
dry
set
of
relay
contacts
on
the
rear
panel
is
also
available
that
can
be
used
to
activate
external
switching
as
needed
when
the
"SA"
button
is
pressed.
Pressing
the
SA
button
momentarily
disables
any
active
"Talks".
Active
"Talk"
circuits
will
be
restored
when
the
button
is
released.
The
"Talk"
muting
action
can
be
defeated
it
desired
by
moving
an
internal
jumper.
(see
section
on
internal
options
and
adjustments)
15.
Power
Supply
LEDs
There
are
two power
supply
status
LEDs
in
the lower
right
hand
corner
of
the
front
panel.
NORMAL
OPERATION:
The
GREEN
LED
is
on
by
itself.
OVERLOAD
CONDITION:
If
the
RED
LED
is
on
and
the
GREED
LED
pulses
on
shortly
about
every
five
seconds,
the
load
is
in
excess
of
1
ampere
but
there
is
not
a
direct
short
on
the
line.
SHORT
CONDITION:
If
the
RED
LED
is
on
and
the
GREEN
LED
does
not
pulse
on,
the
power
line
has
a
direct
short
on
ft.
Lowering
an
excess
load
or
removing
a
short
will
allow
the
automatic
reset
circuit
to
attempt
to
reset
the
power
supply
about
once
every
four
seconds,
to
restore
normal
operation
to
the
power
supply
without
operator
intervention.
11/90
Rev.
1.0
Page
20
