User manual / Bedienungsanleit ung
8 © clearaudio electronic GmbH, 2018/ 12
Mounting the aluminum clamping ring on a non-Clearaudio turntable:
To install the aluminium clamping ring on the turntable chassis, you will need to drill the required
holes. Please refer to the drilling template shown below (Pic. 7) for the measurements to mark the
exact drilling holes.
Please be informed, that this draw ing is not suitable for use as a mounting tool.
Use a 3.3mm HSS drill bit , t hen cut an M4 t hread int o each hole using an appropriat e t ap cut t ing
tool.
If the turntable chassis material is not suitable for cutting threads, please use a 4.5mm HSS drill bit
to drill the holes through the material. In this case use standard bolts and nuts to x the arm base.

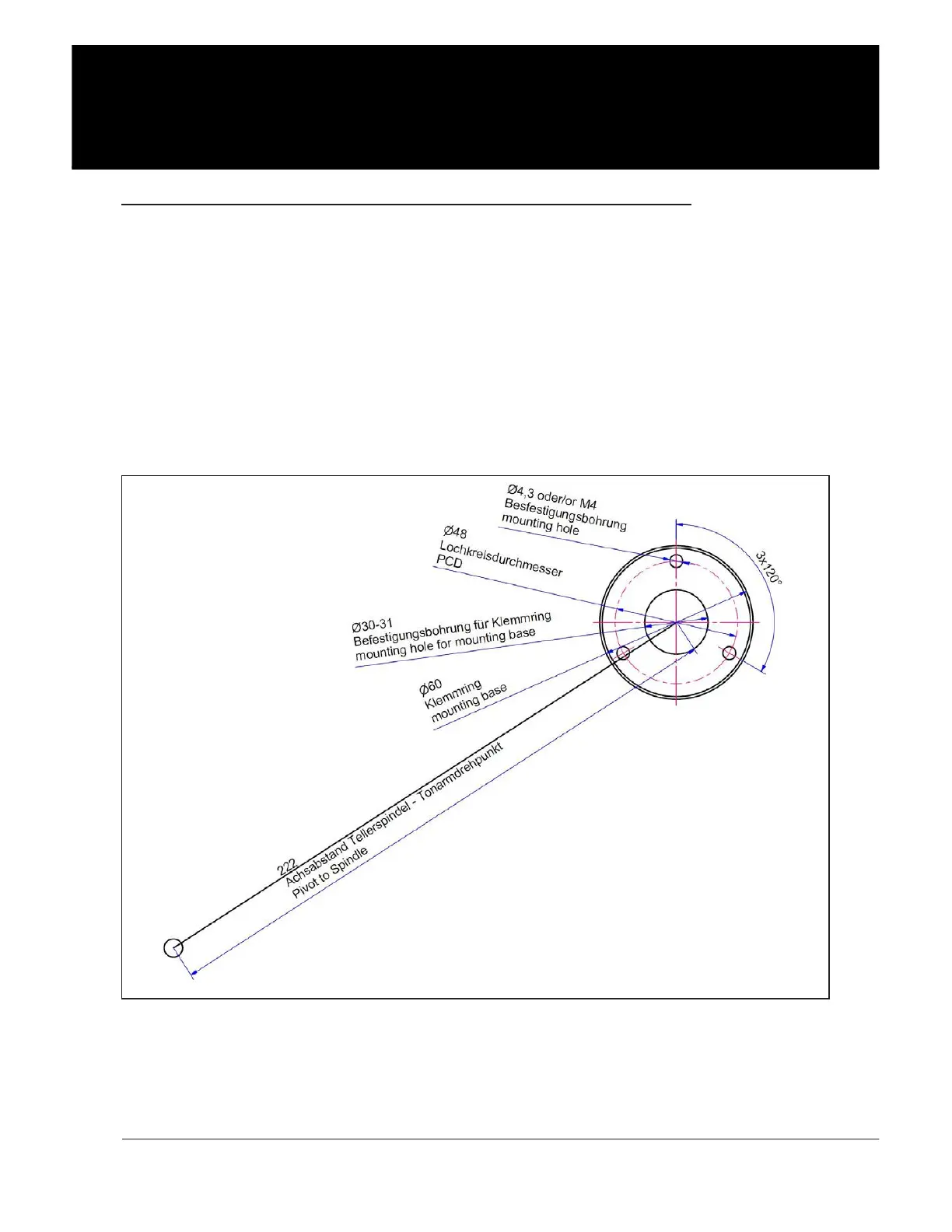

Pic. 7: Mounting the aluminium clamping ring on a non-Clearaudio turntable
