ClearStream 1000NCD - Page 11

INLET
OUTLET
CLEARSTREAM
CLEARSTREAM
CLEARSTREAM
CLEARSTREAM

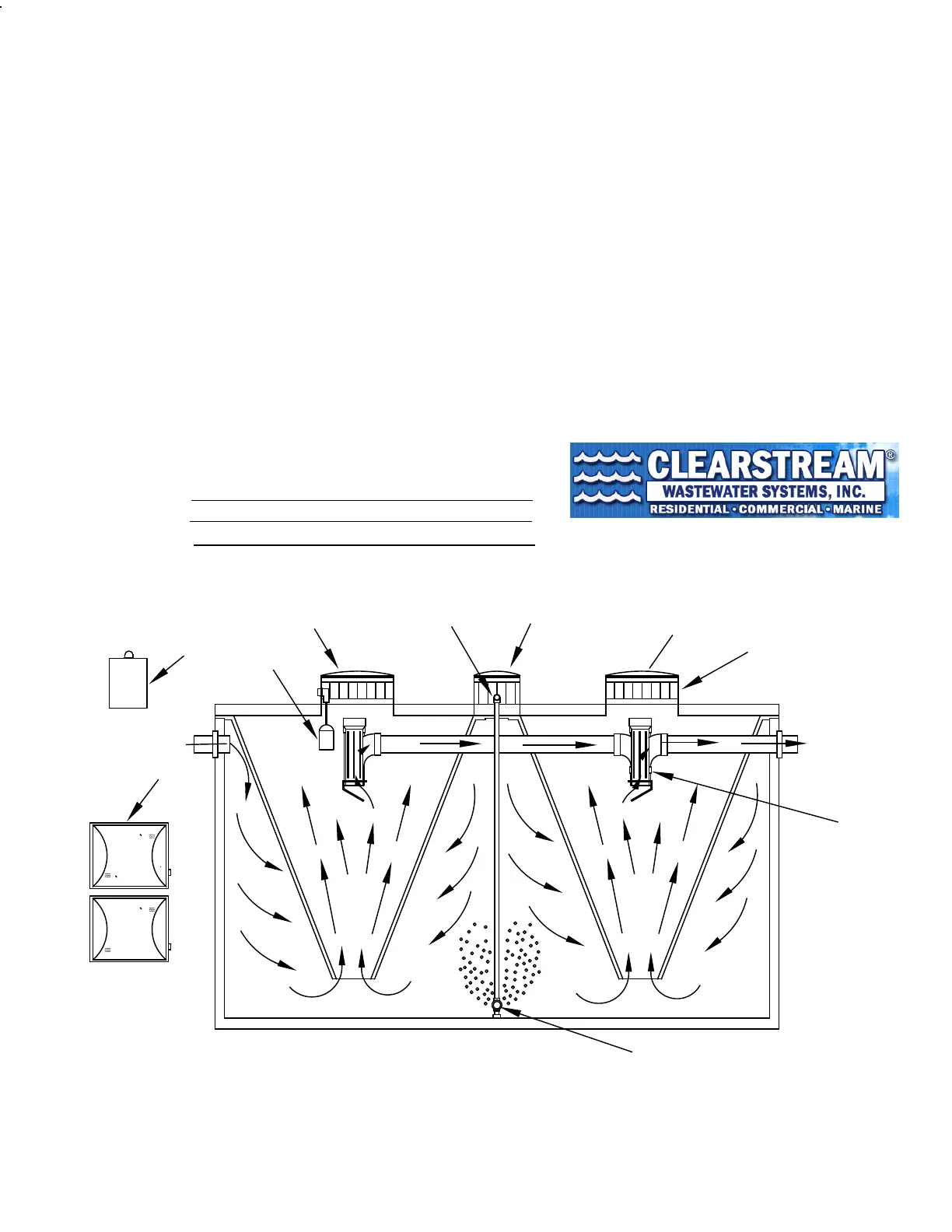

PARTS LIST AND FLOW DIAGRAM
PART NAME: PART NUMBER:
1. AIRLINE ASSEMBLY CS-101
2. HIGH LEVEL ALARM CS-102
3. LINEAR COMPRESSOR CS-103 (ET6, FLL)
4. AERATOR POLYETHYLENE HOUSING CS-106
5. NAMEPLATE CS-107
6. 20" ACCESS COVER CS-108
7. 12" ACCESS COVER CS-108A
8. FLOW CONTROL WEIR CS-111
9. DIFFUSER CS-113
10. ALARM PANEL CS-114
11. PLASTIC 20" RISER EXTENSION CS-116A (2"0, B (6"), C (12")
COMPONENT PARTS MAY BE OBTAINED
FROM YOUR LOCAL SERVICING DEALER
P.O. BOX 705 BEAUMONT, TX 77726 800-586-3656
OR
1
5
2
3, 4
9
8
11
7
6
CLEARSTREAM
10
.
.
.
.
NCD 1000-1500 SERIES OWNERS MANUAL PAGE 10
