13
Step 10

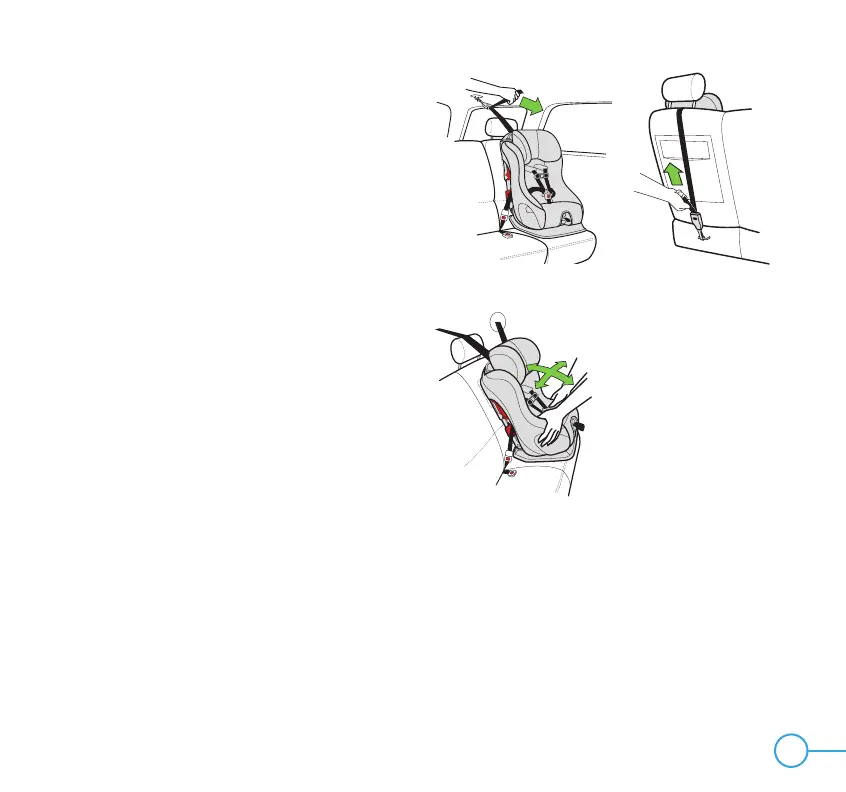

Attach Tether Hook to vehicle top tether
anchor as shown in Figure 20 or Figure 21
and pull firmly on free end of strap until Top
Tether is snug.
Refer to vehicle owner’s manual for
recommended Top Tether routing and
identification of top tether anchor point.
St ep 11
Check for secure installation. Gripping car
seat at top of armrests, pull car seat front
to back and left to right to check for secure
installation as shown in Figure 22. Vehicle
belt and Top Tether must stay tight and child
restraint should not move more than 2.5 cm
(1 in.) in any direction.
• If vehicle belt does not stay tight or
car seat cannot be securely installed,
try a different vehicle seating location
or install using UAS. See “Installing
Forward-Facing Car Seat With UAS”
in your car seat manual.
Figure 20
Figure 22
Figure 21
