17
Step 13

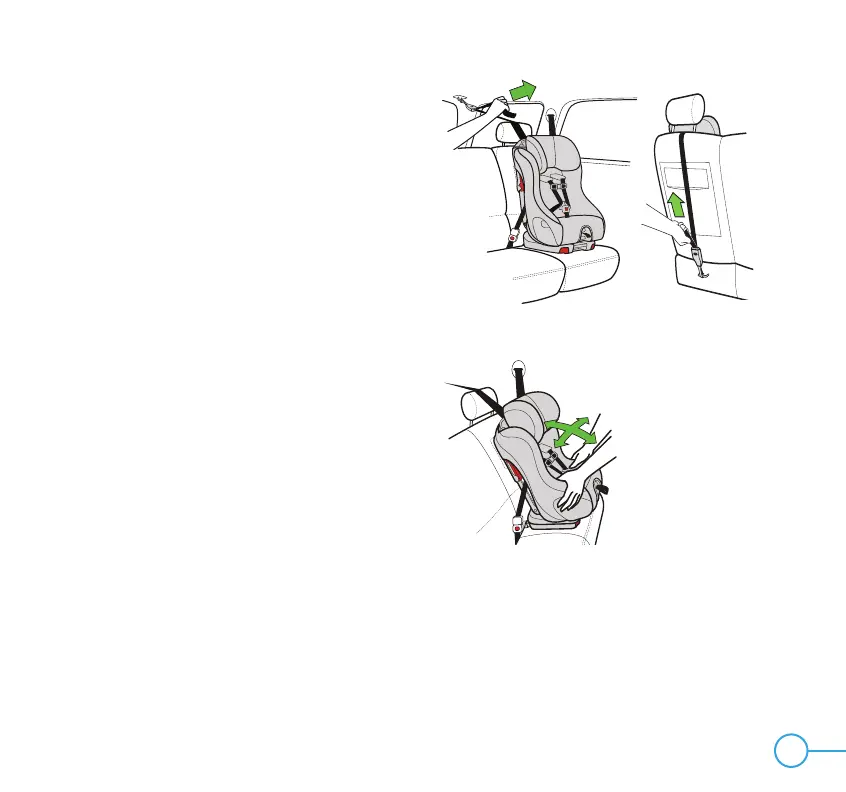

Attach Tether Hook to vehicle top tether
anchor as shown in Figure 25 or
Figure 26 and pull firmly on free end
of strap until Top Tether is snug.
Refer to vehicle owner’s manual for
recommended Top Tether routing and
identification of top tether anchor point.
Step 14
Check for secure installation. Gripping car
seat at top of armrests, pull car seat front
to back and left to right to check for secure
installation as shown in Figure 27. LATCH
system and Top Tether must stay tight and car
seat should not move more than 1 in. (2.5 cm)
in any direction.
• If LATCH system does not stay tight or
car seat cannot be securely installed,
try a different LATCH location or install
using the vehicle belt. See “Installing
Forward-Facing Car Seat With Inflatable
Vehicle Belt” on page 20 of this manual.
Figure 27
Figure 25
Figure 26
