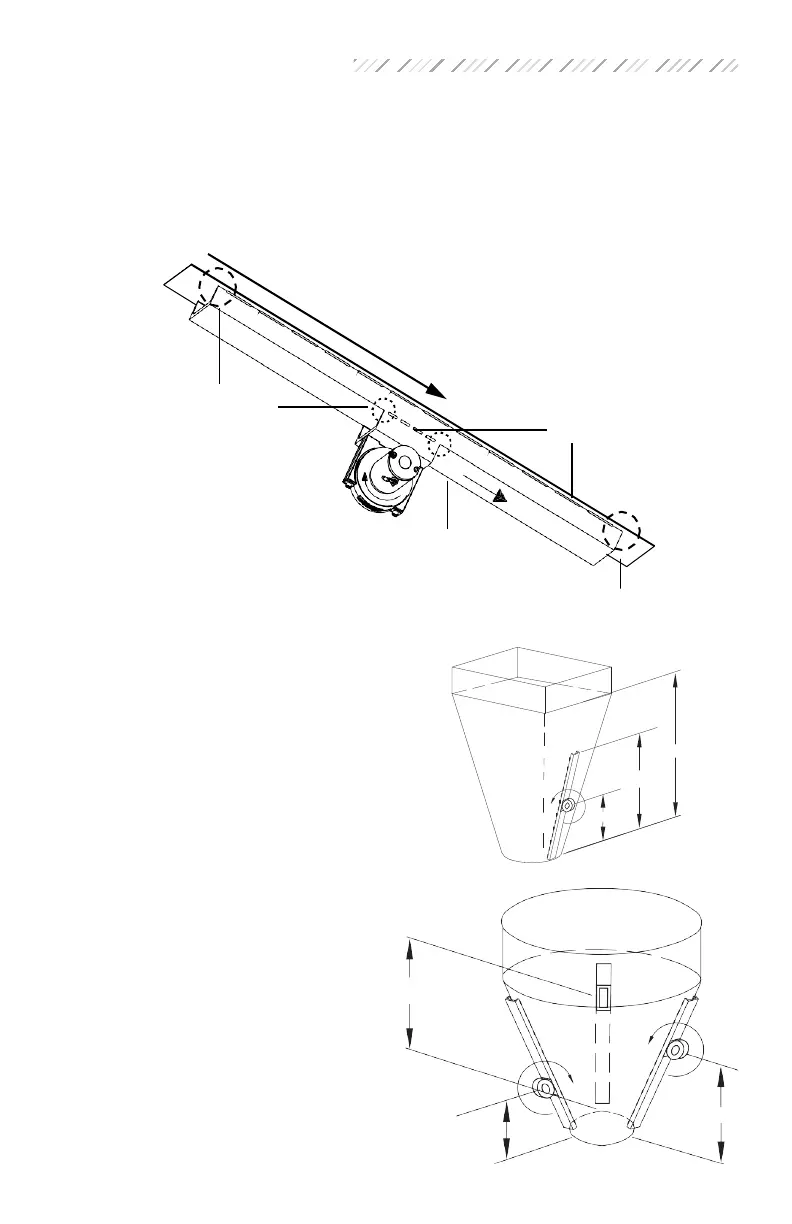

ORIENTATION OF VIBRATOR
The vibrator should be mounted with the shaft horizontal and the DC motor
on the right when looking at the application from outside the structure with
the direction of material ow from top to bottom. This will provide the proper
Do not weld ends
of channel iron
Welds
Stitch
Channel Iron
Do not weld ends
of channel iron
Channel
Iron
H
⅔ of H
⅓ of H
SINGLE VIBRATOR
Install a channel iron stiener on
the outside of the sloping wall 1/3
the distance above the discharge
THREE VIBRATORS
Install channel iron stieners mounted
120° apart. Install the rst vibrator
on the outside of the sloping wall 1/4
the distance above the discharge
opening. Install the second vibrator
on a separate channel iron at 1/2
the distance above the discharge
opening. Install the third vibrator on
the remaining channel iron at 3/4
¾ of H
½ of H
¼ of H
