Clevo N170SD - Removing the M.2 SSD Module

Disassembly
2 - 14 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6) and bottom case (page 2 - 8).

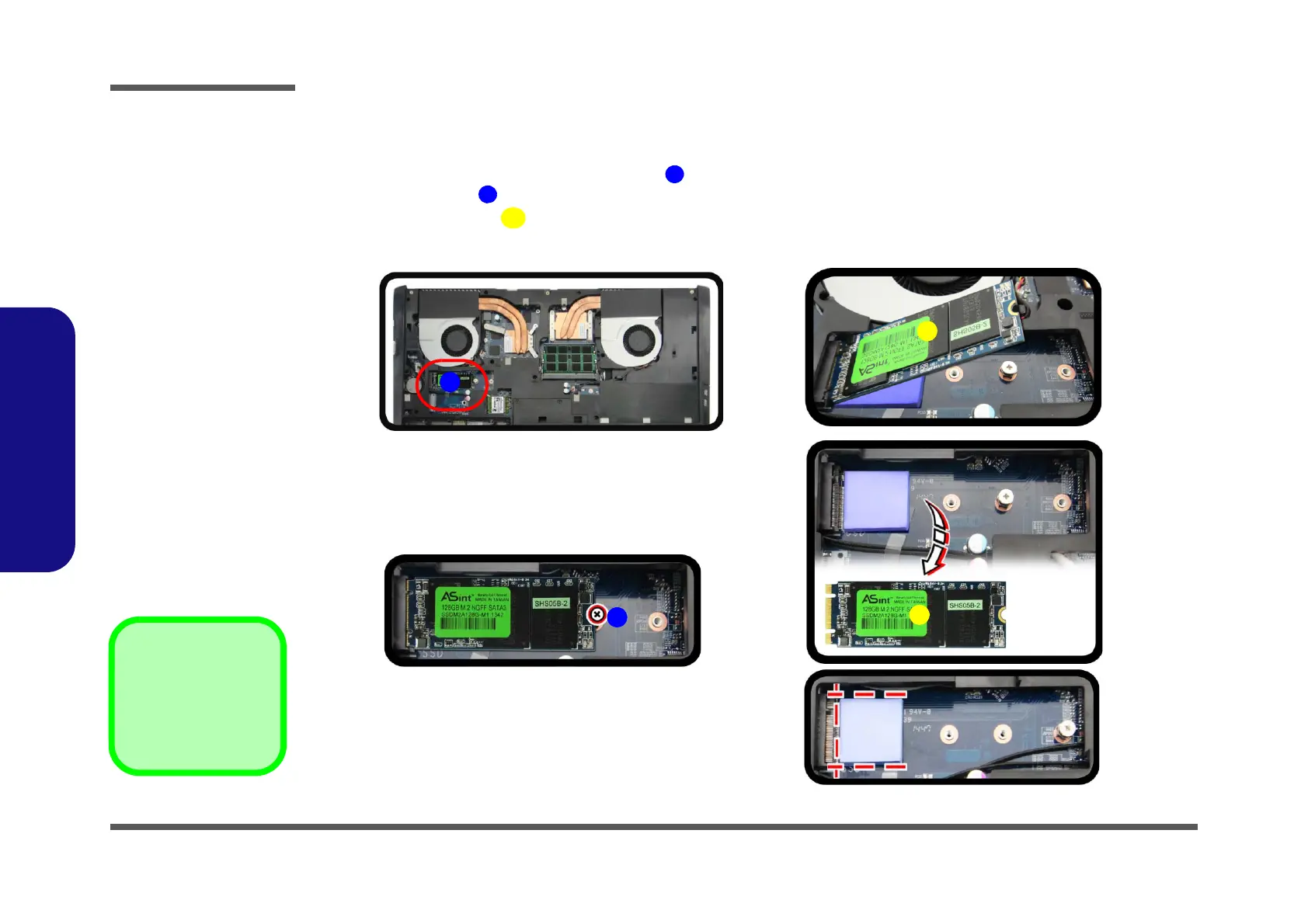

2. The M.2 SSD module will be visible at point on the mainboard (Figure 10a).
3. Remove the screw
(Figure 10b)
4. The M.2 SSD module (Figure 10c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new SSD module (make sure that the thermal pad is in place as shown below).
1
2
3
b.
c.
a.
2
3
1
3

3.M2 SSD Module
•1 Screw
Figure 10
M.2 SSD Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
