Clevo NP50HH - Installing the Touchpad

Disassembly
2 - 14 Installing the Touchpad
2.Disassembly
Installing the Touchpad
1. Insert the touchpad assembly by carefully sliding the board attention while pushing it down as shown (Fig-
ure 9a).
2. Tighten the screws - (Figure 9b).
3. Connect and lock the cable connector in place (Figure 9b).
1
2
3
7
8
a.
1
6
2
5
7
8
4
3
b.

1. Touchpad Assembly
•5 Screws

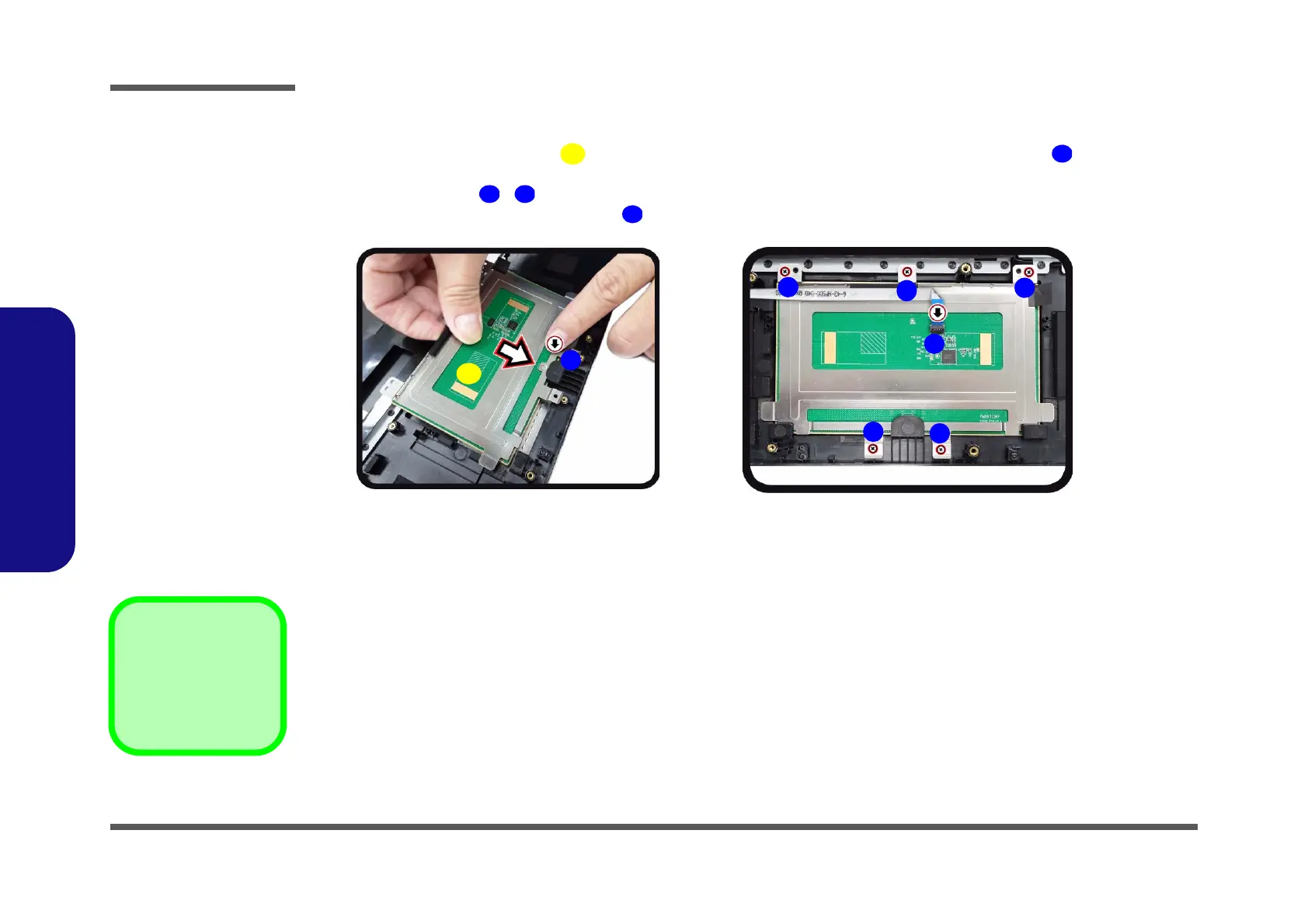

Figure 9
Touchpad
Installation
a. Insert the touchpad as-
sembly as shown.
b. Tighten the screws and
connect the cable con-
nector.
