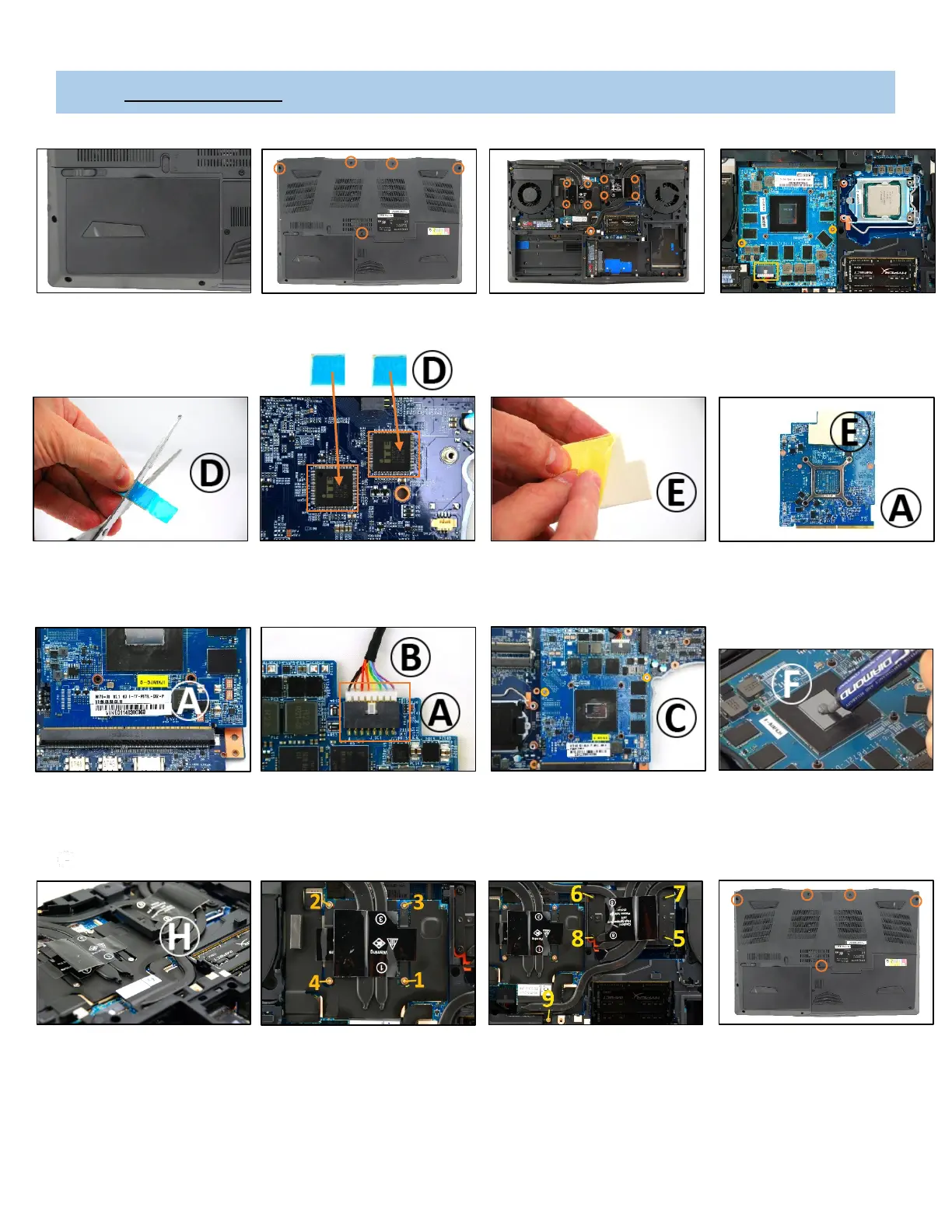

5. Installation Steps:
Step 6. Place Thermal Pads
(item
D) on iTE chips on
Motherboard
Step 10. Connect the 8-pin
side of the
GPU Power
Cable (item
B) to GPU card
(item A)
Step 8. Place Thermal Pad
(item
E) on the back of the
GPU card (item A)
Step 9. Connect GPU Card
(item A) to the
motherboard
’s MXM3.1
slot
Step 11. Add the Screws
(2pcs)
-Silver (item C) to
mount the GPU card (item
A) to the motherboard
Step 4. Disconnect the
power cable from the GPU
and remove existing GPU (2
screws)
Step 7. Remove the
protective film
s from
thermal pad (item
E)
Step 1. Unlock the Battery
and move the latch to
r
emove the battery
Step 3. Remove the existing
CPU+GPU heatsink
(9 screws
)
Remove
protective
film
Step 14. Add the Screws
(4pcs)
-Black (item I) to
mount the heatsink (item
H
)
to the unit
Step 12. Add thermal paste
to GPU
die
Step 13. Install the new
CPU+GPU heatsink (
item H)
Step 2. Remove Bottom case
of your laptop (5 screws)
Step 5. Cut thermal pad
(item D) in half and remove
the protective films
Remove
protective
film
Step 15. Add the rest of the
screws to mount the
heatsink onto the unit.
Step 16. Reinstall Bottom
case of your laptop (5
screws)
and the battery
