Disassembly

Removing and Installing the Hard Disk Drive 2 - 9

2.Disassembly

Hard Disk Size Note (Foam Rubber Insert)

Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard

disk drives will be installed.

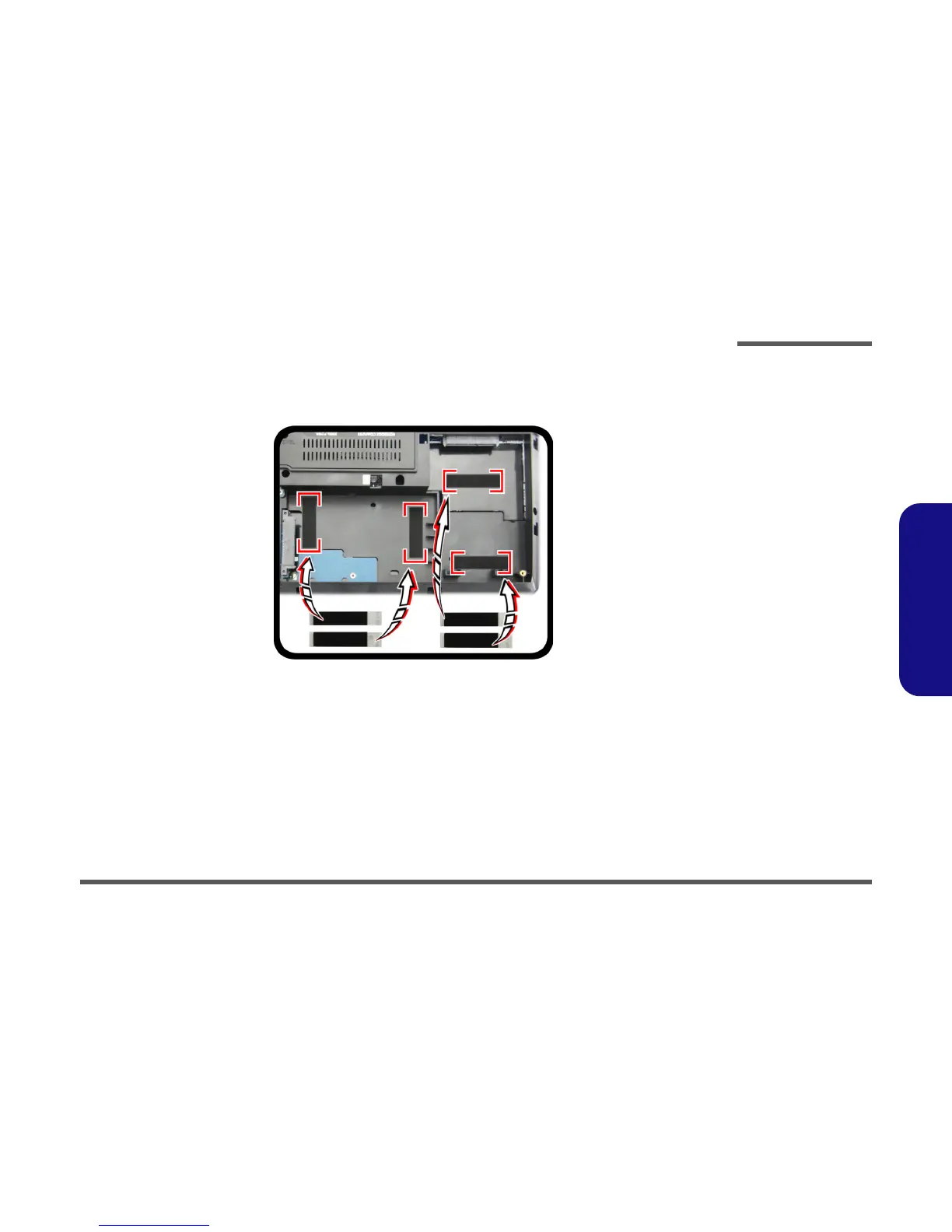

Figure 5

Foam Rubber

Insert for 7mm(H)

HDDs

• If you are replacing a 9.5mm(H) HDD with a

7mm(H) HDD then insert the foam rubber

insert.

• If you are replacing a 7mm(H) HDD with a

9.5mm(H) HDD then remove the foam rub-

ber insert.

HDD-2 HDD-1

Clevo P770DM User Manual
