Disassembly
2 - 16 Removing and Installing the Processor
2.Disassembly
4. Press down and hold the latch (with the latch held down you will be able to release it).
5. Move the latch and bracket fully in the direction indicated to unlock the CPU(Figure 12c).
6. Carefully (it may be hot) lift the CPU up out of the socket (Figure 12d).
7. See page 2 - 17 for information on inserting a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
10
10
11
A
Figure 12
Processor Removal
(cont’d)

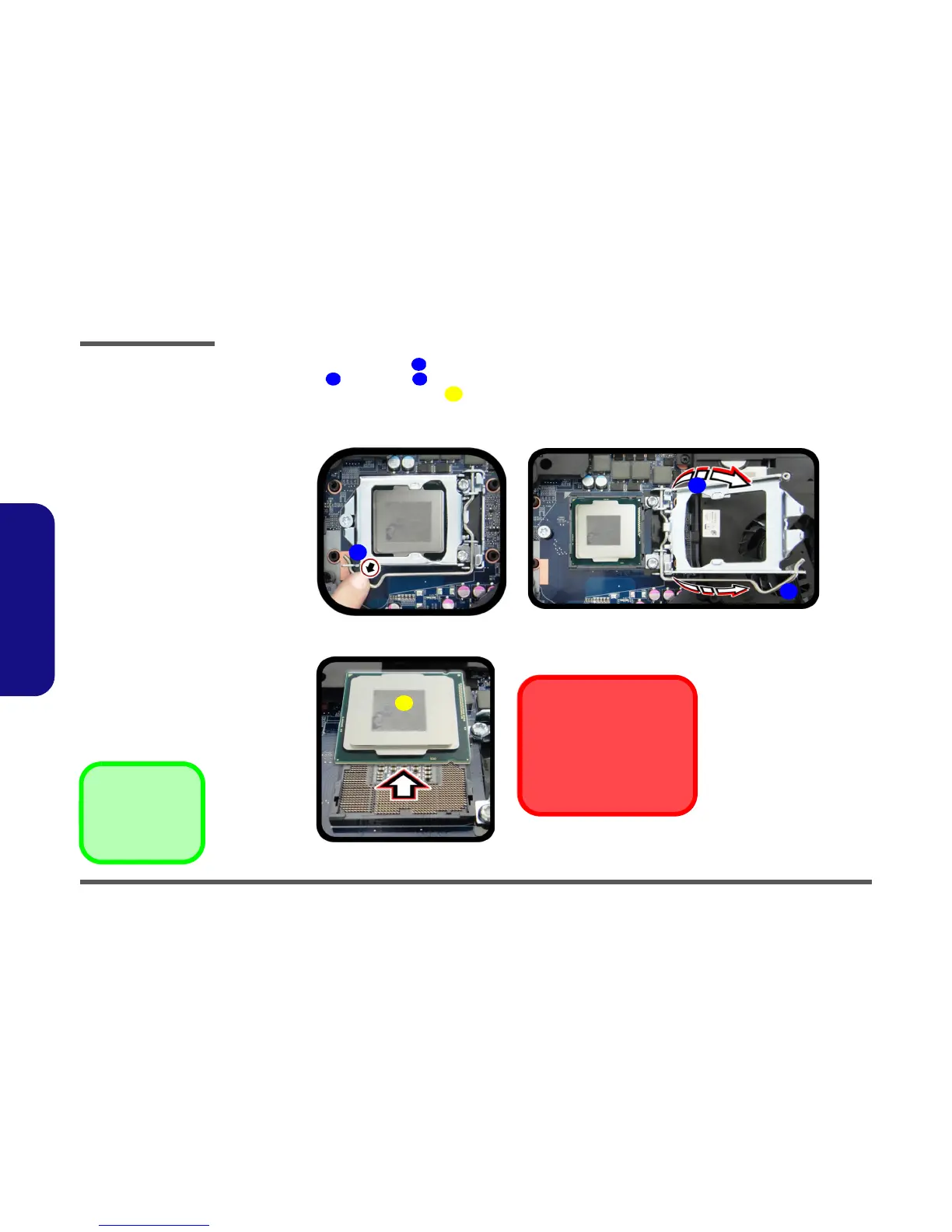

c. Move the latch and
bracket fully in the direc-
tion indicated to unlock
the CPU.
d. Lift the CPU out of the
socket.
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
c.
d.
Unlock
A
10
10
11
A. CPU
