Disassembly
2 - 12 Removing and Installing a Processor
2.Disassembly
5. Turn the release latch towards the unlock symbol to release the CPU (Figure 8d).
6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 8e).
7. Reverse the process to install a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).

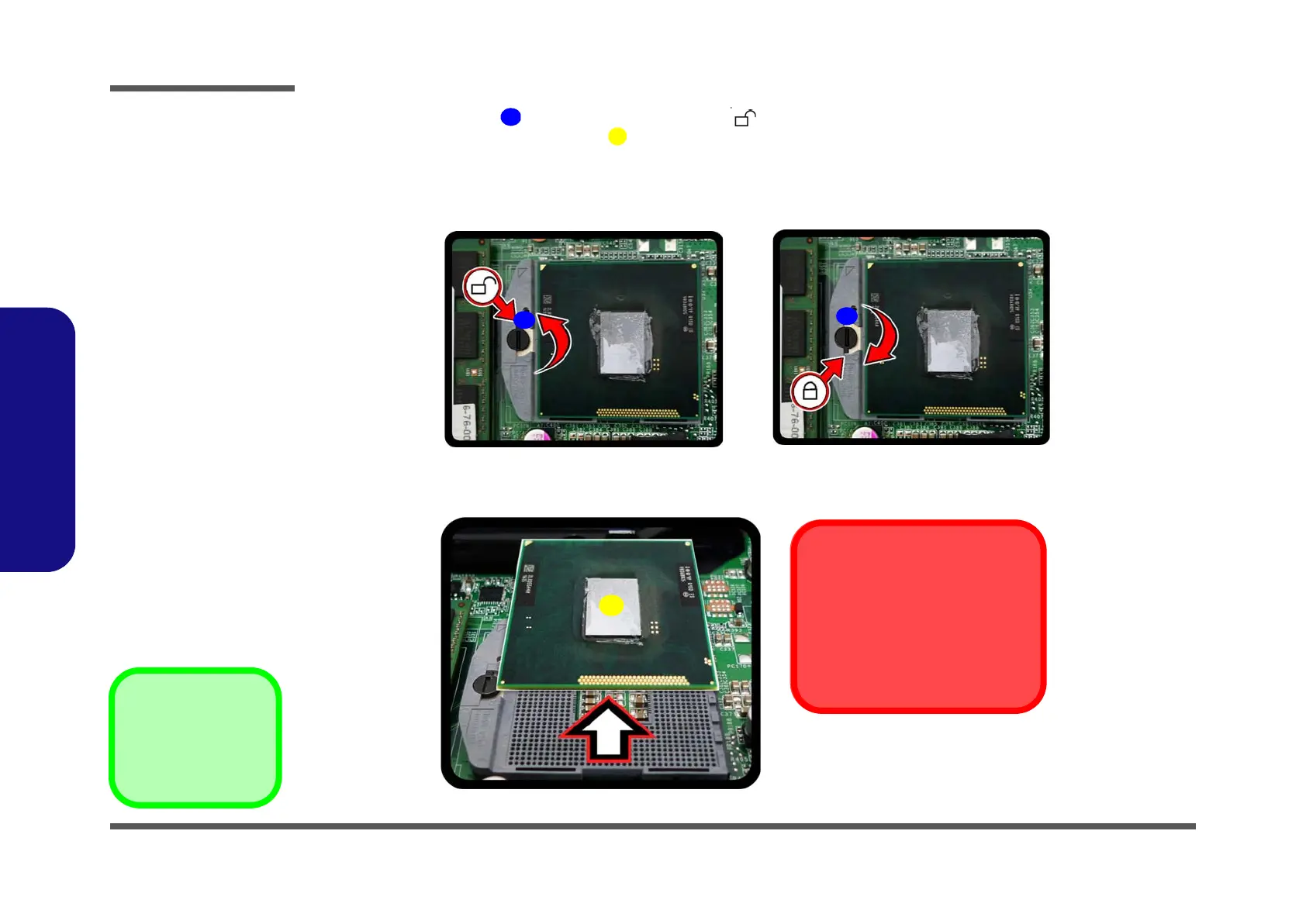

Figure 8
Processor Removal
(cont’d)
c. Turn the release latch to
unlock the CPU.
d. Lift the CPU out of the
socket.
c.
d.
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Allow
the area time to cool before remov-
ing these parts.
Unlock Lock
5
6
5
To Next Page
