2 - 14 Removing the 3.75G Module
2.Disassembly
Removing the 3.75G Module

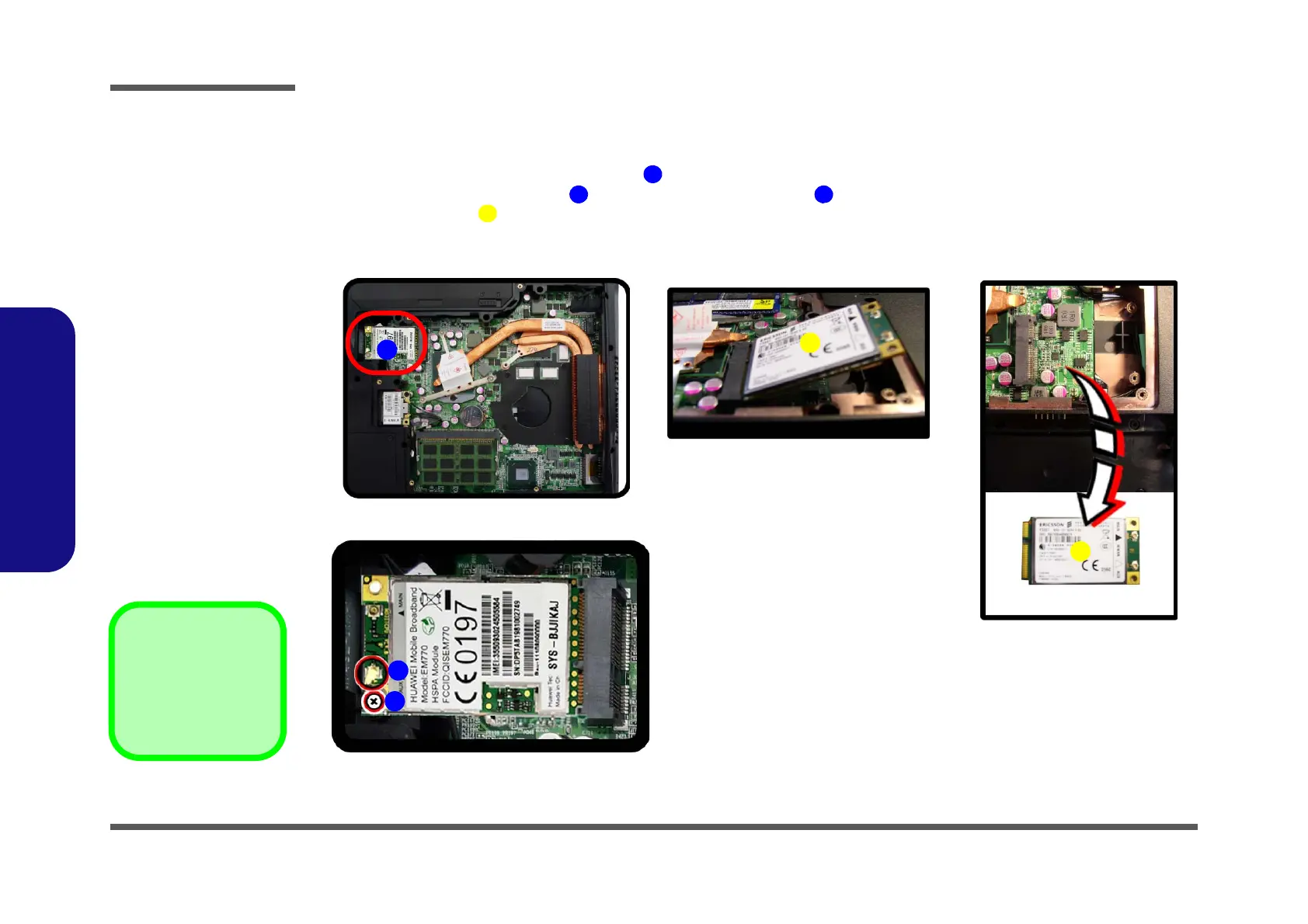

Figure 10
3G Module Removal
a. Locate the 3.75G mod-
ule.
b. Disconnect the cable
and remove the screw.
c. The module will pop-up.
d. Remove the 3.75G mod-
ule.
Note: Make sure you
reconnect the antenna
cable to socket.
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The 3.75G module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cable
, and then remove the screw (Figure 10b).
4. The 3.75G module (Figure 10c) will pop-up, and you can remove it from the computer (Figure 10d).
1
2
3
4
b.
c.
a.
3
2
4
d.
4
1
a.

4. 3.75G Module
•1 Screw
