Removing the Optical (CD/DVD) Device 2 - 9
2.Disassembly
5. Reverse the process to attach the front bezel with the new optical device at point (Figure 5e).
6. Insert the new optical device
and carefully slide it into the computer (the device only fits one way. DO NOT
FORCE IT; The screw holes should line up). Take care to avoid folding the connector underneath.
7. Replace the bottom cover and tighten the screws.
8. Restart the computer to allow it to automatically detect the new device.
1. Optical Device
4. Bezel

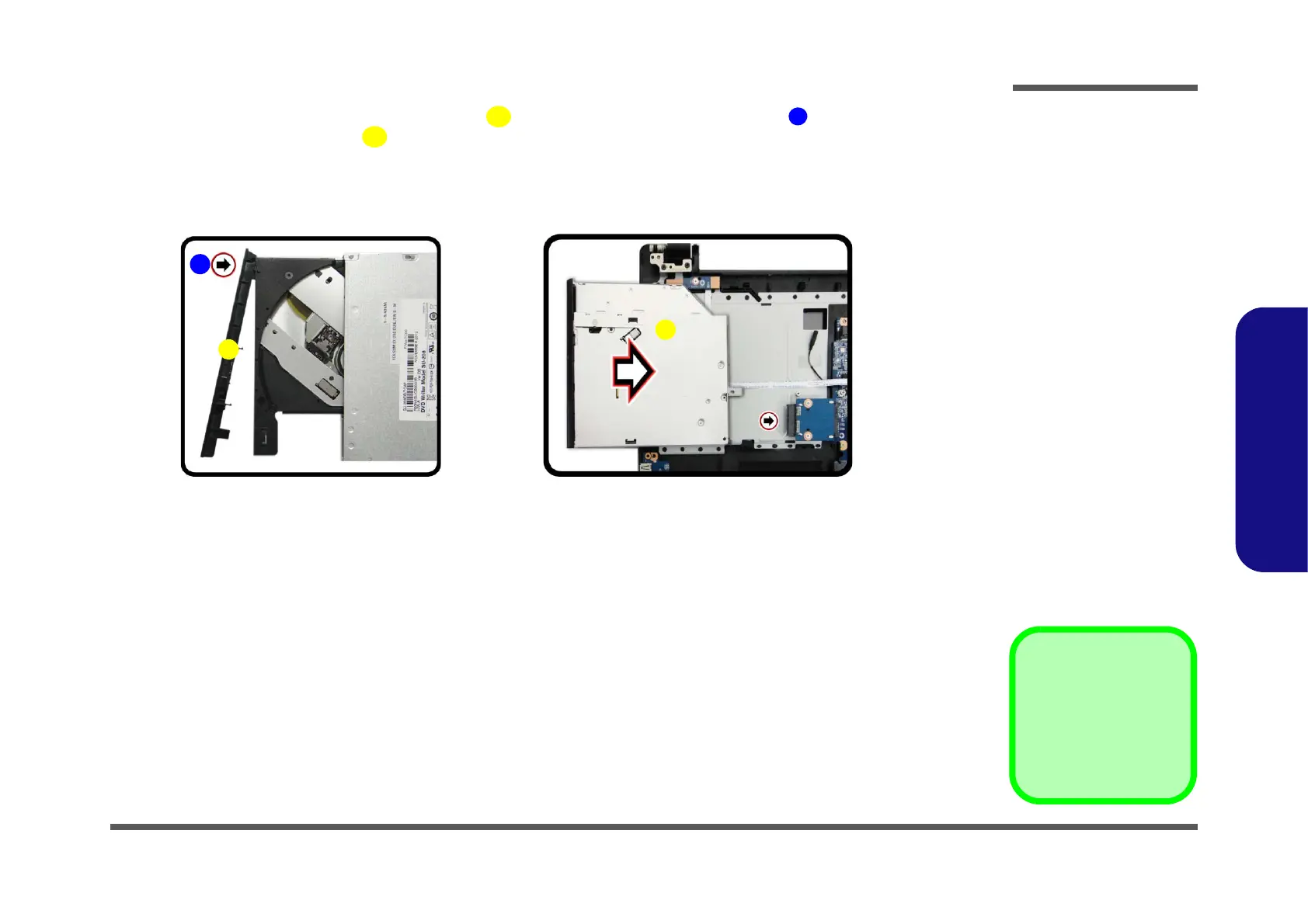

Figure 5
Optical Device
Assembly
d. Install the front bezel.
e. Insert the optical device.
To Next Page
