12
©
2004
Directed Electronics, Inc.

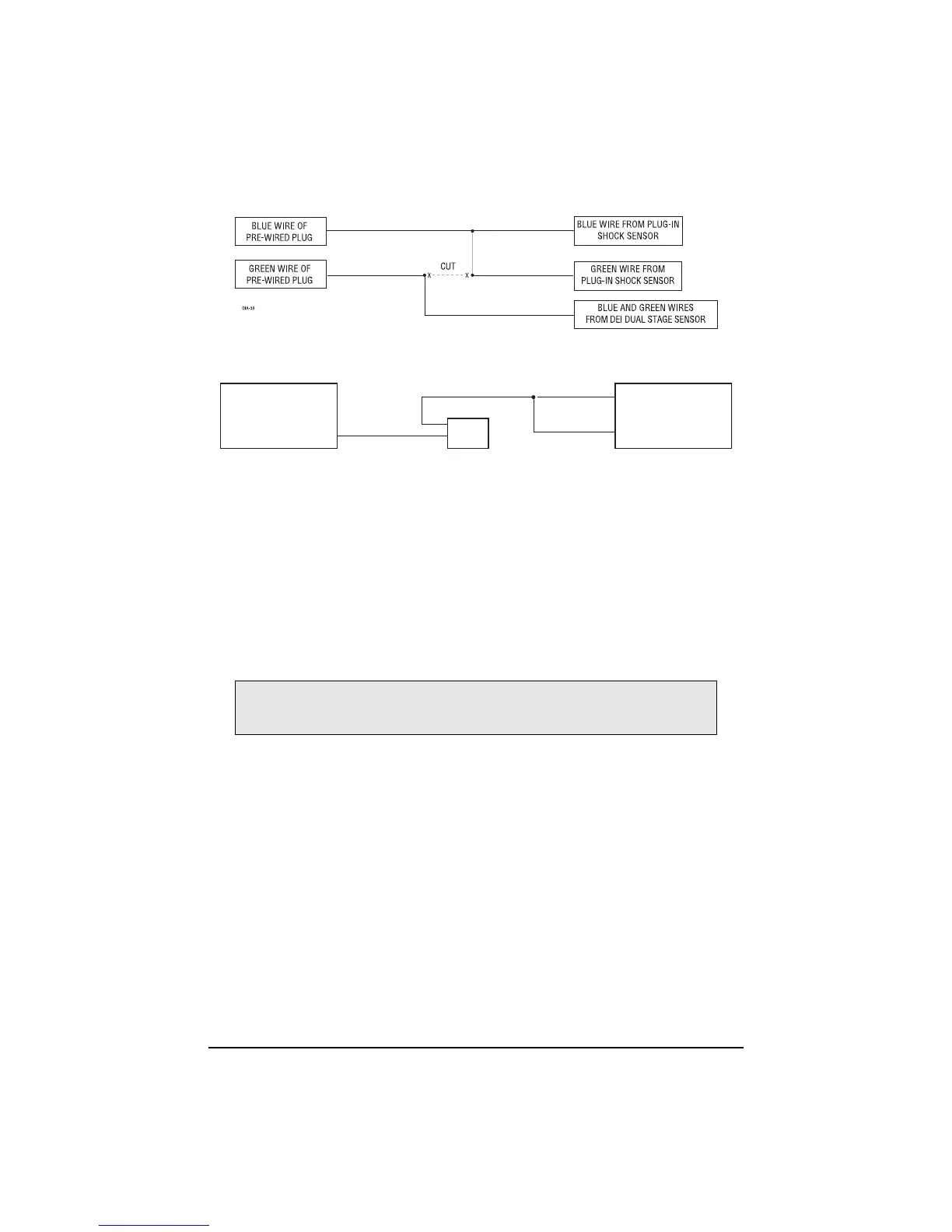

Diagram for adding optional Directed dual stage sensor to GREEN wire (zone 4).
BLUE (-) Multiplex Input
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8
seconds will trigger full alarm sequence and report Zone 2.
RED (+) 12V Constant and BLACK (-) Ground
Do not use these for anything besides the plug-in shock sensor.
NOTE: If adding additonal sensor(s), connect the power and ground of the additional
sensor(s) to the power and ground at the 12-pin harness.
