Wall Mounted Installation
Due to the many different materials used on different walls, it is highly recommended that you consult your
local builder before you install this appliance on the wall.
A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
B. Have two people hold the appliance against the wall to determine the final location.

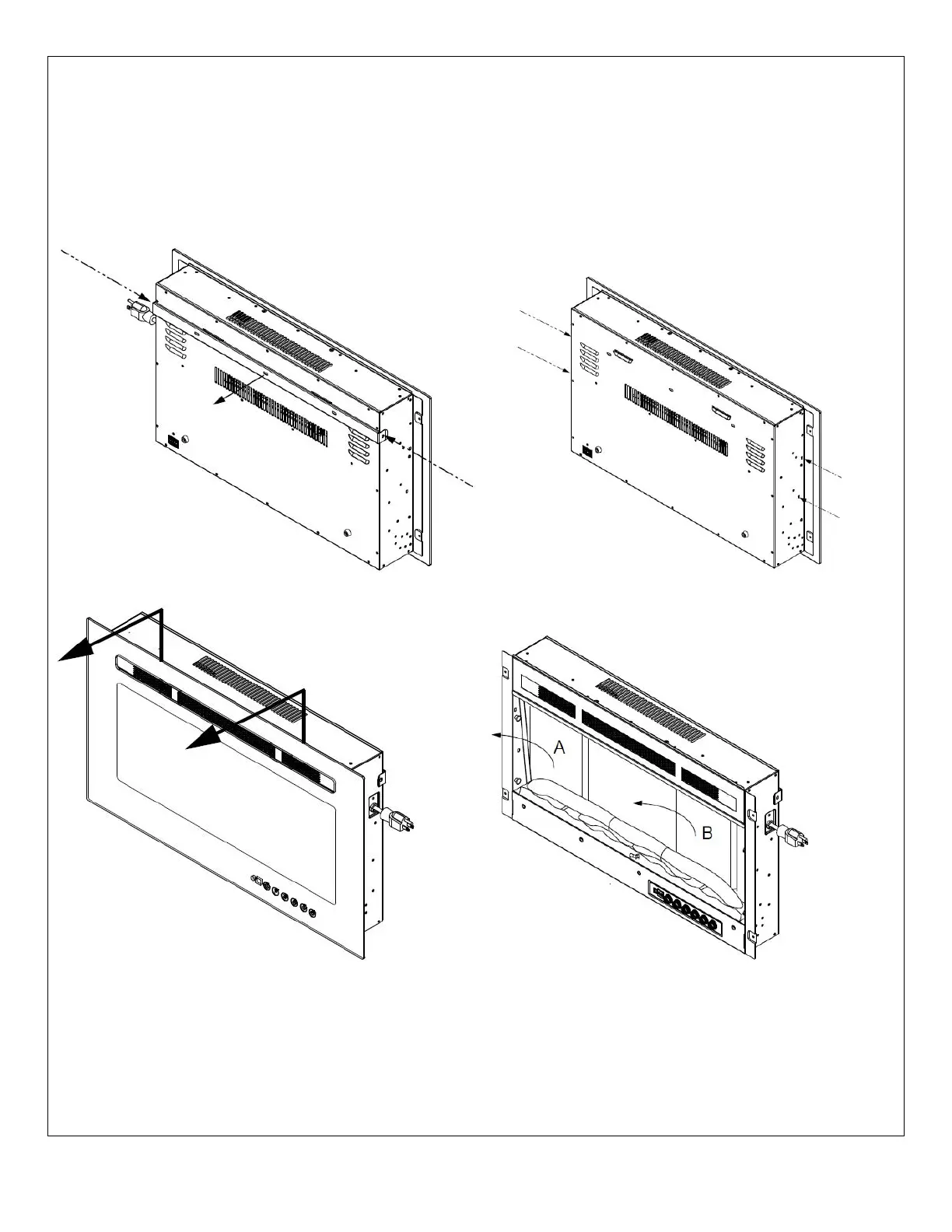

C. Place unit face down on a soft, non abrasive surface.Remove the bracket from the back of the unit by
removing the screws, refer to Figure 1. Remove four pcs of silver screws at bothe sides, refer to Figure 2.
Fig.1 Fig.2
D. Take glass off carefully, then take two pcs of foam out of fireplace.
Fig.3 Fig.4
E. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
To Next Page
