ClimaCool Service Clearances
NOTES:
1. Modular chiller bank width dimensions above include (1/8") between modules, plus (1-1/2") for required blank off plate fl anges
when piping for a direct return (Refer to Water Piping Confi guration - Figure 1). Example: (5) FLEX 65 modules
167-1/2" width + 1-1/2" (Blank off plates) + 5 x 1/8" (fl ange connection gaskets) = 169-5/8" (14' 1-5/8").
2. When piping 1 to 5 or more than 5 modules, use reverse return (Refer to Water Piping Confi guration - Figure 2).
Example: (7) FLEX 30 modules 206-1/2" width + 1-1/2" (Blank off plates left) + 1-1/2" (Blank off plates right) + 8 x 1/8"
(fl ange connection gaskets) = 210-1/2" (17' 6-1/2").
The ClimaCool
®
Modular Chiller -
Service Clearances

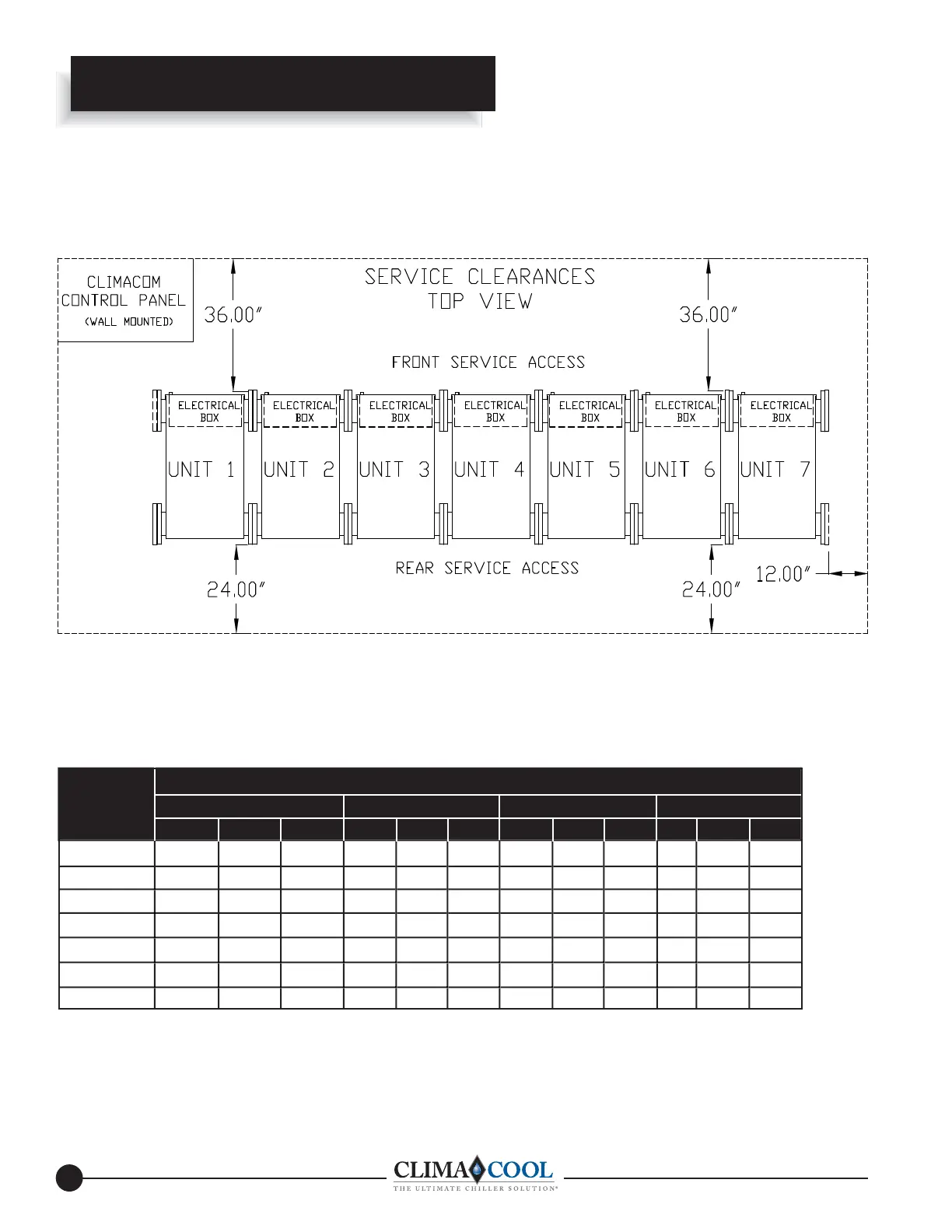

Recommended Clearances
1. Allow 36” clearance for electrical panels and 24” clearance for rear service access to modules.
2. Allow a minimum of 18" height clearance for service and 12” for side clerances.
3. Local building or electrical codes may require additional clearance. Consult applicable codes.
Modular Chiller Bank Dimensions - w/Connnection Flange Gaskets and Blank Off Plates
Model Dimensions
FLEX Width (ft./inches) Depth Height
(w/o panels) Height (w/ panels)
30 50 65 30 50 65 30 50 65 30 50 65
1 module 2’ 7-1/8” 2’ 11-1/8” 2’ 11-1/8” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
2 modules
5’ 3/4” 5’ 8-3/4” 5’ 8-3/4” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
3 modules 7’ 6-3/8” 8’ 6-3/8” 8’ 6-3/8” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
4 modules
10’ 0” 11’ 4” 11’ 4” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
5 modules
12’ 5-5/8” 14’ 1-5/8” 14’ 1-5/8” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
6 modules 15’ 7/8” 17’ 7/8” 17’ 7/8” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
7 modules
17’ 6-1/2” 19’ 10-1/2”19’ 10-1/2” 19’ 10-1/2” 41-7/8” 41-7/8” 43-5/8” 72-7/8” 76-3/4” 76-3/4” 77” 78-3/8” 78-3/8”
