ClimaCool Vibration Isolation
The ClimaCool
®
Modular Chiller -
Mounting Rail and Vibration Isolation
Due to the low vibration of the modules, ClimaCool
®
does not
require the application of spring isolators or pads. Should
isolators or pads be desired, install in accordance with
Figs. 1 and 2.

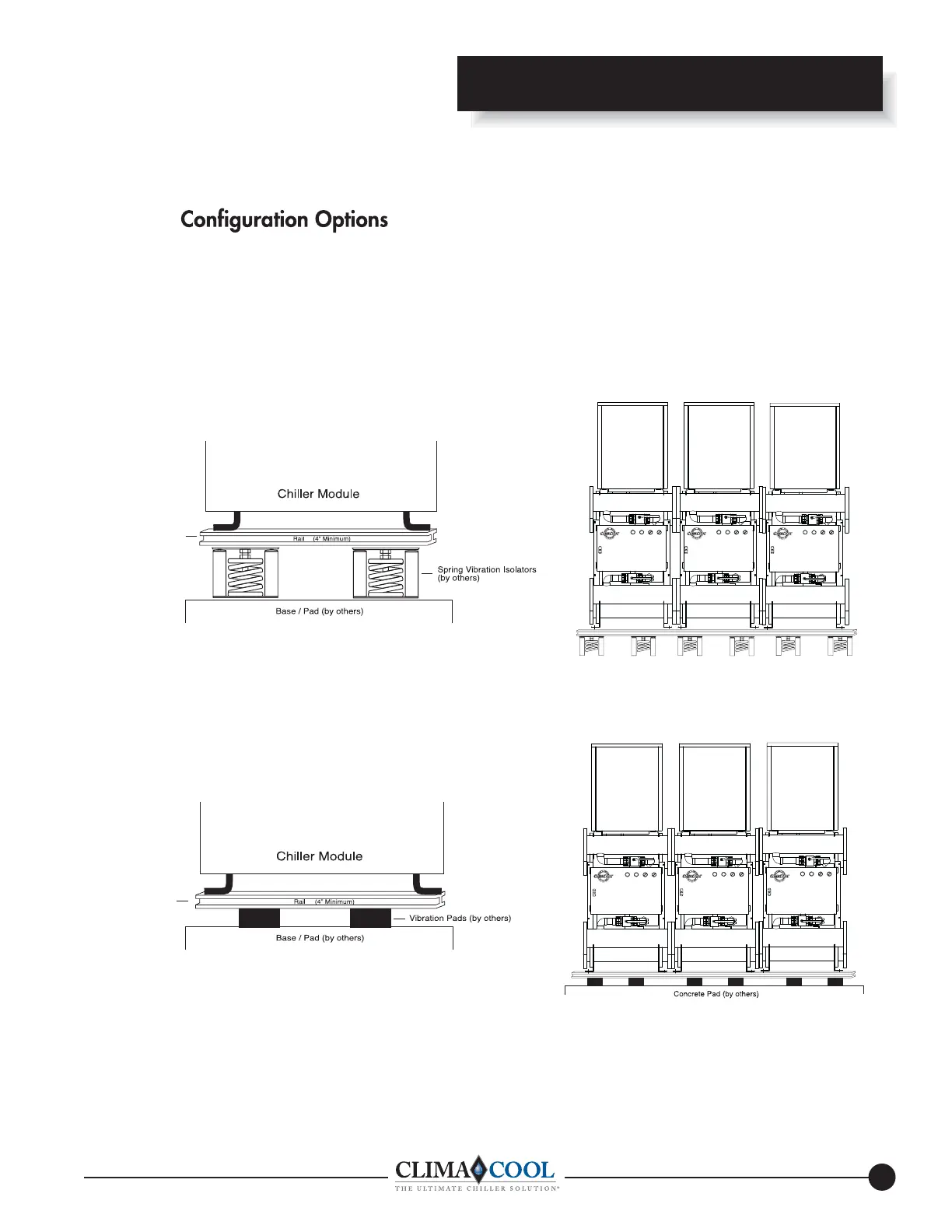

Figure 1 - Spring Vibration Isolators Option
Figure 2 - Vibration Isolation Pads Option
NOTE: la u div id ni rep reenigne larutcurts de fiilauq a yb denimreted eb ot si noitubirtsid thgiew dna eziS
job requirements.
4” Rail Minimum
Required (by others)
4” Rail Minimum
Required (by others)
