25
SCA
ST2
FL
EW
ST1
SFA
T
T
OUT
IN
DENOMINAZIONE DESIGNATION BEZEICHNUNG DESCRIPTION
EW
Evaporatore
Evaporator
Verdampfer
Evaporateur
FL
Flussostato (accessorio)
Flow switch (accessory)
Strömungswächter (Zubehör)
Controlleur de dèbit (accessoire)
SCA
Scarico acqua
Water drain
Wasser Entladen
Vidange eau
SFA
Valvola di sfiato aria manuale
Manual air vent valve
Manuellem Entlüftungsventil
Soupape de purge d'air manuel
ST1
Sonda di lavoro
Sensor for unit operation
Temperaturfühler
Sonde de travail
ST2
Sonda antigelo
Antifreeze sensor
Frostschutzfühler
Sonde anti-gel
WATER CIRCUIT
General characteristics
Water circuit MEA/Y, MEA/Y/SSL versions.
Includes: evaporator, temperature sensor, antifreeze sen-
sor, manual air vent valve and water drain.
CIRCUIT HYDRAULIQUE
Caractéristiques générales
Circuit hydraulique versions MEA/Y, MEA/Y/SSL.
Le circuit inclut: évaporateur, sonde de travail, sonde anti-
gel, soupape de purge d'air manuel et vidange d'eau.
CIRCUITO IDRAULICO
Caratteristiche generali
Circuito idraulico versioni MEA/Y, MEA/Y/SSL.
Include: evaporatore, sonda di lavoro, sonda antigelo,
valvola di sfiato aria manuale e scarico acqua.
WASSERKREISLAUF
Allgemeine Merkmale
Wasserkreislauf MEA/Y, MEA/Y/SSL Bauvarianten.
Bestehend aus: Verdampfer, Temperatur- und Frosts-
chutzfühler, manuellem Entlüftungsventil und Wasser
Entladen.

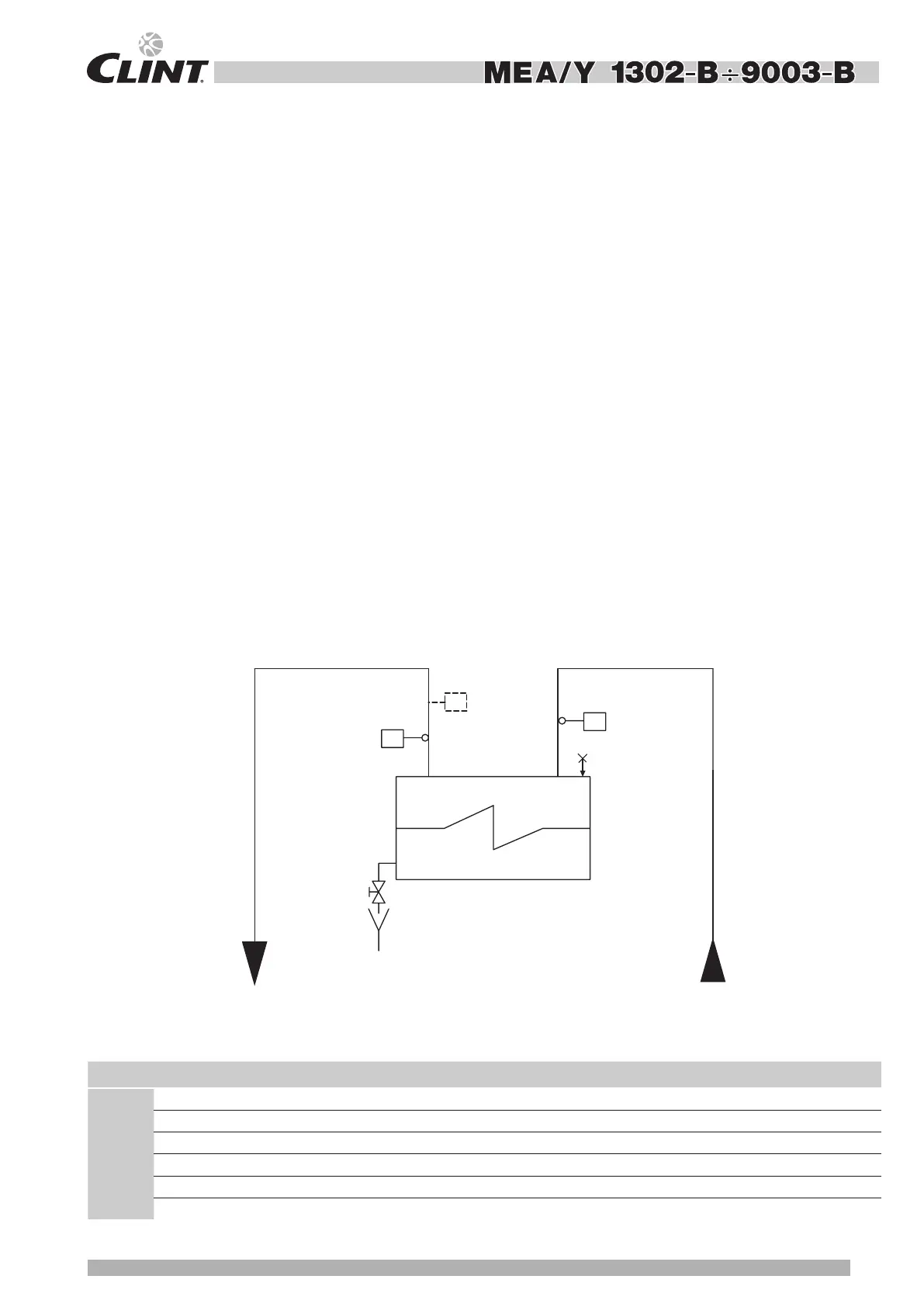

WATER CIRCUIT DIAGRAM
SCHÉMA DU CIRCUIT FRIGORIFIQUE
SCHEMA CIRCUITO IDRAULICO
WASSERKREISLAUF SCHALTPLAN
