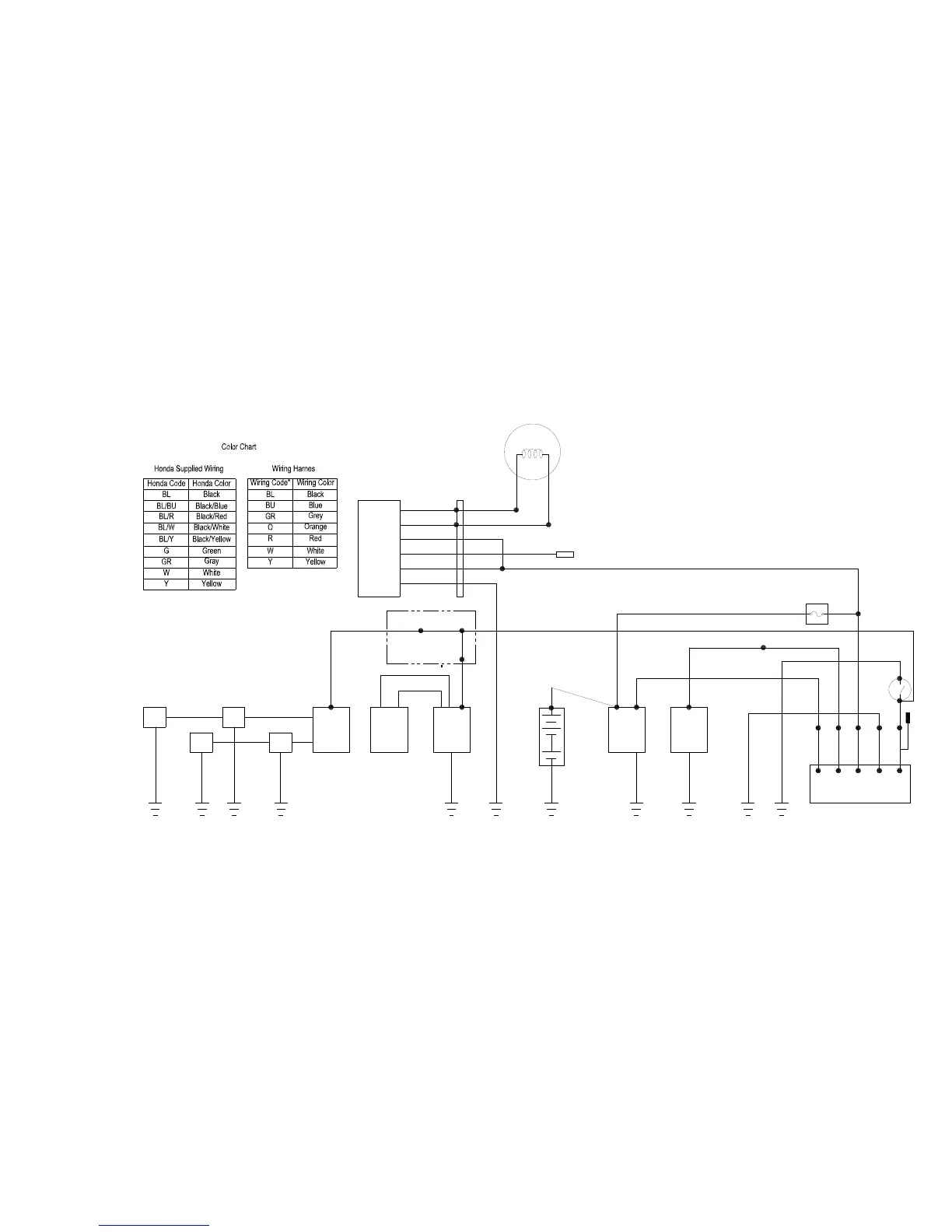

G. ELECTRICAL DIAGRAM C2016SS, C2020SS, C2024SS:
20HP Electric Start Models With Honda GX620TXF2 Machine Serial Numbers 07051033 and Higher
W
(GR*)
Kill
Switch
BL
(BL)
BL
R
(BL/Y*)
(GR*)
BL/W BL/Y
W
BL BL/R BL/BU
Inside Motor
Connect to BL/R
Starter
Motor
O
W
25 Amp
Inline Fuse
Battery
12 volt
+
-
BL
Fuel
Cut
Solenoid
Valve
W
Regulator/
Rectifier
(GR*) GR
(GR*) GR
(BL/Y)
W
(W/BU) (W/BU) - Not Used
(W)
W
(BL) (BL)
20A
Charge
Coil
R
Oil Alert
Unit
(BL/R*)
Engine
Stop
Diode
(BL/BU*)
Oil Level
Switch
(Y)
(G)
R
(BL)
Left
Ignition
Coil
Right
Ignition
Coil
Left
Spark
Plug
Right
Spark
Plug
ST
LO BAT
E
IG
BL
