19

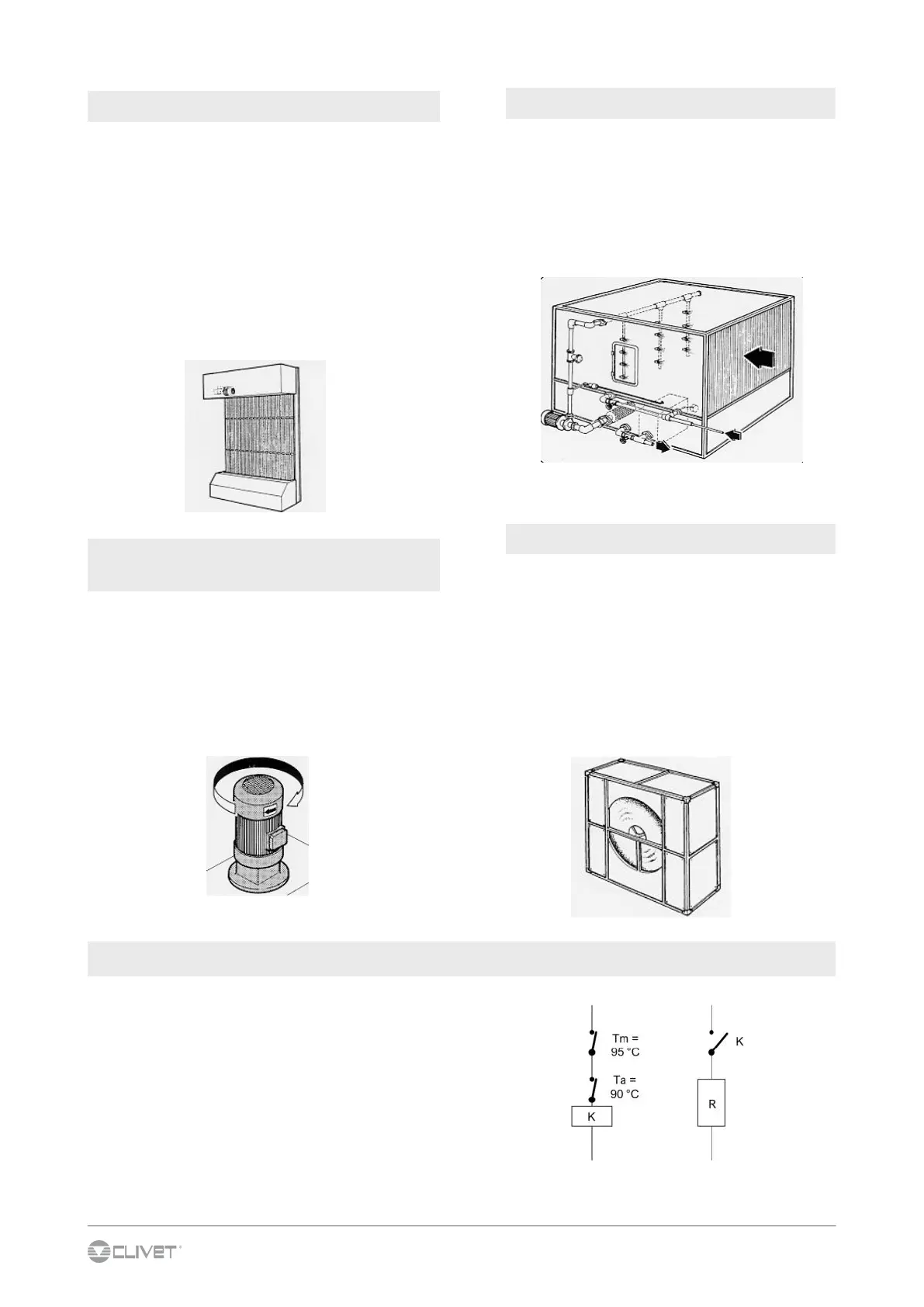

6 - ELECTRIC CONNECTIONS
Check the mains have features conform with the data reported
on the matriculation plate
Electrically connect the gear motor, checking the direction of
rotation.
Check that the gearing chain is well aligned and suitably
greased.
Fit the layer of filtering material, checking that the alignment is
square so as to ensure correct rewinding.
The manufacturer has enclosed a complete series of
documents inside the filter electrical panel, including wiring
diagrams, instructions for connections to the equipment, etc.
6.7 ROTARY FILTERS
6.8 UMIDIFICATION WITH WATER
CIRCULATION
Check the mains have features conform with the data reported
on the matriculation plate
Connect the electric pump to the mains power supply using
compliant devices (three-phase power supply).
Check the direction of rotation.
Check the power input.
6.9 SPRAY NOZZLE HUMIDIFICATION
Check the mains have features conform with the data
reported on the matriculation plate
Connect the electric pump to the mains power supply
using compliant devices (three-phase power supply)
Check the direction of rotation.
Check the power input.
Check the mains have features conform with the data
reported on the matriculation plate
For the electrical connections, follow the manufacturer’s
instructions enclosed with the appliance.
Read the manufacturer's manual
The electrical connections must be carried out to EC
standards.
The access door must be fitted with a microswitch.
6.10 ROTARY HEAT RECOVERY UNIT
ELECTRIC HEATERS
1. Remove the cover of the terminal block
2. Check that the connections of the terminals conform to
the power supply voltage.
3. Carry out the earth connection
4. Connect the line cable to the terminal block,
Ta safety thermostat, automatic reset (supplied)
Tm safety thermostat, manual reset (supplied)
K contactor (not supplied)
R electric heaters
