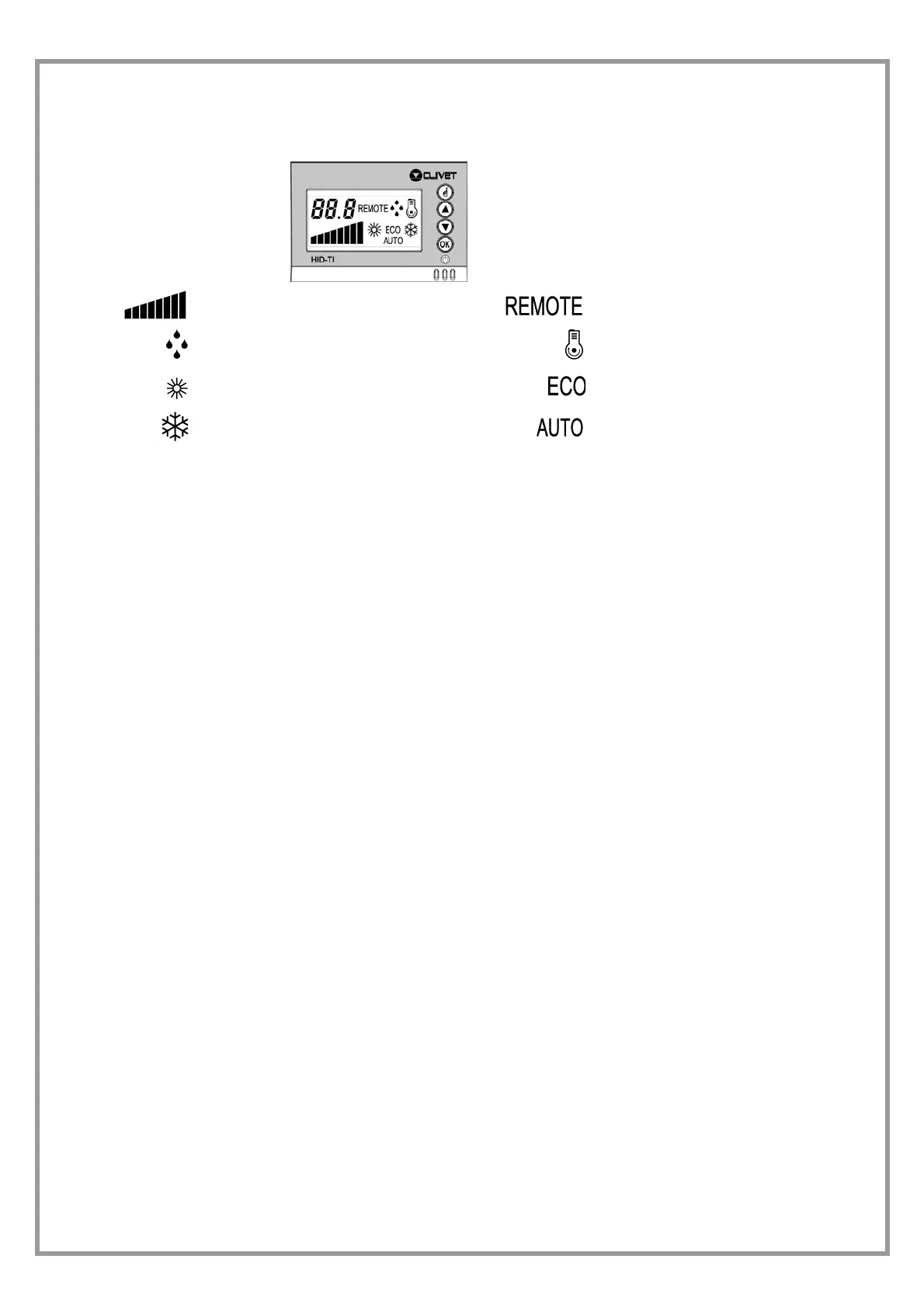

M42740M4-02 02/10/08 page 24
HID-TI2 ROOM THERMOSTAT
operating mode selection
S increase the selected field
T decrease the selected field
OK confirm the set datum / thermostat ON – OFF
Ventilation status
Management by ELFO CONTROL
Active humidification
Active compressor
Unit in COOLING
Enabled ECO Setpoint
Unit in HEATING
Unit automatically chooses to cool
or heat
GENERAL DESCRIPTION
The room thermostat HID-TI2/TI3 (hereafter HID) is a device for recessed installation for the remote control of the unit to which
it is connected. It is therefore not a MODBUS network thermostat.
It can be connected to terminal units equipped with terminal.ROOM or terminal.SPACE electronics and makes it possible to
set:
desired humidity/temperature
the desired type of ventilation
a series of advanced functions for the unit to which it is connected
display any error codes that correspond to alarms sent by the adjustment unit.
In the HID-TI control there is also a temperature sensor that can be used as a remote sensor for the unit to which it is
connected.
OPERATING MODES
"Normal" operation, HID-TI connected to CLIVET-BUS:
the HID thermostat shows the operating status of the unit to which it is connected
periodically measure the temperature/humidity in the room where it is installed
it is possible to use only the 4 front keys (user programming)
"Nolink" operation, HID-TI not connected to CLIVET-BUS:
the thermostat is powered by auxiliary power (a battery must be present)
it is possible to access hidden keys for installer use
it is a temporary mode that allows "advanced programming" of the unit.
INITIAL RESET
Insert the battery (auxiliary power supply) and then press the power on key [A] [A].
All display segments will come on for about 3 seconds. Then the display will show the firmware revision of the device.
If the HID device is not connected to CLIVETBUS within one minute, it will go off.
During this time, you can only use the hidden buttons for use by the installer.
You can also use the HID device without a battery. The initial reset is carried out simply upon connection with the CLIVETBUS.
After the initial reset, upon connection to the CLIVETBUS, the device goes into normal operating mode.
USER PROGRAMMING
User programming makes it possible to:
choose the operating mode of the unit (heating, cooling, eco, fan)
set the adjustment set point
manage the fan speed manually or automatically
enable/disable the floating shutter of the air supply (swing)
display ambient temperature
power on/off the adjustment unit
activate/de-activate silenced mode
POWER ON/OFF
To power on/off the adjustment unit, press and hold the OK key.
Off status is indicated on the display by the message OFF.
