7

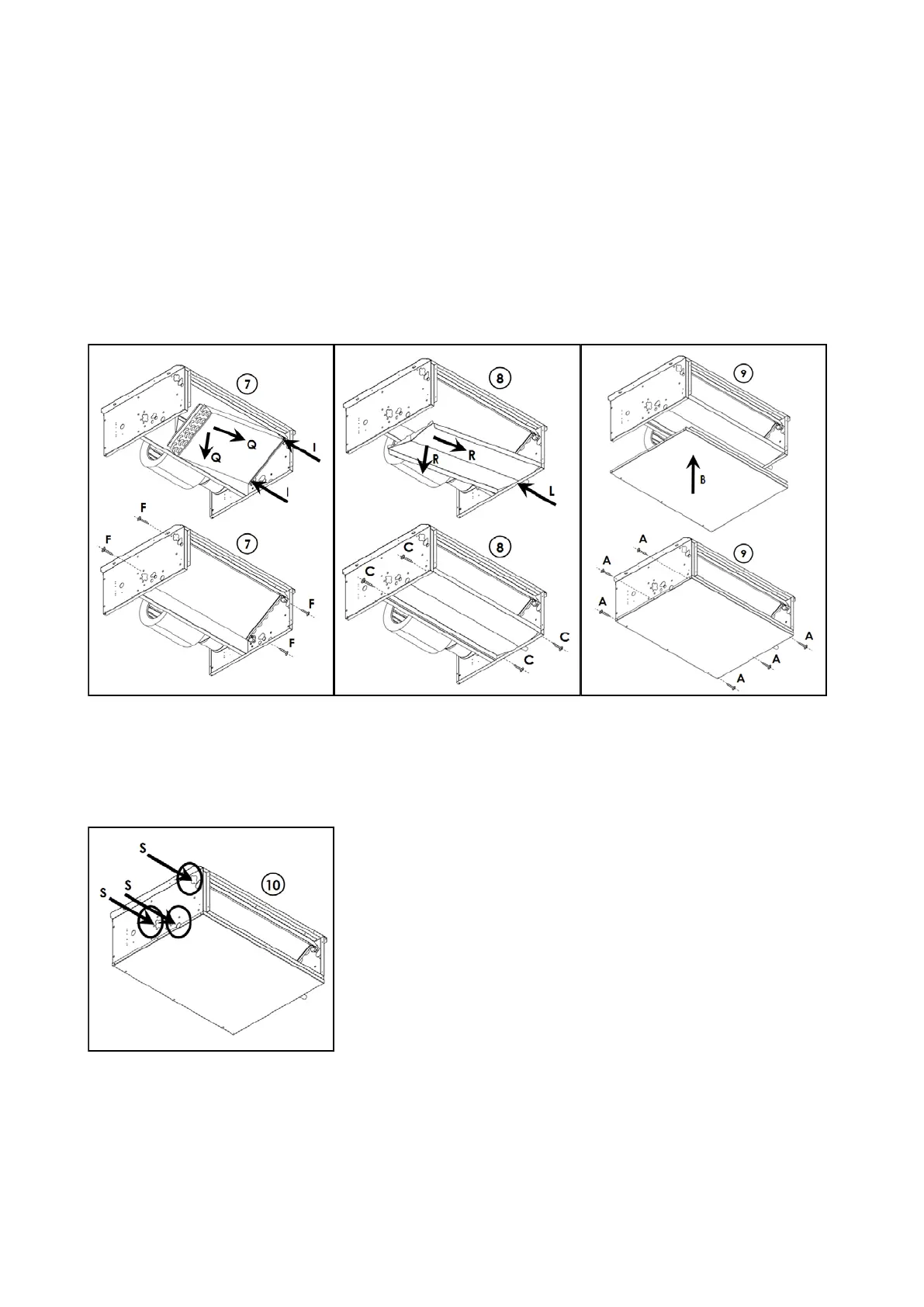

Insert the coil, inclined as shown in “Q”, and fit the hydraulic connections into the new holes “I” (created in the
point no.4).
Tighten the 4 Ø 3.9x9.5 screws “F” in the aligned shoulder-coil bracket holes (2 left side + 2 right side).
Note: opposite operation of point no.3; re-use the same screws.
8
Insert the drain pan, inclined as shown in “R”, and fit the drain pipe into the new hole “L” (created in the point
no.4).
Tighten the 4 Ø 3.9x9.5 screws “C” in the aligned shoulder-coil bracket holes (2 left side + 2 right side).
Note: opposite operation of point no.2; re-use the same screws.
9
Put back the panel “B”.
Tighten the 6 Ø 3.9x9.5 screws “A” (3 left side + 3 right side).
Note: opposite operation of point no.1; re-use the same screws.
10 Close the open holes in the left-hand shoulder “S” with closed-cell insulating tape.
Reversing the main coil from left to right
To reverse the coil, follow the above instructions but starting from the left-hand shoulder and not the right-hand one.
