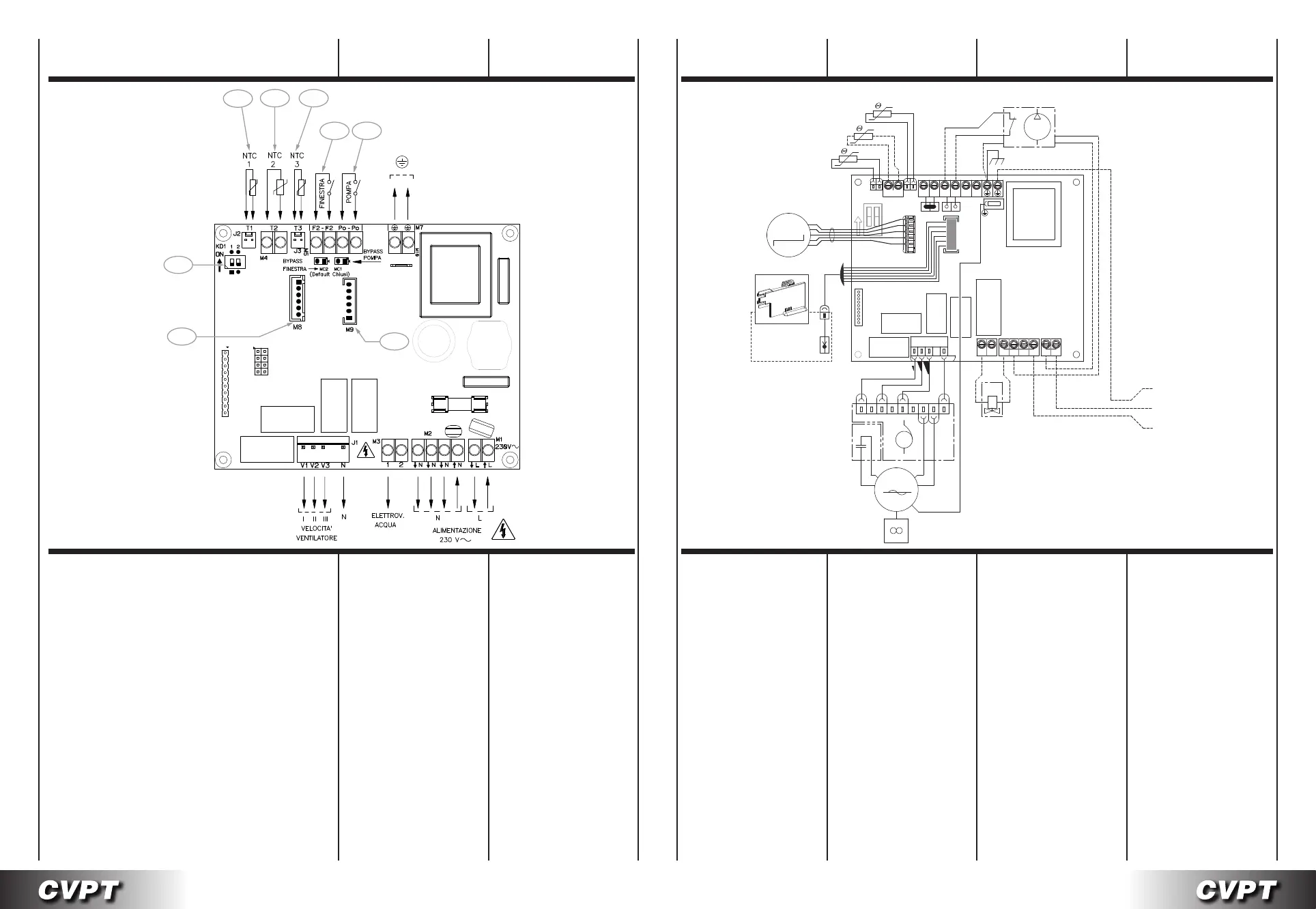

CLIVET ELFOSPACEWALL2 - Electronic Board Details; Electronic Board Diagram; Component Legend

CF
MP
D1
T2
T1
T3
M8
M9
2
M9
M6
M4
M5
J3J2
E
V
3
N
M10
CVPT
Board
WH
OG
GN
C1
BK
RD
230V
YE
F2 P0 P0 10 0V
M7
M8
1
B1
PE
N
L
V
1
V
2
6 speed
M
M1
AT
M
50Hz
BK
BU
N
MC3
L
N
N
N
N
21
J1
T2T1 T3 F2
N
PE
M1
M2
M3
LL
MC2
MC1
ON
GNYE
MP
230Vac 50Hz
T1
T2
T3
M2
Ricevitore / Receiver
Récepteur / Empfänger
Receptor / Ontvanger
(OPTIONAL)
18 18A
AT = Autotrasformatore
C1 = Condensatore
D1 = Dip Switch
di configurazione
E = Elettrovalvola
T1 = Sonda aria (posta
in ripresa dell’apparecchio)
T2 = Sonda Change-Over
(optional)
T3 = Sonda di minima
M1= Motoventilatore
M2 = Motore Flap
M8 = Connettore Flap
M9 = Connettore
ricevitore infrarossi
CF = F2-F2 Contatto pulito
finestra aperta / presenza
persona.
Se aperto l’unità si ferma
MP = Pompa
di evacuazione consensa
AT = Autotransformer
C1 = Capacitor
D1 = Configuration dipswitches
E = Water valve
T1 = Air probe (fitted
at the appliance intake)
T2 = Change-Over probe
(optional)
T3 = Minimum probe
M1= Fan
M2 = Flap Motor
M8 = Flap Connector
M9 = Infra-red
receiver connector
CF = F2-F2 Window
open / person presence
voltage-free contact.
If open the unit stops
MP = Condensate pump
AT = Autotrasformateur
C1 = Condensateur
D1 = Dip Switch
de configuration
E = Électrovanne
T1 = Sonde air (placée
sur la reprise de l’appareil)
T2 = Sonde Change-Over
(option)
T3 = Sonde de temp. minimale
M1= Motoventilateur
M2 = Moteur Flap
M8 = Connecteur Flap
M9 = Connecteur
récepteur infrarouge
CF = F2-F2 Plot libre
fenêtre ouverte / détection
présence. S’il est ouvert
l’unité s’arrête
MP = Pompe d’evacuation
des condensats
AT = Spartransformator
C1 = Kondensator
D1 = Konfigurations-Dip-Switch
E = Elektroventil
T1 = Lufttemperaturfühler
(am Ansaugteil des Geräts)
T2 = Change-Over-Fühler
(Option)
T3 = Mindesttemperaturfühler
M1= Motorventilator
M2 = Flap-Motor
M8 = Flap-Anschluss
M9 = Anschluss
Infrarot-Empfänger
CF = F2-F2 Kontakt
offenes Fenster/Personal-
anwesen- heit. Wenn offen,
schaltet sich das Gerät aus
MP = Kondensatpumpe
AT = Autotransformador
C1 = Condensador
D1 = Dip Switch
de configuración
E = Electroválvula
T1 = Sonda aire (colocada en
reanudación del aparato)
T2 = Sonda Change-Over
(opcional)
T3 = Sonda de mínima
M1= Motoventilador
M2 = Motor Flap
M8 = Conector Flap
M9 = Conector
receptor infrarrojos
CF = F2-F2 Contacto limpio
ventana abierta / presencia
persona. Si está abierto
la unidad se para
MP = Bomba de evacuación
de condensados
AT = Autotransformator
C1 = Condensator
D1 = Dimschakelaar configuratie
E = Elektromagnetische
T1 = Luchtsonde
(vlakbij het apparaat)
T2 = Sonde Change-Over
(optie)
T3 = Minimumsonde
M1= Motorventilator
M2 = Flapmotor
M8 = Flapconnector
M9 = Connector
infraroodontvanger
CF = F2-F2 Schoon contact
open raam / aanwezigheid
persoon. Indien open stopt
de eenheid
MP = Condensatwaterpomp
SCHEDA
ELETTRONICA
ELECTRONIC
BOARD
CARTE
ELECTRONIQUE
ELEKTRONIK-
PLATINE
TARJETA
ELECTRÓNICA
ELEKTRONISCHE
FICHE
LEGENDA: KEY: LÉGENDE: LEGENDE: LEYENDA: LEGENDE:
