Table 6.1: Length Specications of Split Type
Outdoor Unit (unit: mm/inch)

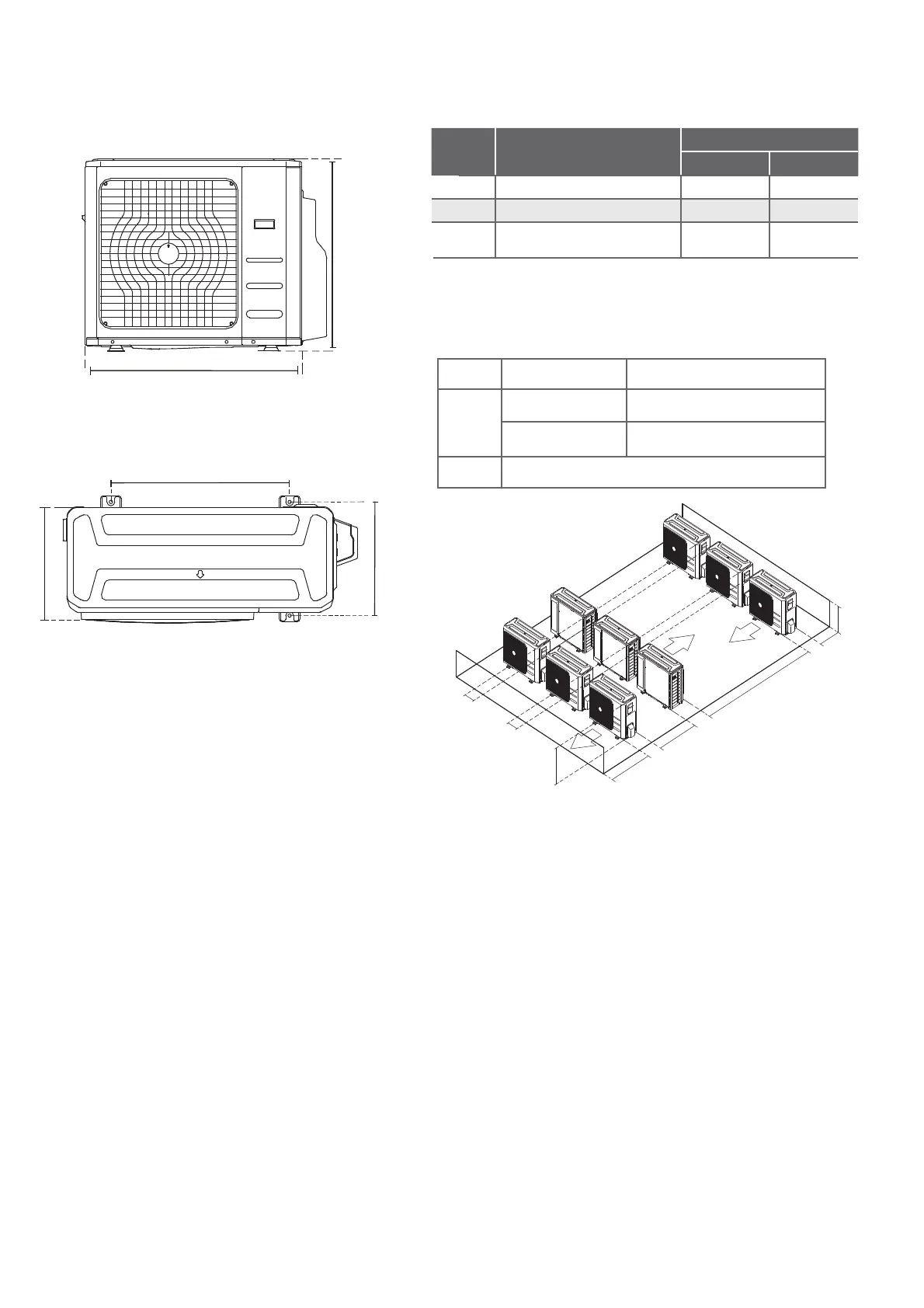

Split Type Outdoor Unit
(Refer to Fig 6.4, 6.5, 6.9 and Table 6.1)
W
H
Fig. 6.4
Outdoor Unit Dimensions
W x H x D
Size
Mounting Dimensions
Distance A Distance B
Fig. 6.7
L
H
300 cm / 118” or more
A
60 cm / 23.6”
or more
150 cm / 59”
or more
25 cm / 9.8”
or more
25 cm / 9.8”
or more
Rows of series installation
L ≤ H
L ≤ 1/2H
LA
25 cm / 9.8” or more
1/2H < L ≤ H 30 cm / 11.8” or more
L > H
Can not be installed
Table 6.2 The relations between H, A and L
are as follows.
Fig. 6.5
A
B
D
946x810x410 (37,2x31,9x16,14)
673 (26,5)
403 (15,87)
845x702x363 (33,27x27,6x14,3) 540 (21,26)
350 (13,8)
800x554x333 (31,5x21,8x13,1)
514 (20,24)
41M/53M
61M/79M
82M/105M
/125M
340 (13,39)
12
