M07J40G8-00 21/07/08 page 40

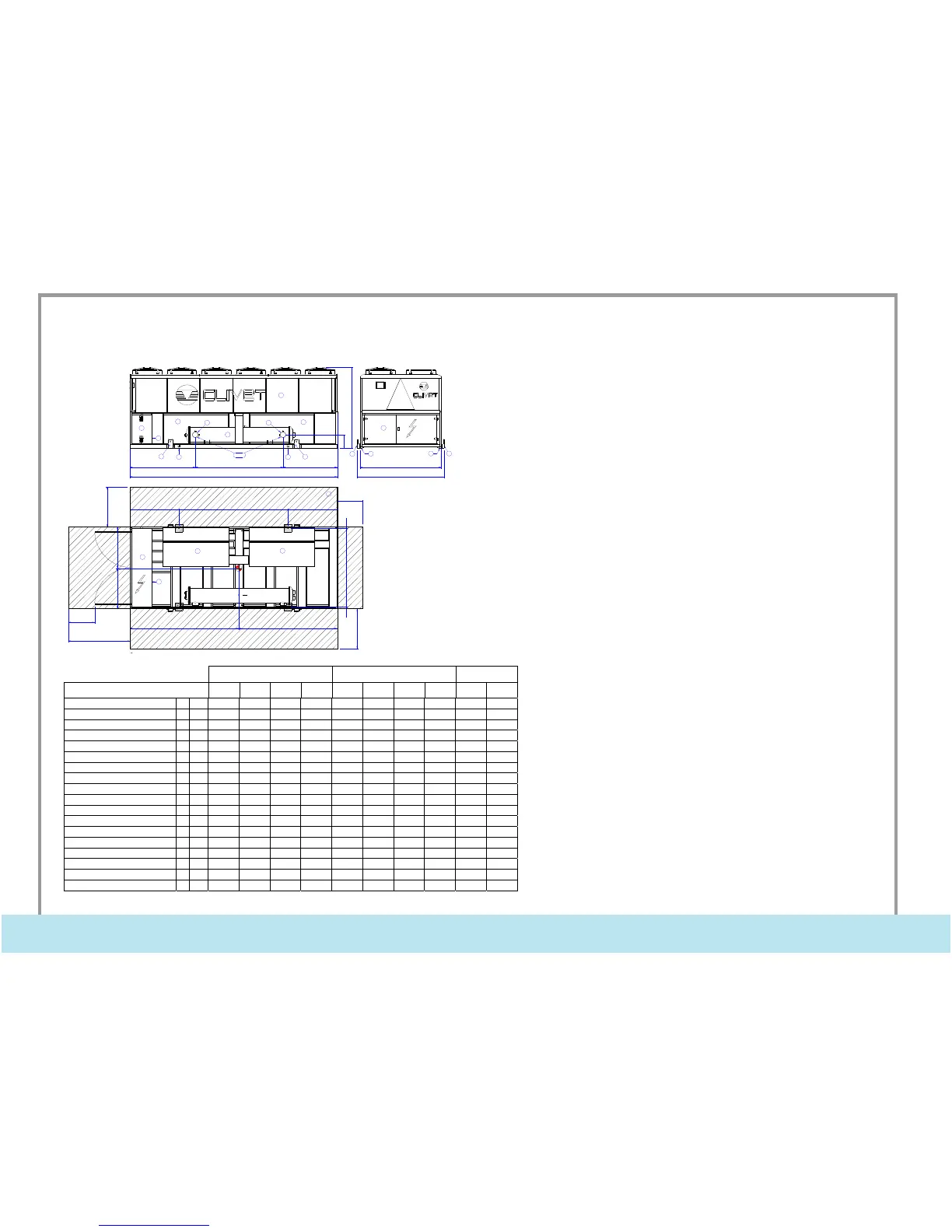

DIMENSIONS
1
2
3
3
4
4
4
4
3
3
5
5
7
7
6
9 8
O.D.
6
7
7
5
14
G
W1 W2
W3 W4
2220 (+ECOBREEZE=2250)
5704
A B C
D
2239
2385
1352 3000 1352
1100
(12)
700
(10)
1100
(12)
1690
(13)
723
(11)
42 2155 42
PO
M N
ST SC LN
SIZE 2.160 2.180 2.190 2.200 2.160 2.180 2.190 2.200 2.160 2.180
A
mm
2147 2147 2147 1800 2147 2147 2147 1800 2147 2147
B mm
2450 2450 2450 2412 2450 2450 2450 2412 2450 2450
C mm
1107 1107 1107 1492 1107 1107 1107 1492 1107 1107
D mm
331 331 331 371 331 331 331 371 331 331
M mm
2738 2739 2724 2763 2753 2754 2739 2772 2753 2756
N mm
2966 2965 2980 2941 2951 2950 2965 2932 2951 2948
O mm
1298 1300 1300 1267 1322 1324 1323 1290 1322 1319
P mm
941 939 939 972 917 915 916 949 917 920
OD mm
141.3 141.3 141.3 168.3 141.3 141.3 141.3 168.3 141.3 141.3
Length mm
5704 5704 5704 5704 5704 5704 5704 5704 5704 5704
Depth mm
2239 2239 2239 2239 2239 2239 2239 2239 2239 2239
Height mm
2220 2220 2220 2220 2220 2220 2220 2220 2220 2220
W1 kg
1278 1284 1360 1419 1363 1370 1446 1504 1363 1399
W2 kg
1191 1198 1258 1342 1285 1291 1351 1435 1285 1320
W3 kg
1090 1094 1159 1242 1137 1140 1206 1289 1137 1169
W4 kg
1003 1007 1057 1166 1058 1062 1111 1220 1058 1091
Operating weight
kg
4563 4584 4834 5169 4843 4864 5114 5449 4843 4980
Shipping weight
kg
4399 4425 4682 4906 4679 4705 4962 5186 4679 4821
Particular accessories, executions or versions can bring about a great variation of the mass represented here. Please contact our Technical Department.
(1) INTERNAL EXCHANGER (EVAPORATOR)
(2) EXTERNAL EXCHANGER (CONDENSER)
(3) HOLE TO HANG UNIT
(4) LIFTING BRACKETS (REMOVABLE, IF REQUIRED, AFTER POSITIONING THE
UNIT)
(5) ELECTRICAL PANEL
(6) POWER INPUT
(7) SOUND PROOF ENCLOSURE ( ONLY IN THE EXPECTED VERSIONS)
(8) INTERNAL EXCHANGER WATER INLET
(9) INTERNAL EXCHANGER WATER OUTLET
(10) MINIMUM DIMENSION FOR A SAFE PASSAGE.
(11) MINIMUM DIMENSION FOR A SAFE PASSAGE WHEN THE DOOR OF THE
ELECTRICAL SWITCHBOARD IS OPEN.
(12) MINIMUM DIMENSION FOR A PROPER AIR FLOW TO THE CONDENSER COIL.
IN THE CASE OF TWO UNITS SIDE BY SIDE THIS DISTANCE MUST BE
DOUBLED
(13) MINIMUM DIMENSION ON THE ELECTRICAL SWITCHBOARD SIDE.
(14) CLEARANCE ACCESS RECOMMENDED
(G) BARYCENTRE
