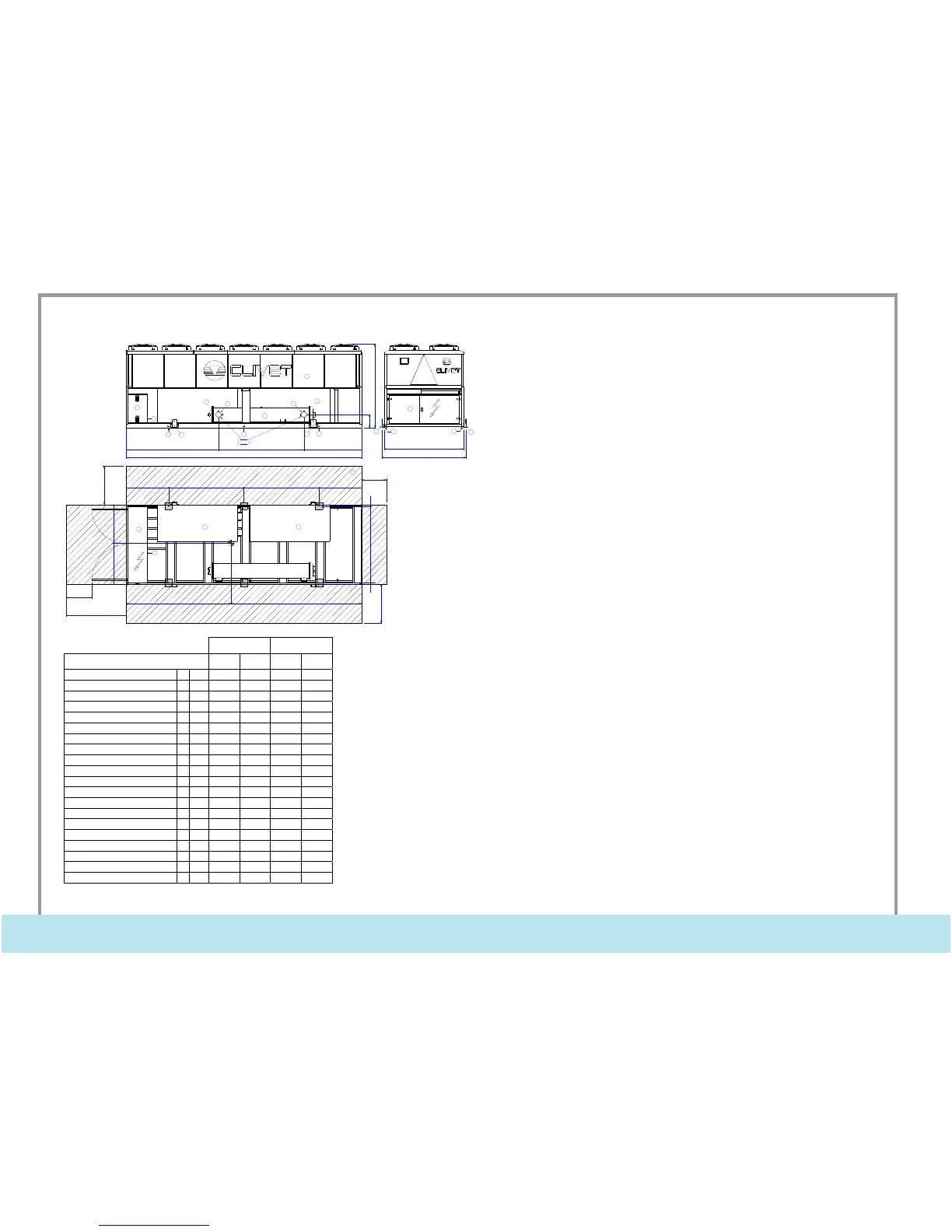

M07J40G8-00 21/07/08 page 42
1
2
4
4
5
5
7
7
7
7
14
G
8
9
6
3
3
3
O.D.
4
4
3
3
5
6
W1 W3
W5 W6
W2
W4
1202
1100
(12)
700
(10)
1100
(12)
1690
(13)
723
(11)
42 2155 42
PO
M N
B
D
2370 (+ECOBREEZE=2400)
2239
2385
1202 2125 2125
6654
2615 1627
ST SC
SIZE 2.300 2.320 2.300 2.320
A
mm 2615 2615 2615 2615
B mm 2412 2412 2412 2412
C mm 1627 1627 1627 1627
D mm 371 371 371 371
M mm 3114 3161 3126 3165
N mm 3540 3493 3528 3489
O mm 1202 1202 1237 1204
P mm 1037 1037 1002 1035
OD mm 168.3 168.3 168.3 168.3
Length
mm 6654 6654 6654 6654
Depth
mm 2239 2239 2239 2239
Height
mm 2370 2370 2370 2370
W1 kg 1079 1086 1151 1127
W2 kg 1103 1245 1248 1347
W3 kg 782 837 845 872
W4 kg 930 937 932 968
W5 kg 952 1074 1010 1158
W6 kg 674 723 684 750
Operating weight
kg 5520 5902 5870 6222
Shipping weight
kg 5279 5661 5629 5981
Particular accessories, executions or versions can bring about a great variation of the mass represented here. Please contact our Technical Department.
(1) INTERNAL EXCHANGER (EVAPORATOR)
(2) EXTERNAL EXCHANGER (CONDENSER)
(3) HOLE TO HANG UNIT
(4) LIFTING BRACKETS (REMOVABLE, IF REQUIRED, AFTER
POSITIONING THE UNIT)
(5) ELECTRICAL PANEL
(6) POWER INPUT
(7) SOUND PROOF ENCLOSURE ( ONLY IN THE EXPECTED VERSIONS)
(8) INTERNAL EXCHANGER WATER INLET
(9) INTERNAL EXCHANGER WATER OUTLET
(10) MINIMUM DIMENSION FOR A SAFE PASSAGE.
(11) MINIMUM DIMENSION FOR A SAFE PASSAGE WHEN THE DOOR OF
THE ELECTRICAL SWITCHBOARD IS OPEN.
(12) MINIMUM DIMENSION FOR A PROPER AIR FLOW TO THE
CONDENSER COIL.
IN THE CASE OF TWO UNITS SIDE BY SIDE THIS DISTANCE MUST BE
DOUBLED
(13) MINIMUM DIMENSION ON THE ELECTRICAL SWITCHBOARD SIDE.
(14) CLEARANCE ACCESS RECOMMENDED
(G) BARYCENTRE
