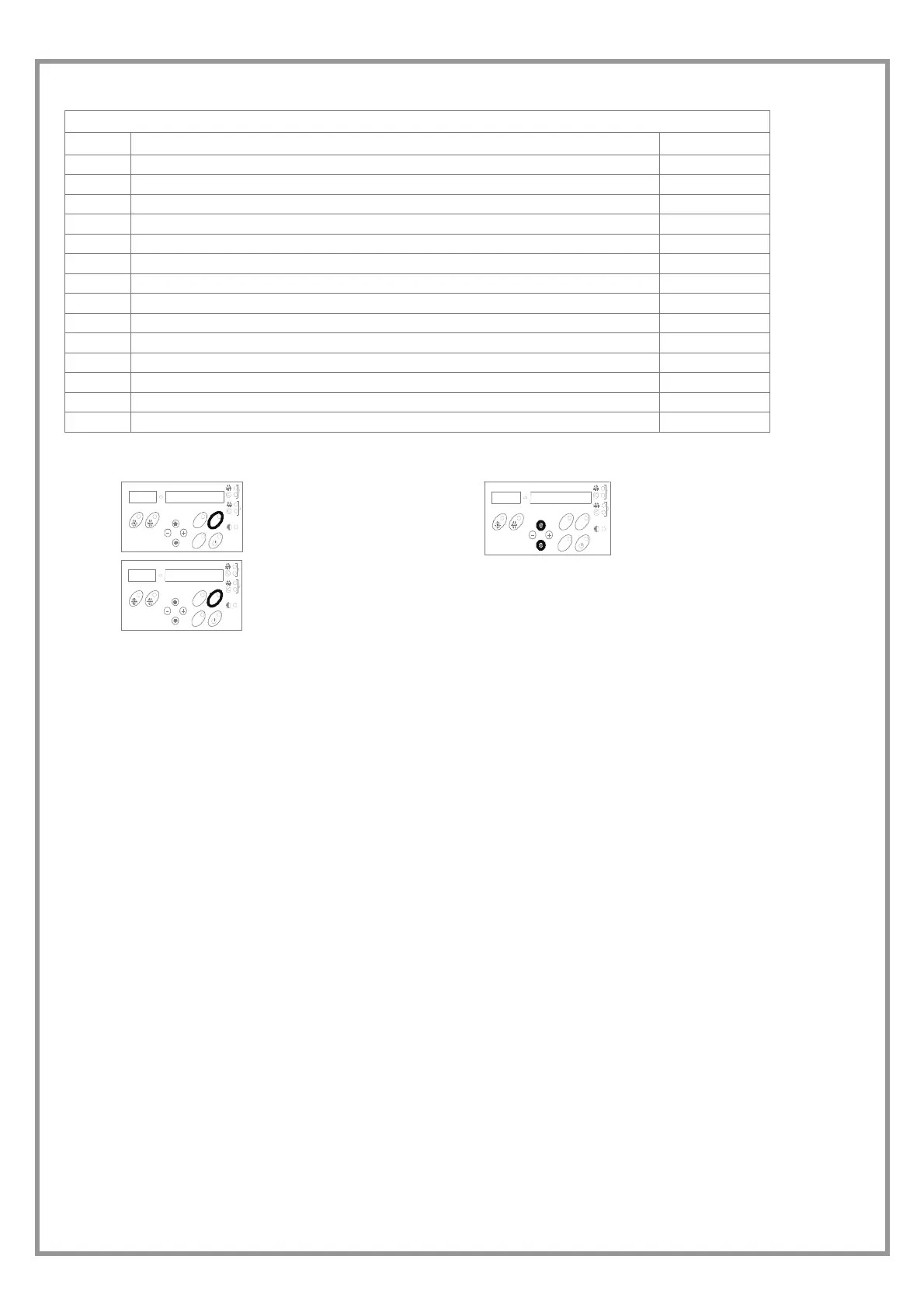

M0G140F7-01 06/11/07 pag 27
Visible status from remote keyboard or service keyboard
INDEX DESCRIPTION VALUE
20
Outdoor Humidity 0-100%
21
Machine Clock - fed unit hours Num
22
Working hours C1 Num
23
Pickups C1 Num
24
Working hours C2 Num
25
Pickups C2
Num
30
Keypad software AS – t
31
Year of certification of the keyboard SW 2007
32
Month of certification of the keyboard SW 03
33
Day of certification of the keyboard SW 04
34
Base Software AS – b
35
Year of certification of the keyboard SW 2007
36
Month of certification of the keyboard SW 1
37
Day of certification of the keyboard SW
11
STATUS DISPLAY
1
AL
AR
M
STATUS
SET
push STATUS button
2
AL
AR
M
S
T
A
T
U
S
S
E
T
Select status
3
A
L
A
RM
S
TATUS
SET
STATUS to esc
ALARMS
BEFORE RESETTING THE ALARM, IDENTIFY AND ELIMINATE THE CAUSE OF ITS ACTIVATION.
REPEATED RESETS CAN CAUSE IRREVERSIBLE DAMAGES.
The ALARMS show a potentially dangerous situation for machine safety.
Before resetting the alarm, discover and remove the cause: repeated resetting could cause irreversible damage. To avoid this,
the unit can only be reset MANUALLY from the keyboard (only when the cause for the alarm has been removed).
PRE-ALARMS and SIGNALS warn of a risky situation. These could be acceptable only if they happen occasionally or in
transitory situations (for example when the plant is being started up).
They are reset AUTOMATICALLY, as soon as the cause has been removed, without any input from the keyboard.
The pre-alarms are signalled by the fixed C code (not flashing) and on the right the control temperature.
The FAULTS warn of problems with the probes and transducers, and are reset AUTOMATICALLY to allow the unit to continue
running, perhaps with fewer functions.
In case of doubt, always contact an authorised service centre.
The presence of an alarm is signalled by the ALARM CODE flashing and the time at which the alarm/alarms occurred.
The cumulative block relay activates simultaneously to the alarm code visualization.
Certain alarms, in particular PRE-ALARMS, do not activate the relays.
