CLIVET WSAT-XEE 552 - 5.9 REMOTE KEYPAD

68 pages

Save Page as PDF

To Next Page

To Previous Page

5 - ELECTRICAL CONNECTIONS

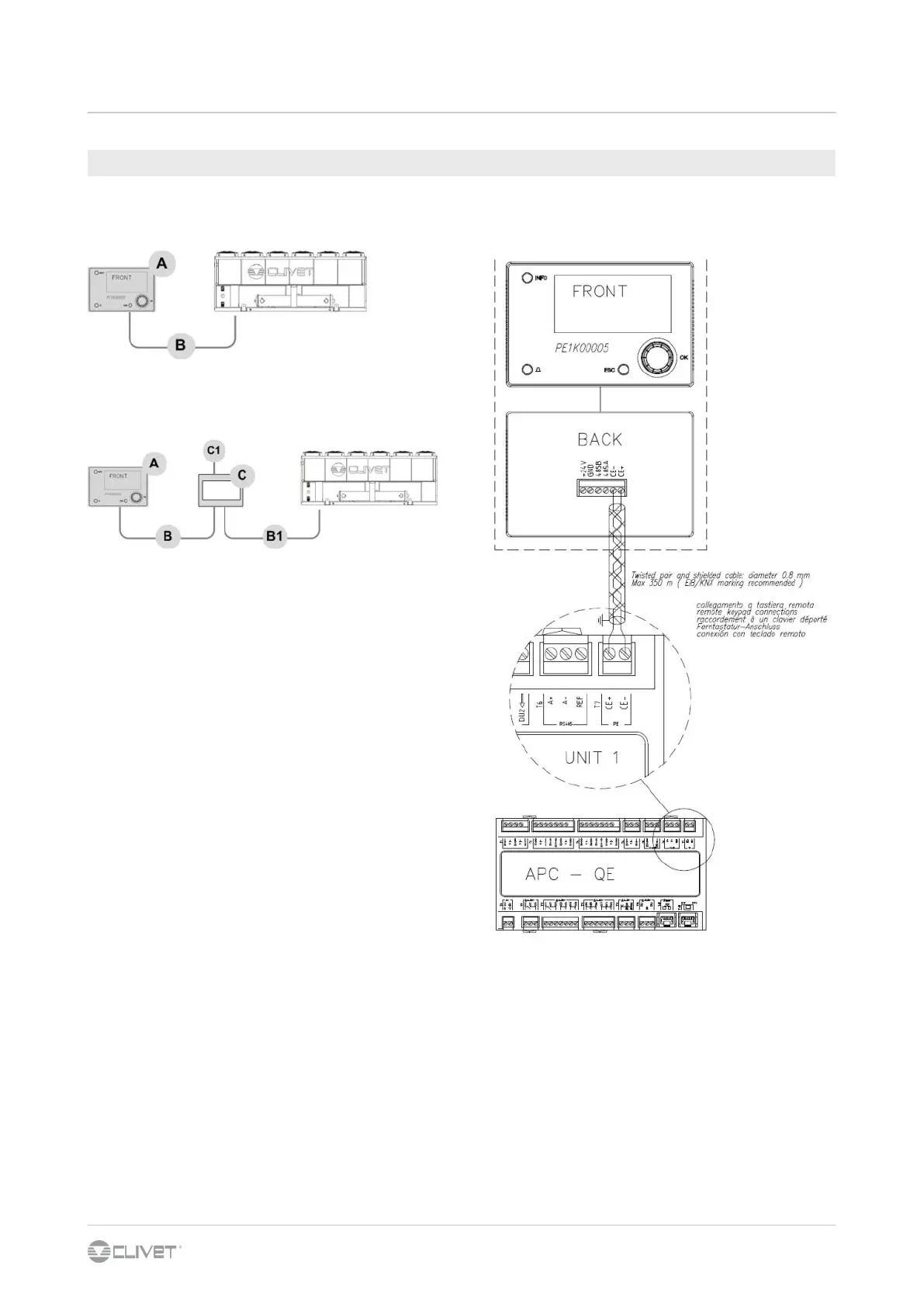

A remote keypad

B = B1 KNX bus, max 350 mt

twisted pair with shield, Ø 0,8 mm

EIB/KNX cable marking recommended

C power supply unit N125/11 5WG1 125-1AB11

C1 AC 120...230 V, 50...60 Hz

Distance up to 350 mt

Distance up to 700 mt

Connections

5.9 REMOTE KEYPAD
