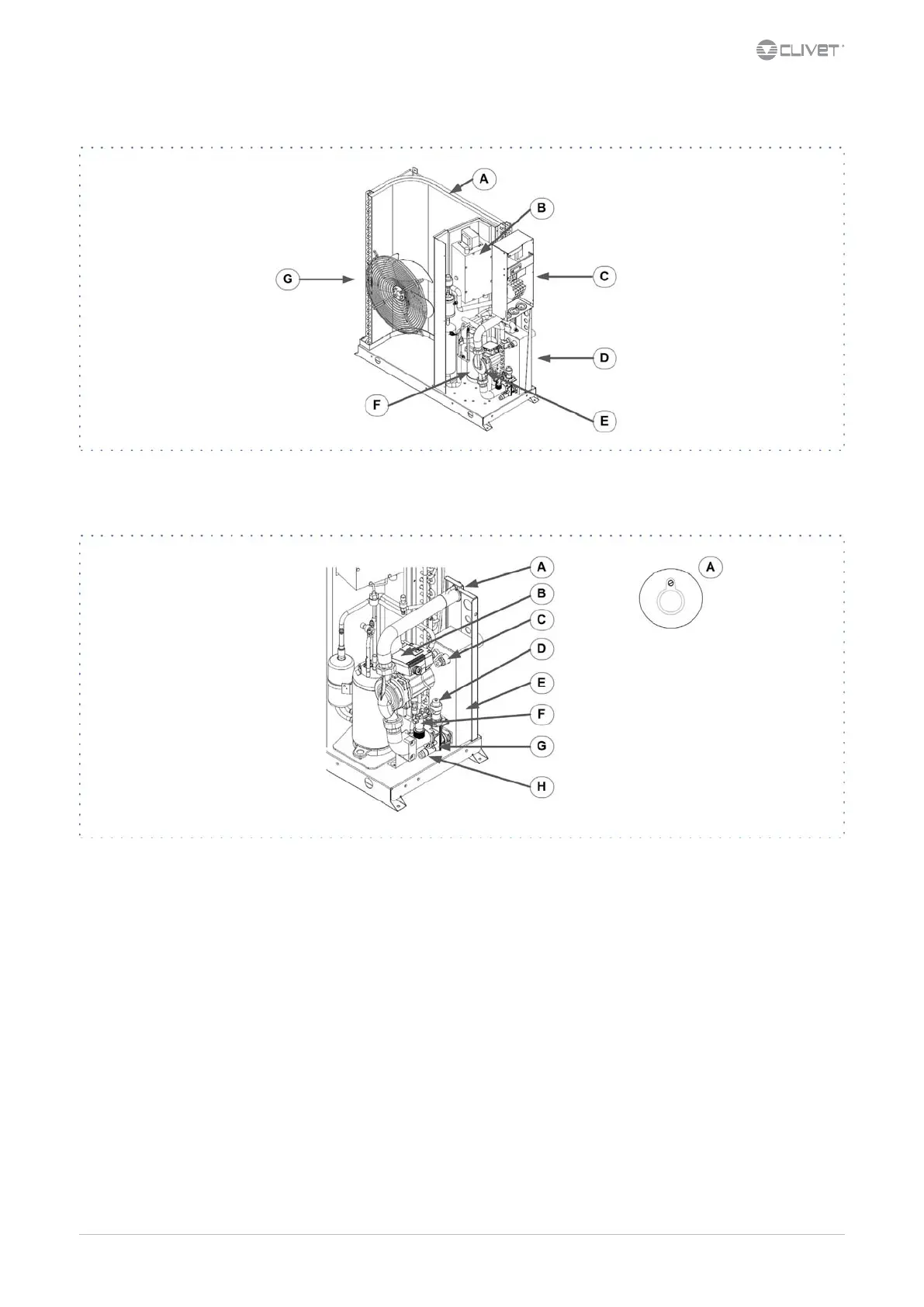

9.5 Main components
(sizes 21÷71)
A. Coil
B. Inverter
C. Electrical panel
D. Exchanger
E. pump
F. Compressor
G. Fan
A. vent
B. pump
C. input probe
D. Safety valve (6 Bar)
E. plate exchanger
F. Flow Switch
G. input probe
H. water outlet
