36 WSA
T
-XIN
21-171
M0Q940G14-03

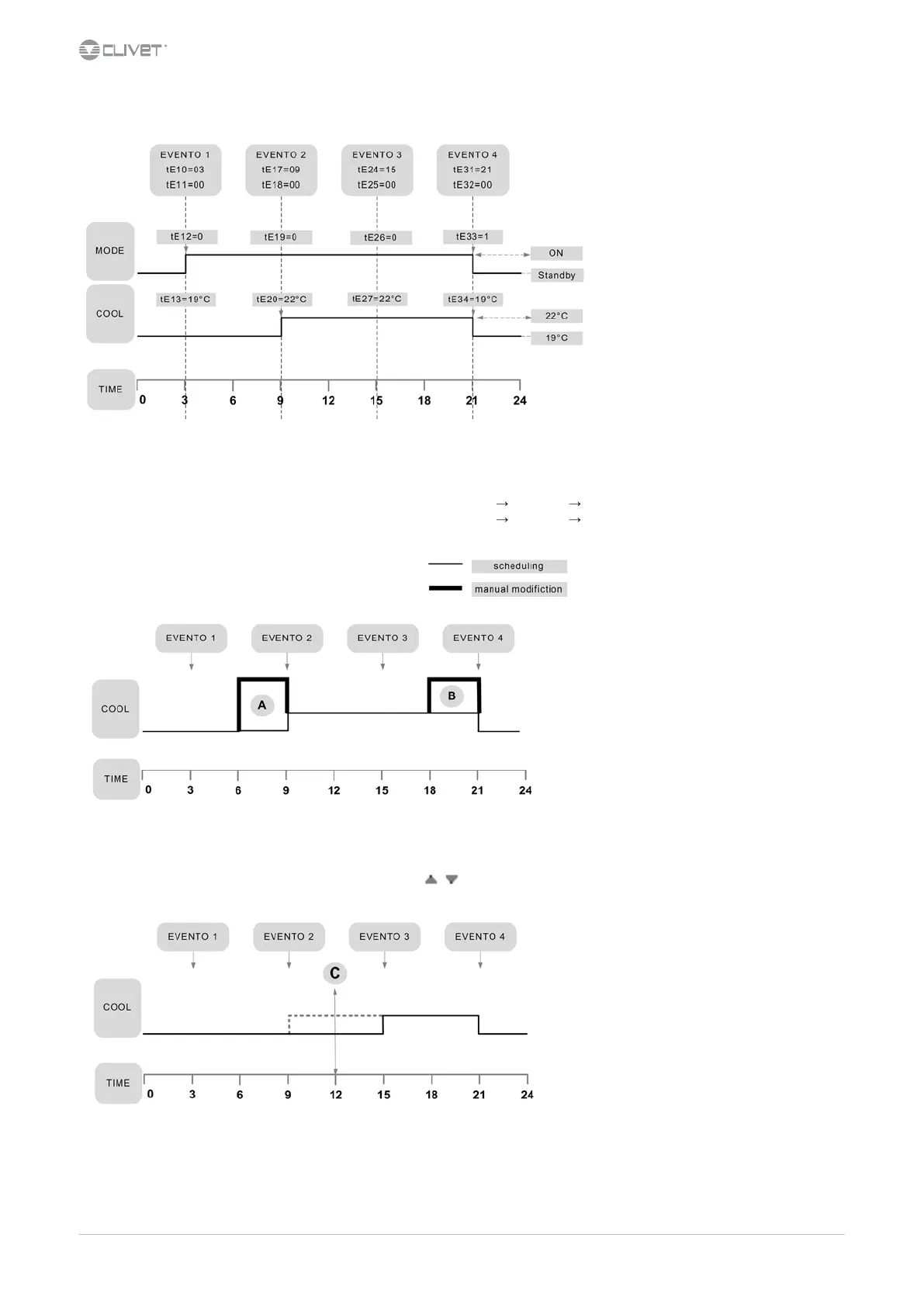

Example: scheduling 1
Example with active scheduling
A
manual modication of the cool setpoint:
key
Set
SP menu
Cool
B
manual modication of the cool setpoint:
key
Set
SP menu
Cool
Activation scheduling example
C
activation scheduling:
Keys
35
37
Table of Contents
Table of Contents
3
Index of Contents
3
Installation Quick Guide
5
General Description
6
Installation
6
Intended Use
6
Risk Situations
6
Data Update
7
Indications for the User
7
Unit Indentification
7
User Training
7
Handling
8
Reception
8
Storage
8
Packaging Removing
9
Positioning
10
Risk of Freezing
12
Water Connections
12
Water Features
12
Water Quality
12
Operation Sequence
13
Recommended Connection
13
Water Filter
13
Flow Switch
14
Electrical Connections
15
Electrical Data
15
Signals / Data Lines
15
Power Input
16
Electrical Panel
17
Connections Performer by Customer
20
Cascade Units
22
Remote Control
22
SA1 = on / Standby Remote
22
SA3 Second Setpoint Enabling Switch
22
Preliminary Checks
23
Start-Up
23
Start-Up Sequence
23
Electric Circuit
24
Refrigeration Circuit
24
Water Circuit
24
Compressor Crankcase Heaters
25
Remote Controls
25
Voltages
25
Water Set Point Compensation with Ambient Temperature
25
Minimum Pump Speed Setting
26
Water Set Point Compensation with External Temperature
26
Circulating Pump: Anti-Lock Function
27
Circulating Pump: Energy Saving Mode
27
2014/68/UE PED Directive
28
Antifreeze Function with Circulating Pump
28
Start-Up Report
28
Control
29
Display
29
Keys
29
Navigation
30
On/Off
30
Stand-By
30
Change the Operating Mode
31
Display of Inputs - Outputs
31
Water Setpoint Modification
31
Alarm Reset
32
Alarms
32
Silenced Alarm
32
Alarm Log
33
Alarms Log Reset
33
Clock Setting
34
Setting Menu
34
Scheduling Management
35
Activation Scheduling Example
36
Example with Active Scheduling
36
Events Parameters
37
Ambient Temperature Display
38
Remote Control - Option
38
Inspections Frequency
40
Maintenance
40
Standby Mode
40
Unit Booklet
40
Main Components
41
Air Coil
43
Control Check List
43
Circulating Pumps
44
Electric Fans
44
Probe Position
44
Alarms - Status
45
Electronic Thermostatic Driver Alarm
45
Led Inverter
46
Status
46
Accessories
47
RCTX - Remote Control
47
Cable Characteristics
48
CMSC2X - Serial Communication Module with RS485 Serial Converter Kit
48
Kg4Up
49
KSAX - 100-Litre Water Circuit Breaker
50
AMRX - Rubber Antivibration Mounts
51
Decommissioning
52
Dismantling and Disposal
52
Residual Risks
53
General Technical Data
54
Technical Information
54
Sound Levels
56
Cooling
57
Dimensional Drawings
57
Operating Range
57
Dimensional Drawings - PREMIUM Version
58
Elfoenergy Extended Inverter 21 - 31 - 41
58
Elfoenergy Extended Inverter 81-91-101
60
Elfoenergy Extended Inverter 121 - 131 - 141
