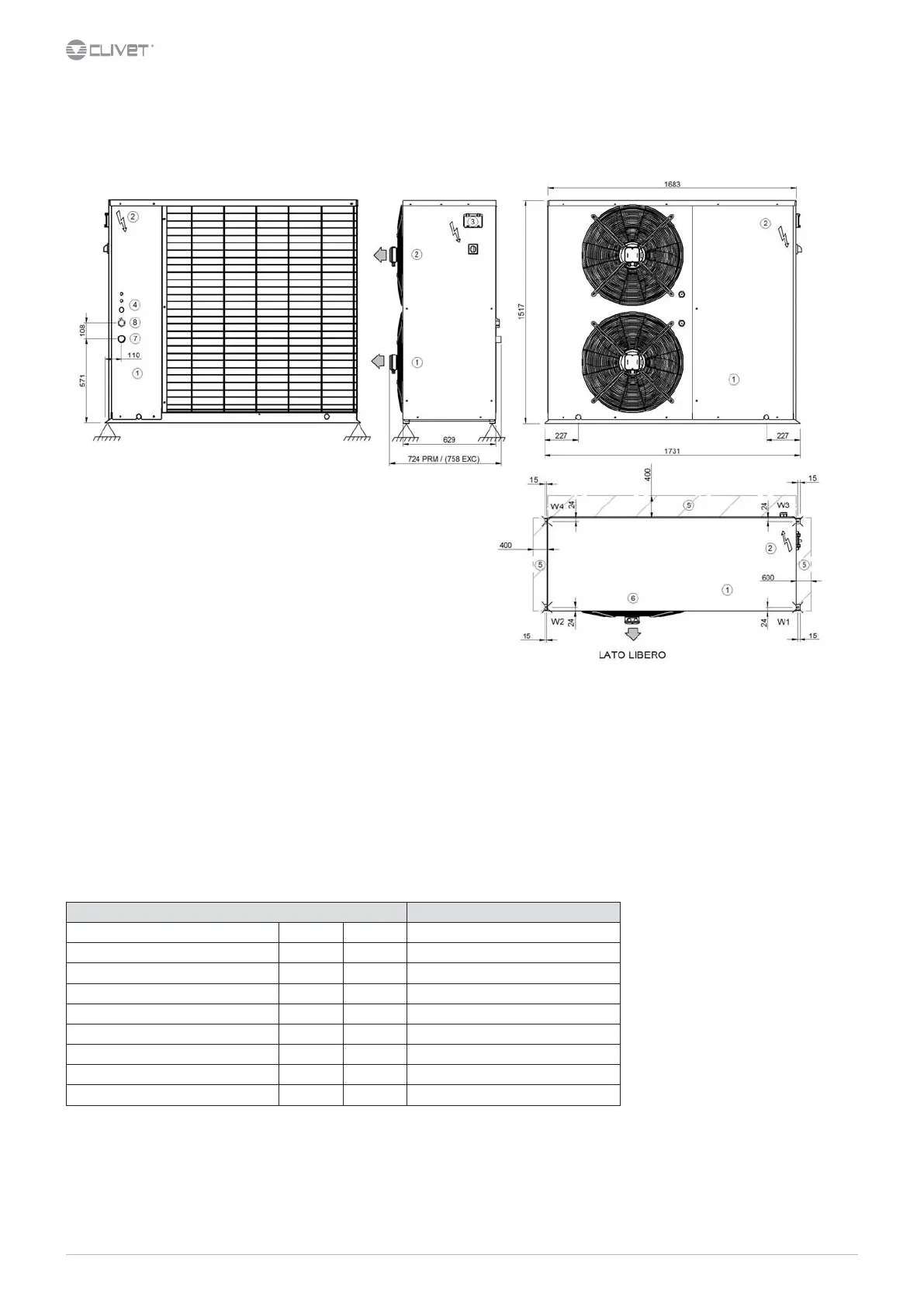

Dimensional drawings - EXCELLENCE Version
ELFOEnergy Extended Inverter 121
1. Compressor compartment
2.
Electr
ical panel
3.
Unit control keypad
4. Power input
5. Functional spaces
6.
Electric fan (supply - r
eturn)
7.
Internal exchanger water inlet (GAS F 1 1/4”)
8. Internal exchanger water outlet (GAS F 1 1/4”)
(M) Air supply
Size 121
Length mm 1731
Depth mm 724
Height mm 1517
W1 kg 70
W2 kg 55
W3 kg 110
W4 kg 75
Operating weight kg 310
Shipping weight kg 320
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DABQ9121 REV01
03/11/2015
