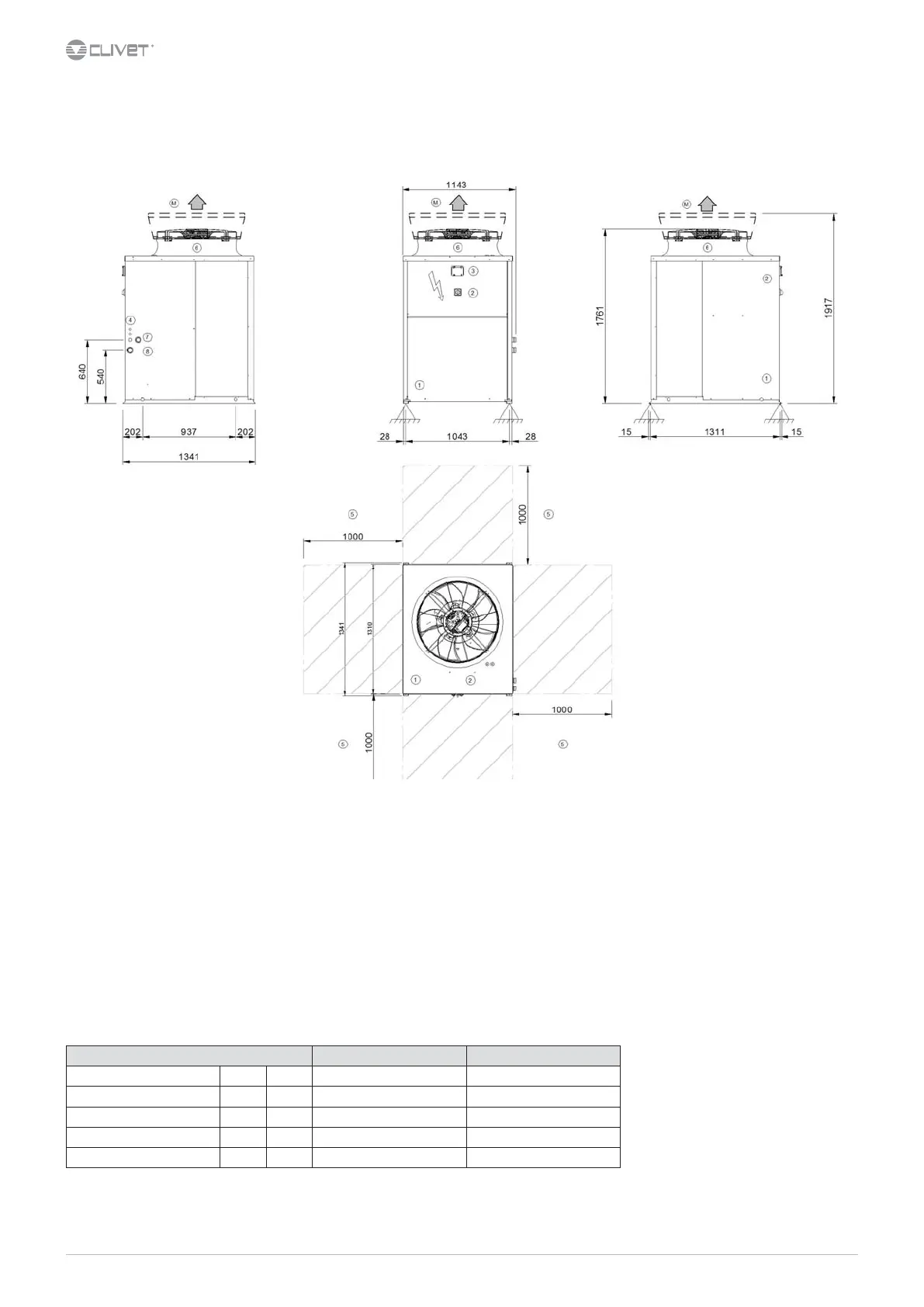

Dimensional drawings - EXCELLENCE Version
ELFOEnergy Extended Inverter 161 - 171
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Functional spaces
6. Electric fan (supply - return)
7. Internal exchanger water inlet (GAS Victaulic1” 1/2)
8. Internal exchanger water outlet
(GAS Victaulic1” 1/2)
(M) Air supply
Size 161 171
Length mm 1341 1341
Depth mm 1146 1146
Height mm 1770 1770
Operating weight kg 390 390
Shipping weight kg 400 400
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DABQ9161_171_1 REV01
Data: 21/10/2014
