9 - TECHNICAL INFORMATION
1
1
1
1
3
9
9
8 8
5 6
10
11
W1
W3
W4
W2
10
12
13
15
13
14
9 9
1
1
4
2
OD
4 - 7
7
3
OD1
8 8
1
1
1
18
18
19
19
16
17
OD2
OD3
5 - 6
1886
39 772 39
850
954
1000
1500
800
M N
PO
204 568
690 1573 799
3062
245 360 245
700
1000
295 76
109
76 295
1087 250 146 250
* 3372
ST EN
Size
135E 150F 165F 180F 135E 150F 165F 180F
M
mm 1509 1464 1470 1461 1493 1459 1459 1457
N
mm 1553 1598 1592 1601 1569 1603 1603 1605
O
mm 388 400 401 400 390 403 403 403
P
mm 462 450 449 450 460 447 447 447
OD
mm 89 89 89 89 89 89 89 89
OD1
mm 89 89 89 89 89 89 89 89
Length
mm 3062 3062 3062 3062 3062 3062 3062 3062
Depth
mm 850 850 850 850 850 850 850 850
Height
mm 1886 1886 1886 1886 1886 1886 1886 1886
W1
kg 523 621 637 641 558 661 685 692
W2
kg 508 562 601 592 530 600 627 632
W3
kg 617 695 718 726 654 731 758 765
W4
kg 600 629 678 671 621 663 693 698
Operating weight
kg 2247 2507 2633 2630 2363 2654 2763 2787
Shipping weight
kg 2170 2425 2549 2542 2286 2572 2679 2699
OD2
mm 114 114 114 114 114 114 114 114
OD3
mm 114 114 114 114 114 114 114 114
Particular accessories, executions or versions can bring about a great variation of the mass represented here. Please contact our Technical Department.
(1) COMPRESSOR
(2) INTERNAL EXCHANGER (EVAPORATOR)
(3) EXTERNAL EXCHANGER (CONDENSER)
(4) INTERNAL EXCHANGER WATER INLET
(5) INTERNAL EXCHANGER WATER OUTLET
(6) EXTERNAL EXCHANGER WATER INLET
(7) EXTERNAL EXCHANGER WATER OUTLET
(8) HOLE TO HANG UNIT
(9) LIFTING BRACKETS
(10) ELECTRICAL PANEL
(11) POWER INPUT
(12) MINIMUM DIMENSION ON THE ELECTRICAL SWITCHBOARD SIDE.
(13) MINIMUM DIMENSION FOR A SAFE PASSAGE.
(14) MINIMUM DIMENSION FOR MAINTENANCE.
(15) MINIMUM DIMENSION FOR WATER CONNECTIONS.
(16) HYDROPACK UTILITY SIDE
(17) HYDROPACK SOURCE SIDE
(18) PUMPS SUCTION
(19) PUMPS SUPPLY
(*) UNIT LENGTH WITH ACCESSORIES CEHU / CEHS "EXCHANGER - HYDRONIC UNIT
CONNECTION SET"

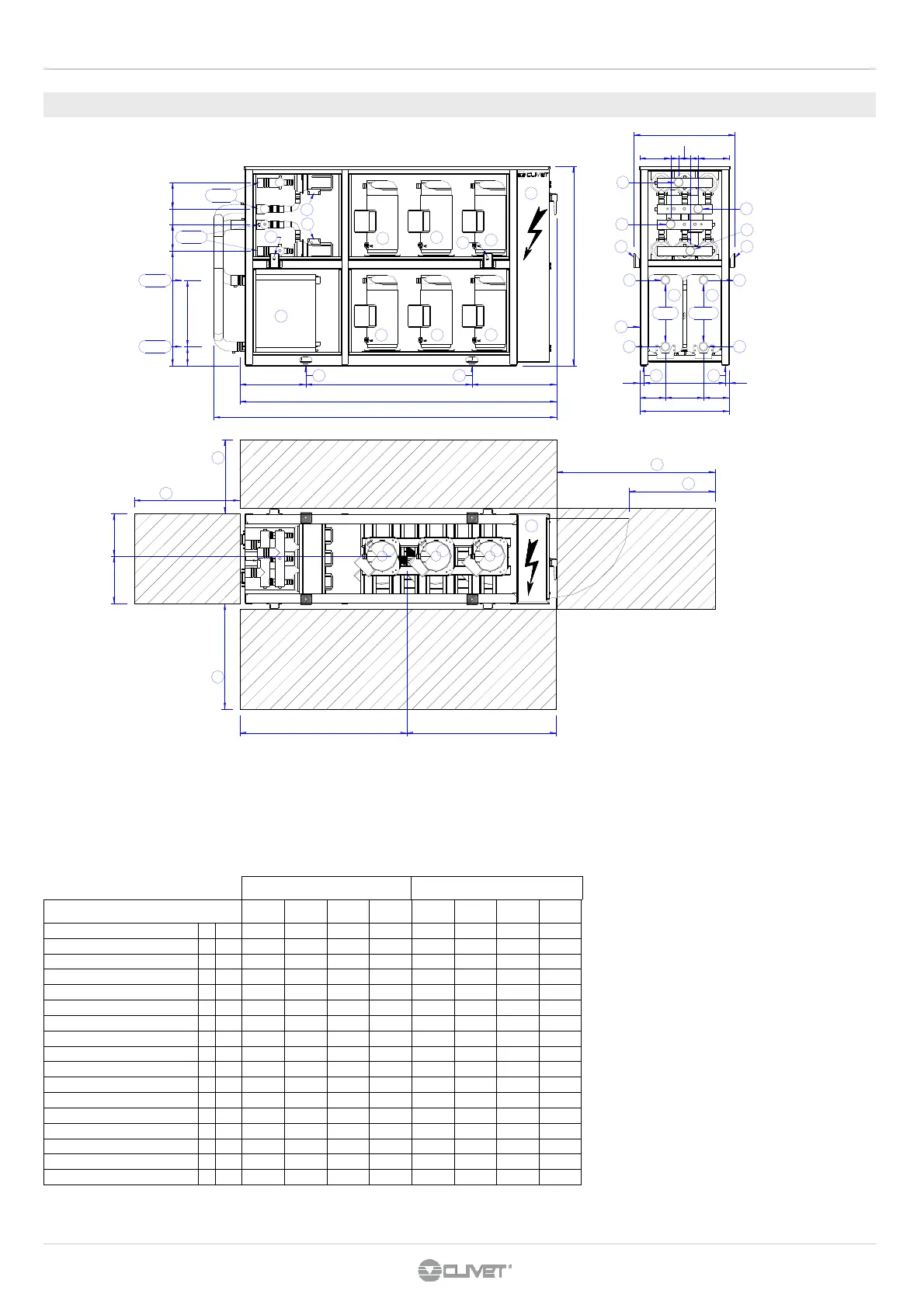

DIMENSIONS: WSH-XSC 135E-150F-165F-180F
