Cloud CV SERIES Manual

Clearly better sound

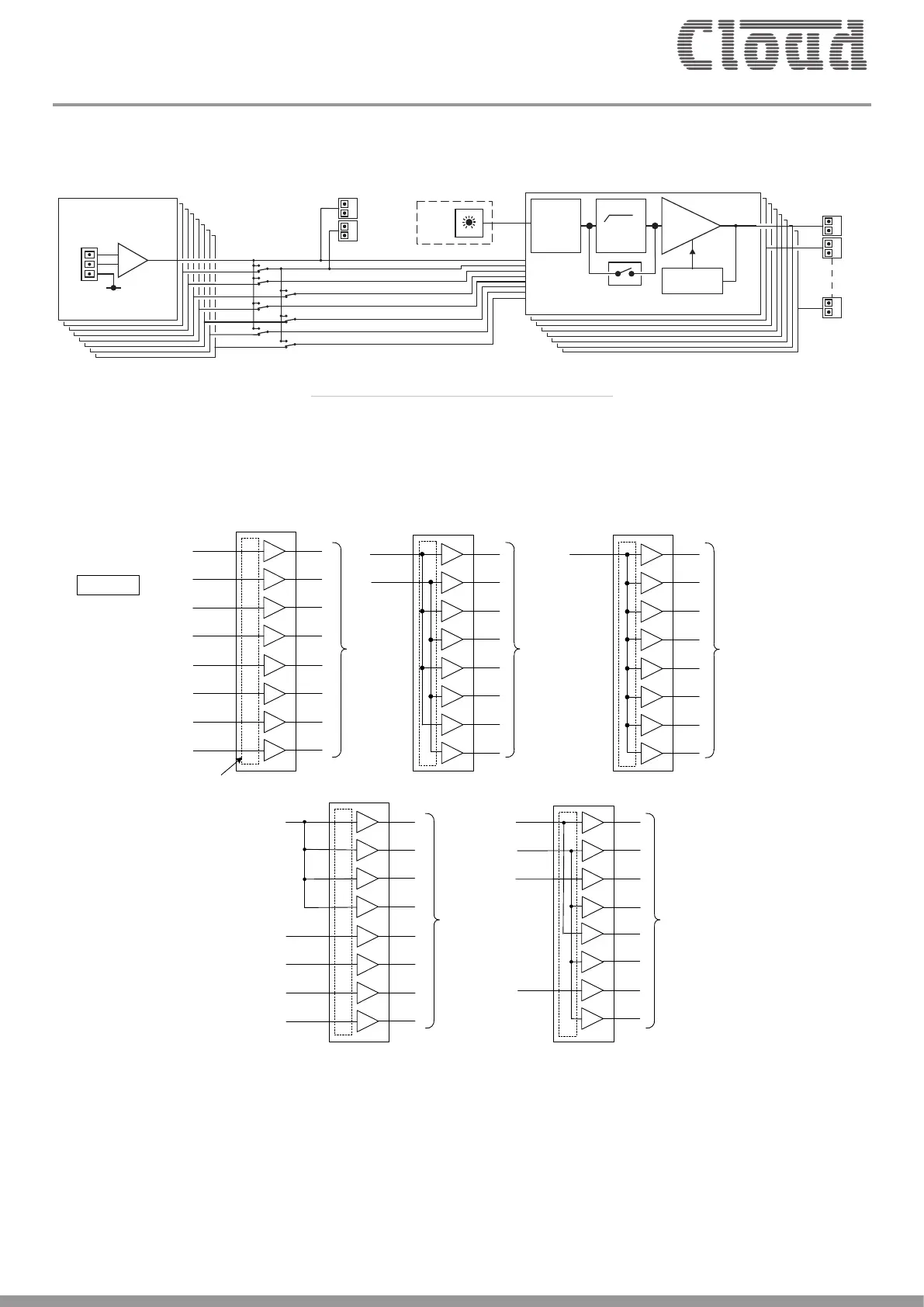

Block Diagram
PROTECT
CHANNEL 1
65Hz
LEVEL
CONTROL
SPEAKER
OUTPUTS
ONE CHANNEL SHOWN FOR CLARITY
1
2
n
AUX1
AUX2
ROUTING
OPTIONAL
REMOTE
LEVEL
* 8 CHANNEL MODEL SHOWN, OTHER MODELS
HAVE REDUCED CHANNEL COUNT
Input Routing
The input routing switches permit various permutations of mono, stereo and multi-channel operation without any external parallel wiring.
Some possibilities are shown below (CV8125 shown as example):
INPUT ROUTING
SECTION
IN 1
IN 2
IN 3
IN 4
8 X MONO CHANNELS
MONO PARALLEL
CV-8125
IN 5
IN 6
IN 7
IN 8
8 X OUTPUTS
L (IN 1)
4 x STEREO
R (IN 2)
8 X OUTPUTS
L (IN 1)
8 X OUTPUTS
IN 1
4 x MONO CHANNELS
+ 4 PARALLELED CHANNELS
IN 5
IN 6
IN 7
IN 8
8 X OUTPUTS 8 X OUTPUTS
2 x MONO
+ 2 x PARALLELED CHANNELS
+ 4 x PARALLELED CHANNELS
IN 1
IN 2
IN 3
IN 7
Although the routing options available using the rear panel switches are likely to suit most applications, even greater flexibility of routing is
available using the web browser pages, which allow any amplifier channel to be sourced from any physical input (or none) without restriction.
