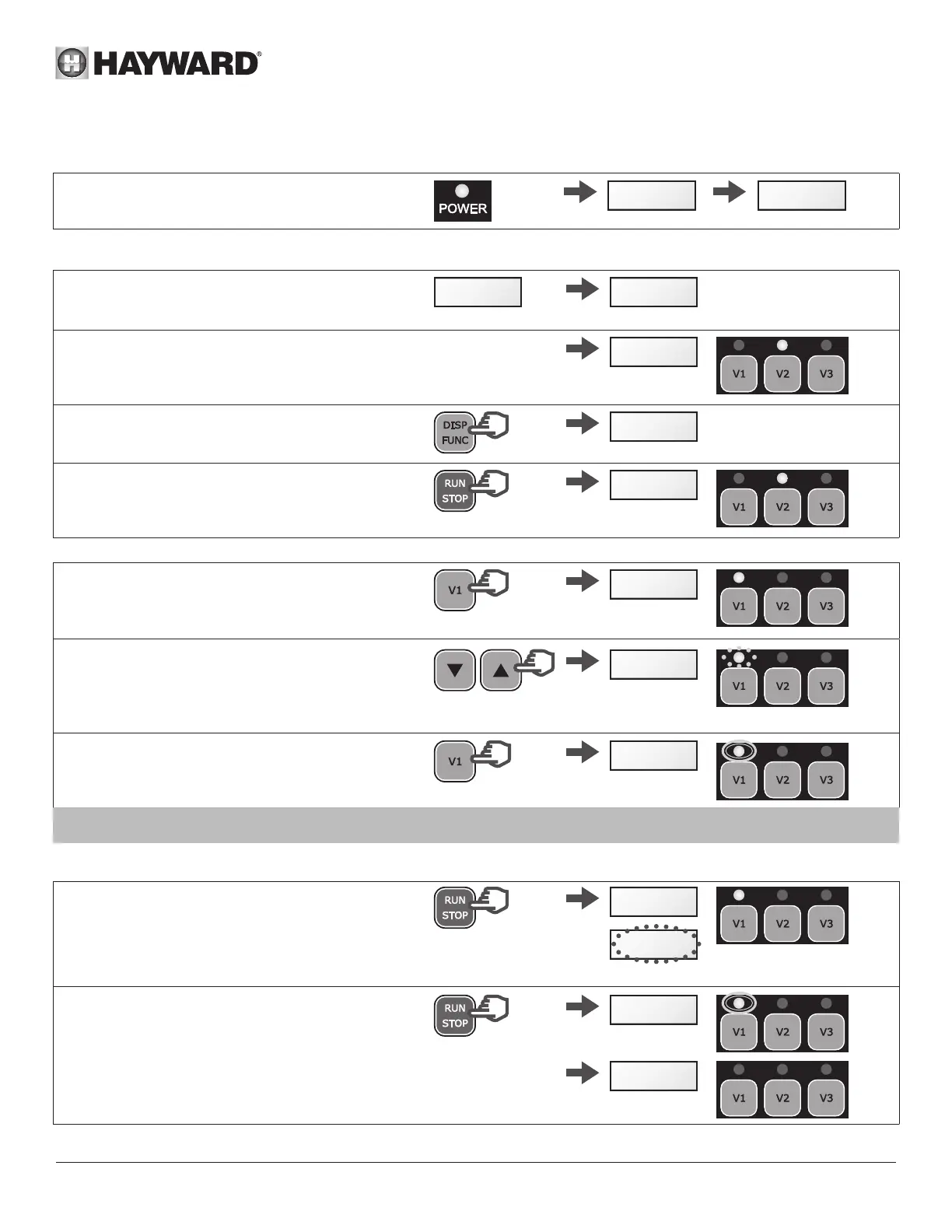

3. OPERATING THE PUMP
3.1 Power on
'Power' lights up and an LCD test runs on screen,
then the software version is displayed on screen
r1626
88888
. . . . .
. . .
3.2 Priming phase
After switching on the pump, the priming phase starts automatically (this is the same after restarting the pump).
Priming phase begins automatically:
• The speed will climb to 3000 rpm and will last 240
seconds (default settings)
Pr 3000
End of priming phase:
• The pump will stabilize at V2 by default or at the
last recorded speed.
• The corresponding LED lights up (Manual mode)
2400
To display the remaining time of the priming phase:
• Press DISP/FUNC
• The remaining time is displayed in seconds
219
To stop the priming phase before it finishes:
• Press RUN/STOP
• The speed will stabilize by default at V2 or at the
last recorded speed
2400
3.3 In Manual mode: selecting, setting and saving a custom speed
To select a speed:
• Press one of the speed preset buttons
• The default value will be displayed (in rpm)
• The corresponding LED will light up
1500
To set a new speed:
• Press the up / down buttons
• The LED will blink: setting speed
• Choose the speed you want (between 600 and
3000 rpm)
1640
To save the new speed:
• Press and hold the speed preset button for 3 s
• The LED will show a constant light once the speed
has been saved
>3s
1640
Note: The water flow generated by the pump speed must be adapted to the volume capacity of the installed parts (filter,
pipes...). If you are unsure call a professional.
3.4 Stopping / restarting the pump
To stop the pump:
• Press RUN/STOP
• The pump will stop and the speed preset LED will
remain illuminated
• In Manual mode the screen will display 'StoP'
In Timer mode the screen will flash 'StoP'
StoP
StoP
To restart the pump:
• Press RUN/STOP
• The pump will begin its priming phase (section 3.2)
• Speed stabilization:
in Manual mode this will be the last recorded speed
in Timer mode this will be the operating speed of
the Timer preset
1640
t2400
