CNC4PC C11G - Auto Tool Zero Connection

C11G (Rev. 8.2) User Manual
Revision: 01/27/2010 http://cnc4pc.com/TechDocs/C11GR8_2_User_Manual.pdf 17/21
7.4 Other connection.
Other connections can be implemented by setting the inputs to pull-up
resistor.

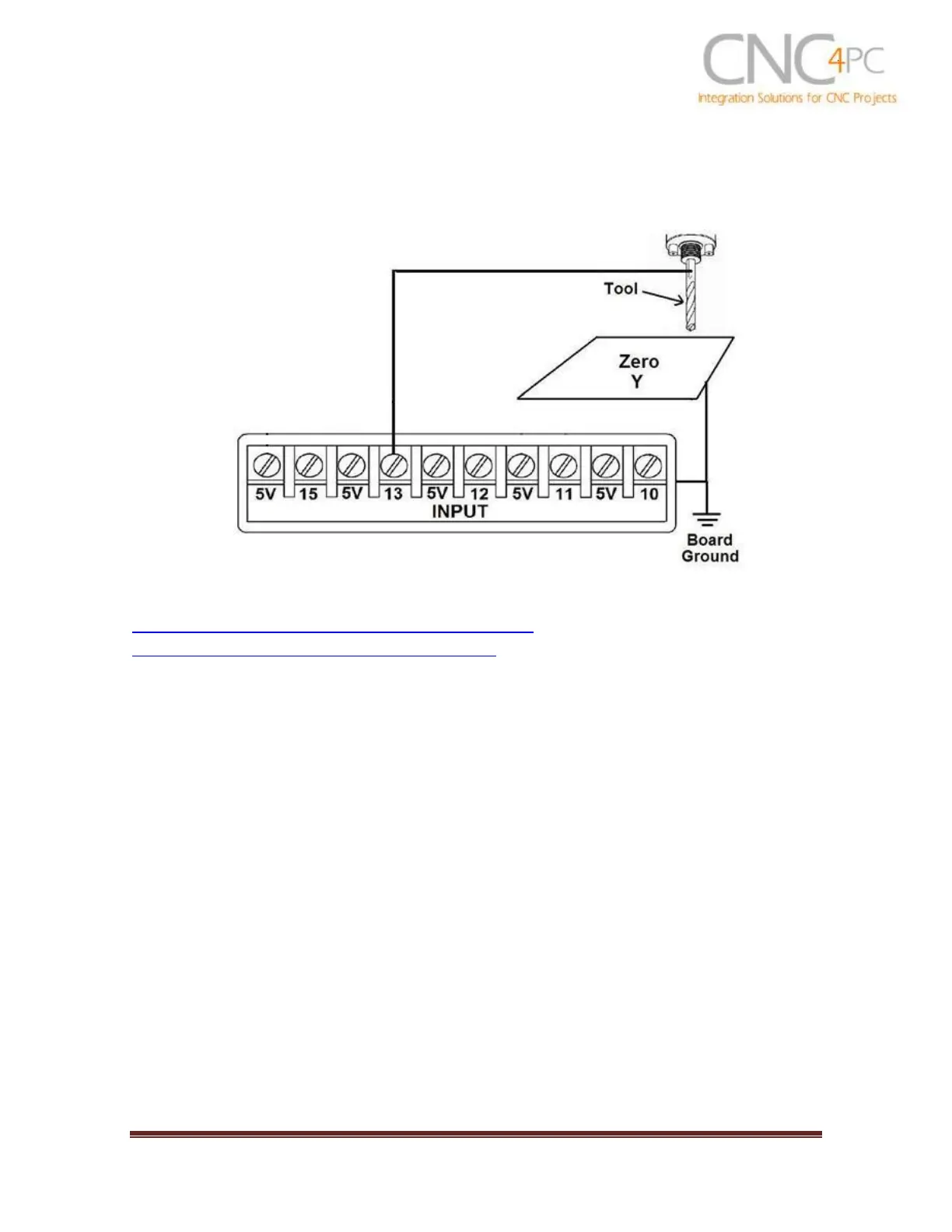

Fig. 12 Wiring diagram to do an “Auto Tool Zero”
http://cnc4pc.com/Tech_Docs/E_STOP_N_EN_Wiring.pdf
http://cnc4pc.com/Tech_Docs/E_STOP_N_SCHP.pdf
8. Troubleshooting.
