CNC4PC C11G - Wiring Diagrams; Connecting Switches or Push Buttons

C11G (Rev. 8.2) User Manual
Revision: 01/27/2010 http://cnc4pc.com/TechDocs/C11GR8_2_User_Manual.pdf 12/21
7. Wiring diagrams
While this board supports only TTL +5VDC signals, different kind of sensors,
switches using different voltages can be connected using the diagrams that follow:
Note: The below wiring diagrams are an example, any input can be used for the connections.
Note. The bellow wiring diagrams require setting the inputs to use pull-down
resistor.
7.1 Connecting Switches or push button.

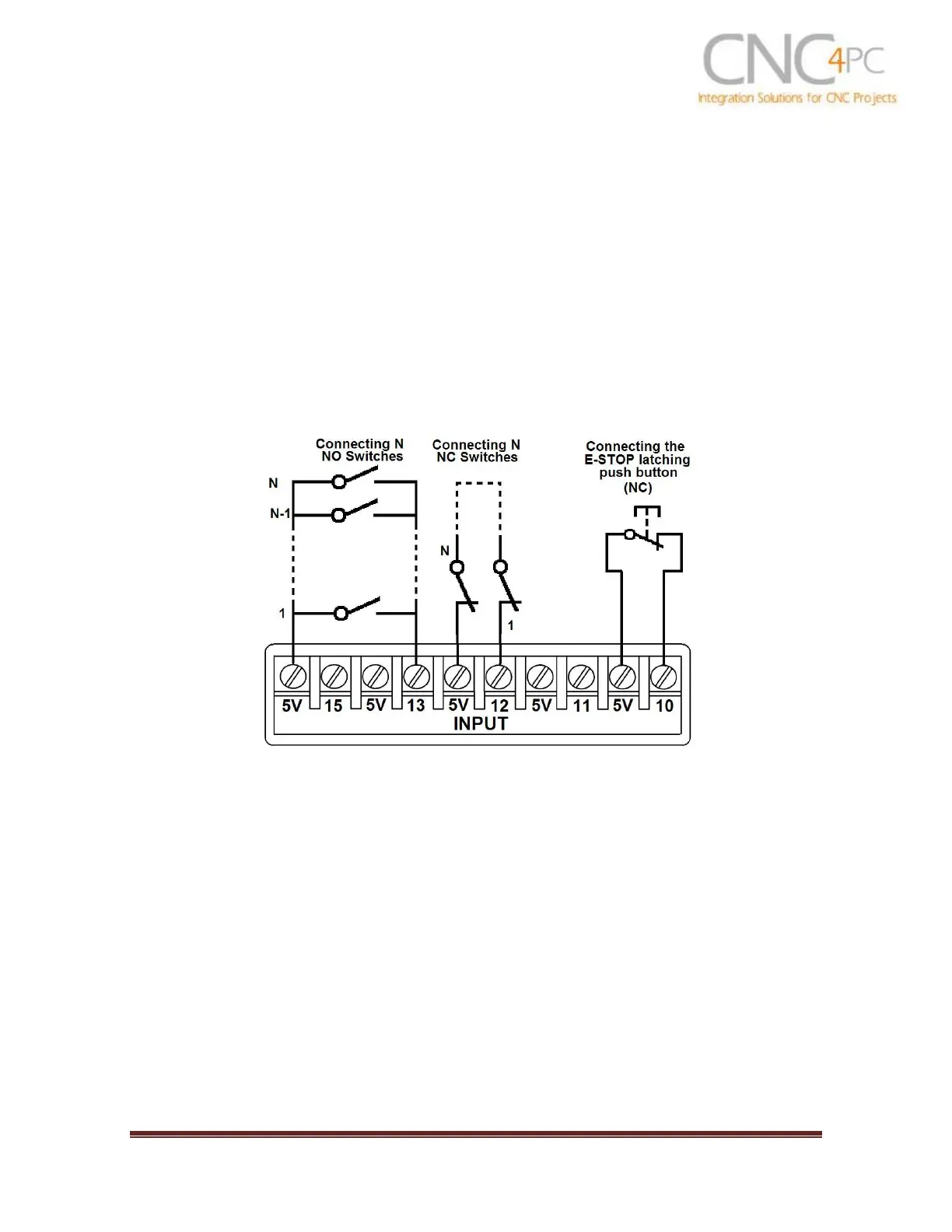

Fig. 7 Wiring diagram to connect switches.
