Coaster 801522 - Hardware Identification

801522
ITEM:
COASTERFURNITURE.COM
PAGE 3 OF 12
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.

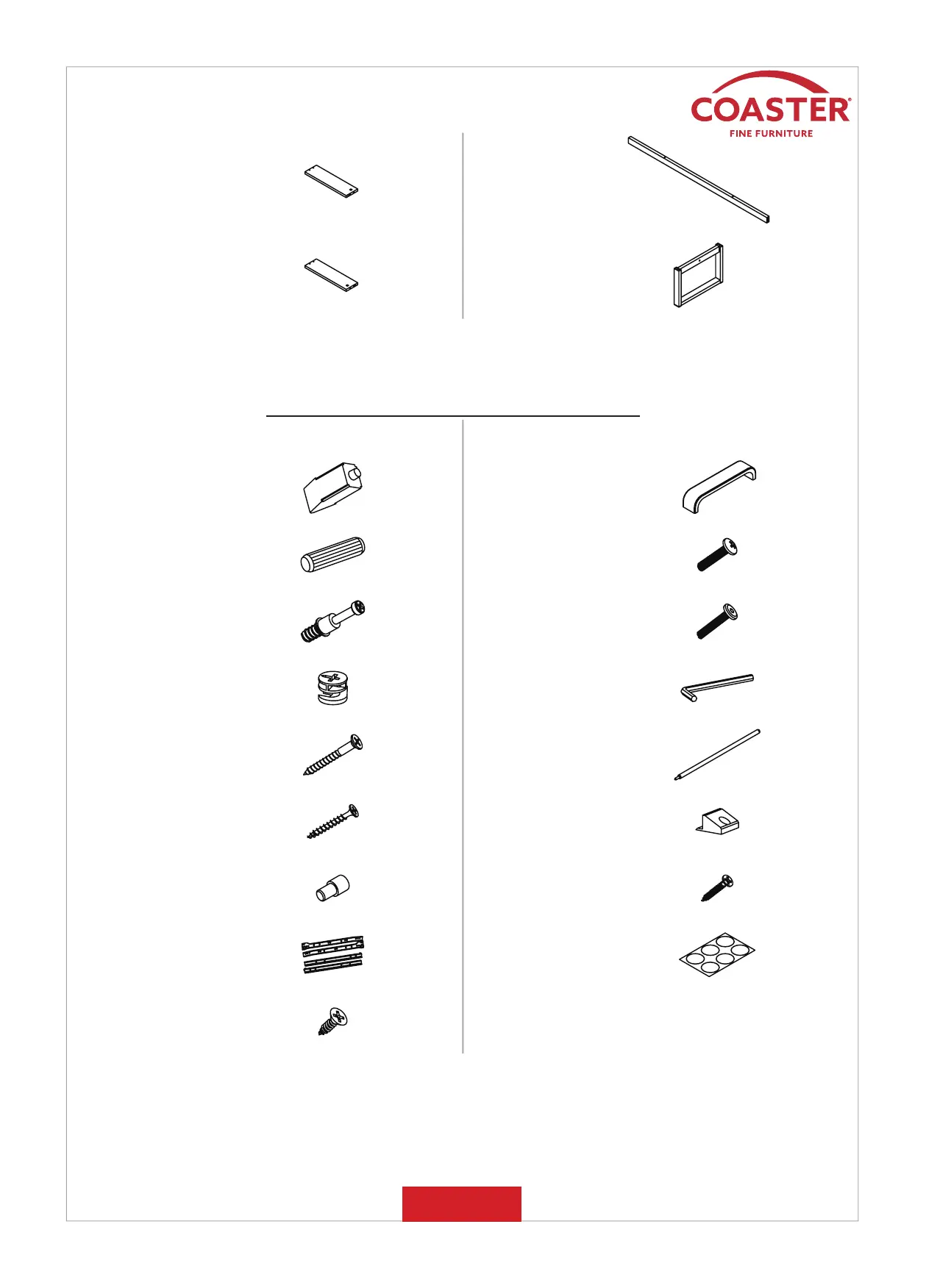

HARDWARE IDENTIFICATION
Z
NO DESCRIPTION FIGURE Q’TY
1 GLUE 40g
1 PC
2
WOODEN DOWEL
Ø 8x30mm
30 PCS
3
CAM BOLT
Ø 7x35.5mm SR
18 PCS
4
CAM LOCK
Ø15x12mm SR
18 PCS
5
LONG SCREW
Ø 4.5x42mm SR
8 PCS
6
SCREW
Ø 4.3x35mm SR
20 PCS
7
PIN
Ø 4.9x8mm SR
4 PCS
8
GLIDES
L = 350mm WHT
DR
DL
CL
CR
5 SET
9
SHORT SCREW
Ø 3x10mm SR
60 PCS
NO DESCRIPTION FIGURE Q’TY
10
HANDLE
L=106mm
5 PCS
11
HANDLE BOLT
Ø 4x23mm SR
10 PCS
12
BOLT
M 6x43mm SR
8 PCS
13
ALLEN WRENCH
4mm SR
1 PC
14
IRON BAR
Ø 9.5x352mm SR
4 PCS
15 FIXER
4 PCS
16
FIXER SCREW
Ø 3x19mm SR
4 PCS
17
STICKER
Ø 20mm
3 PCS
Z8,Z10,Z14 not included in blister packaging.
Q
SMALL LEFT
DRAWER SIDE
PANEL
3 PCS
R
SMALL RIGHT
DRAWER SIDE
PANEL
3 PCS
S CROSS BAR 1 PC
T FOOT 2 PCS
