12 • Important: Always read and follow operating instructions.
NOTE: Use Robo-Arm
®
(if equipped) to help push tire
bead into the drop center.

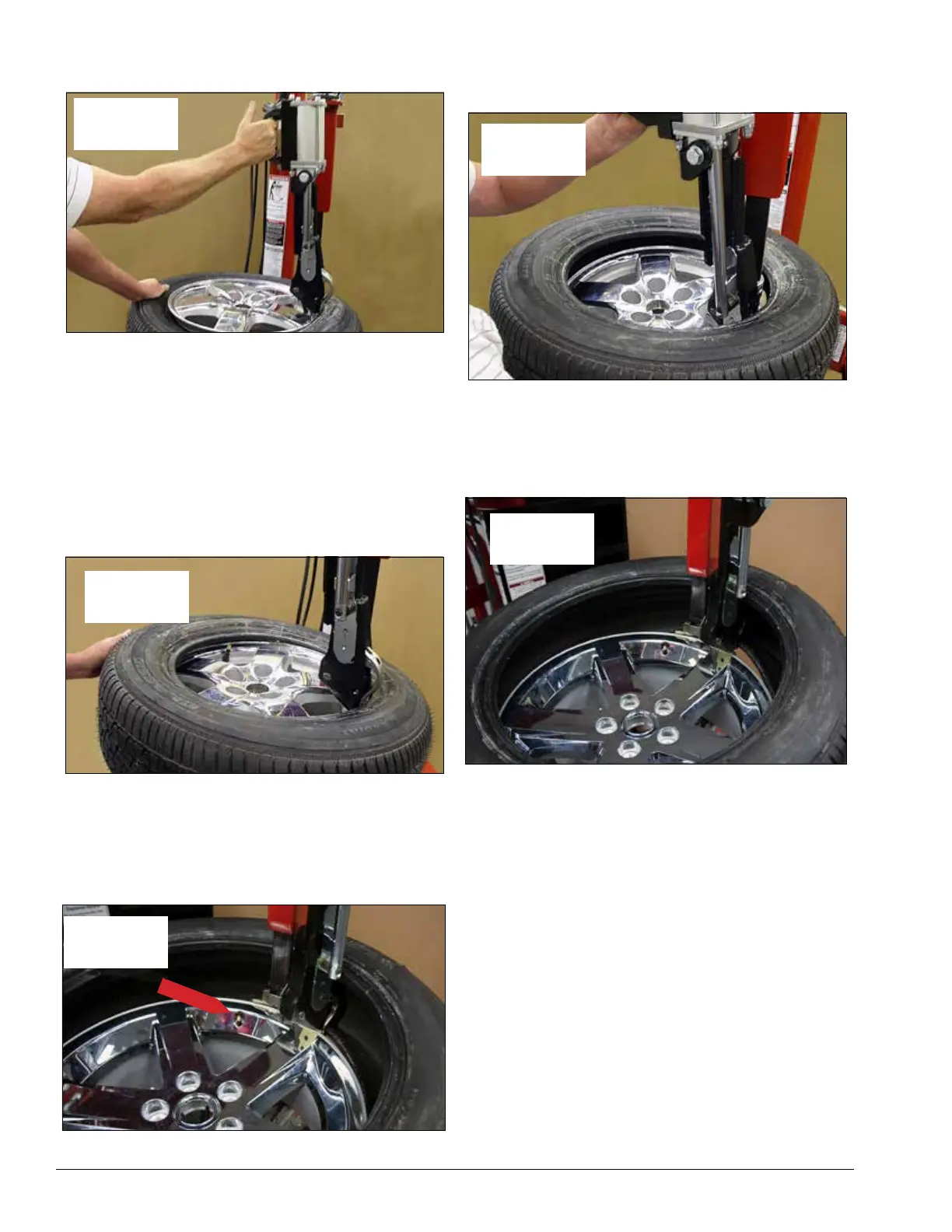

Figure 51 - Leverless Tool Hooked Under Tire Bead
8. Push leverless bead lifter control up, retracting
leverless tool hook.
Important: Do not rotate the TPMS sensor past the
leverless tool, when the leverless tool is extended
down!
9. Depress the rotation pedal to rotate wheel. The
leverless bead lifter demount tool will guide the bead up
and over the edge of the wheel. Continue rotation until
the upper bead is demounted.
Figure 52 - Demount Upper Tire Bead
10. Next, position valve stem behind leverless bead
lifter tool to prevent damage to TPMS (Tire Pressure
Monitoring System) sensor. Push control handle down
to lower the leverless bead lifter tool hook under lower
tire bead.
Figure 53 - Bead Lifter Tool Hooked Under Lower Tire Bead
11. While holding tire up in the drop center, lift the
tire to hook lower bead on the leverless tool hook. Push
the control handle up to lift bead over rim (figure 54).
Figure 54 - Push Control Handle Up To Lift Bead Over Rim
12. Depress the rotation pedal to rotate wheel. The
leverless bead lifter tool will guide the bead up and over
the edge of the wheel. Continue rotation until the lower
bead is demounted.
Figure 55 - Demount Lower Tire Bead
Important: Never rotate counter-clockwise with the
bead lifted!
NOTE: During lower bead demount, if tire slips on
wheel, use a wheel weight scraper to apply slight
upward pressure, while rotating clockwise.
