Important: Always read and follow operating instructions. • 21

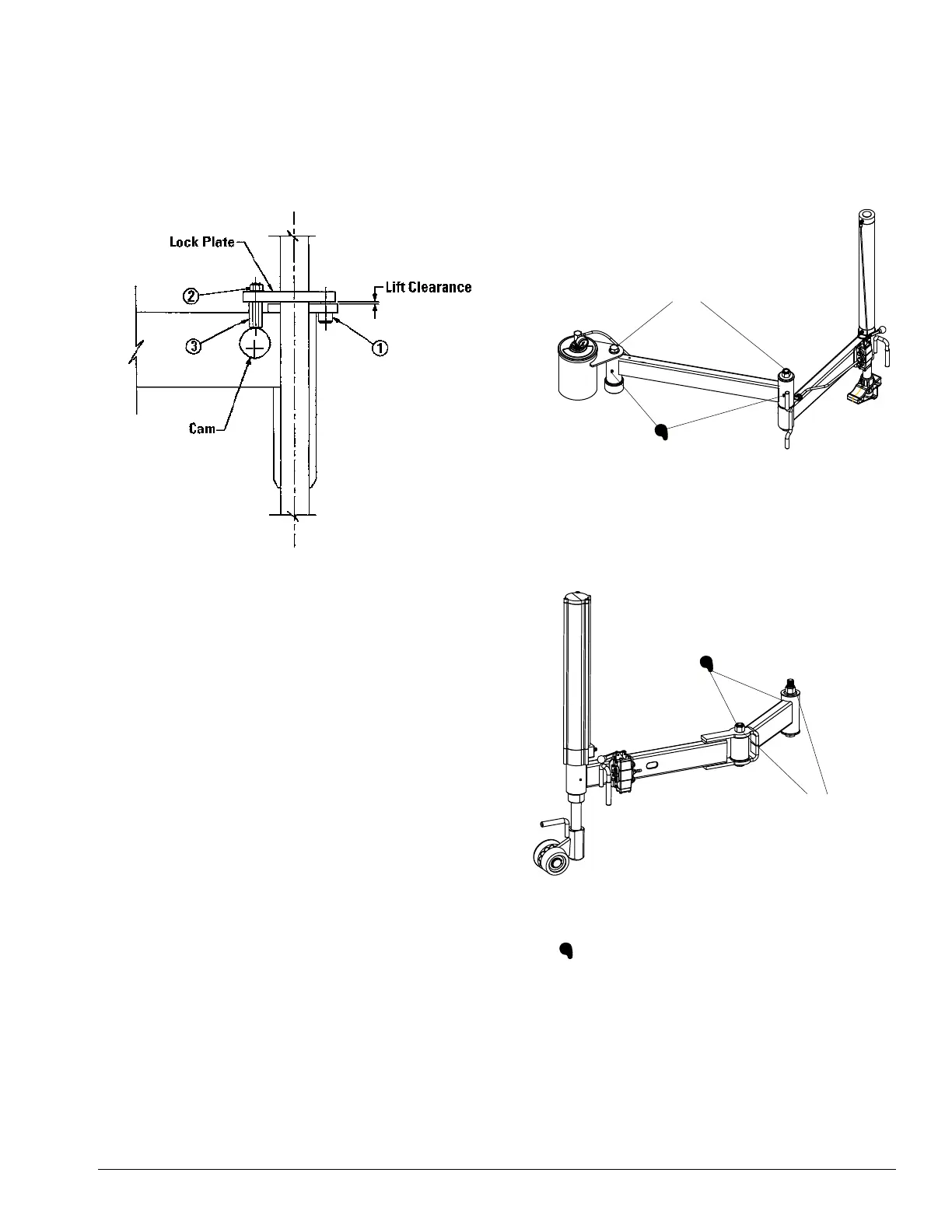

Duckhead (Mount/Demount Tool)
Adjustment
To Adjust Tool Head Lift
Shoulder screw (ref.1) sets the tool head lift for
metal duckhead mount/demount tools – no adjust-
ment required. Place 3 Shims 85606345 on screw if
using a plastic duckhead mount/demount tool.
To Adjust Lock Tightness
With lock handle unlocked, loosen jam nut (ref. 2) and
adjust pin (ref. 3) until a slight firmness is obtained,
then tighten jam nut and check. Also recheck tool
head lift at this time.
Robo-Arm
®
Helper Device Maintenance
1. Grease helper arms to maintain smooth rotation.
Grease fittings have been provided at the pivot joints.
2. Check bolt torque periodically at pivot joints.
Proper torque is 240 ft. lbs.
Robo-Arm Helper Device
RoboRoller Powered Assist
APPLY GREASE TO THESE LOCATIONS
Grease Fittings
Grease Fittings
Maintain Bolt Torque
at 240 ft. lbs.
Maintain Bolt Torque
at 240 ft. lbs.
