Equipment and accessories
29
Impact on radio operation
The external equipment can have a built-in PTT button, speaker and
microphone. Thus a connection has per default the following impact on
the radio operation:
• If a speaker or earpiece is built into the detected external equipment,
the sound device of the external equipment is used, and the internal
radio speaker is disabled.
• The external accessory microphone is selected as audio input device,
when the external PTT button is pressed. The transceiver microphone
is used as audio input device when the transceiver PTT button is
pressed.
• This behaviour can be changed in the service tool.

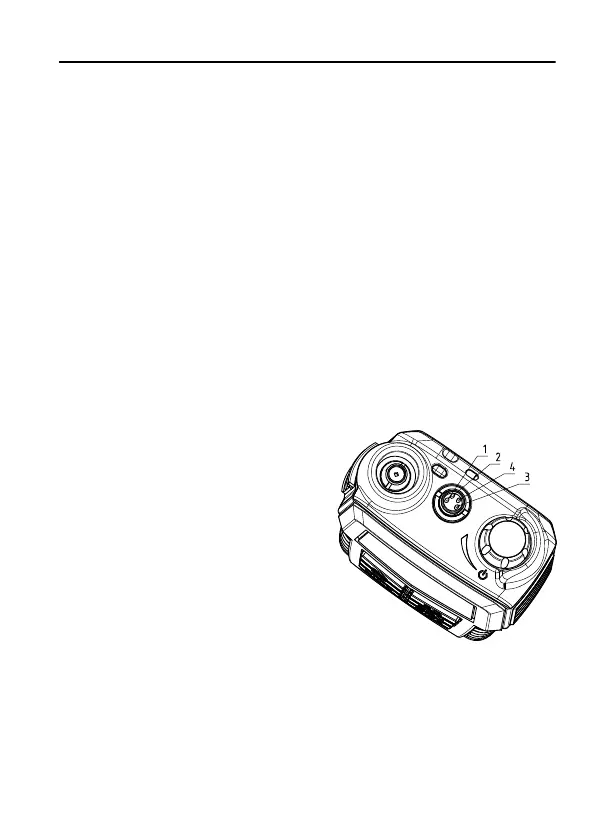

Accessorie connector
Pin 1. Loudspeaker,
minimum 8 ohm impedance.
Pin 2. Accessory power,
3.5V maximum 13mA.
Pin 3. Microphone input,
Ri = 2.2kohm, 3V phantom power.
Pin 4. GND.
